Installing Damper For Armrest On Centre Console

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

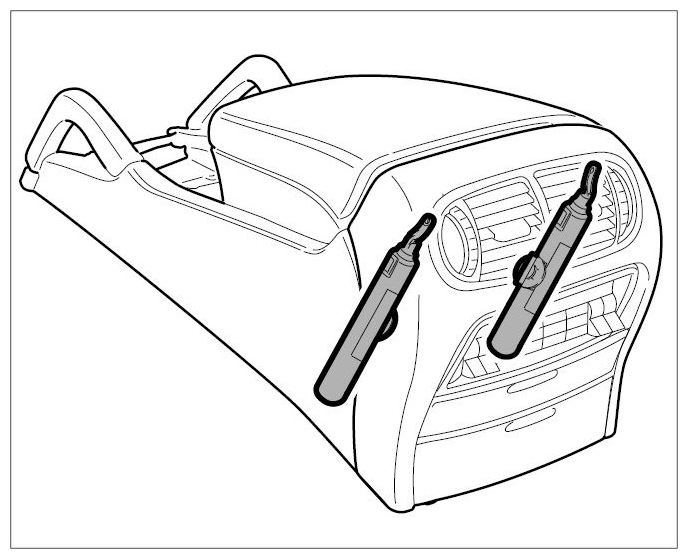

Fig 1: Identifying Damper For Armrest On Centre Console

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position damper -1- (-Arrow G- ) and turn it so that it locks into position -Arrow F- .

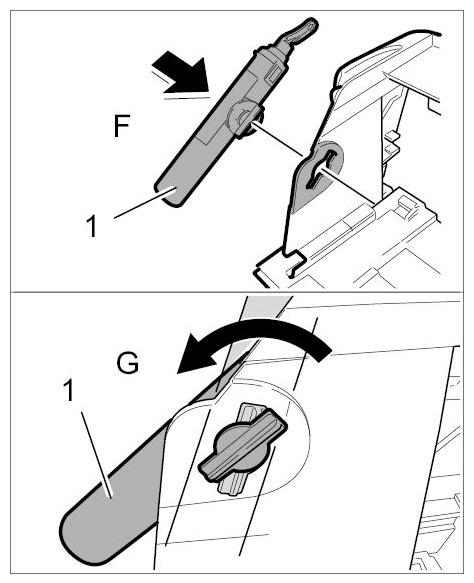

Fig 2: Inserting Damper On Centre Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position securing frame.
1. 2.1. Position securing frame at the guide tabs -Arrow E- and swivel it downwards and into place -Arrow D- .

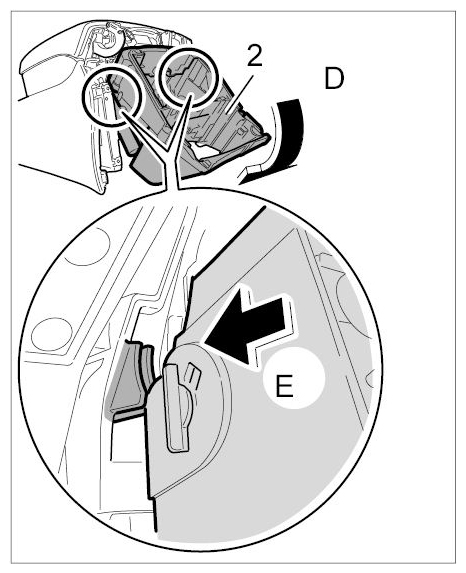

  Fig 3: Positioning Securing Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

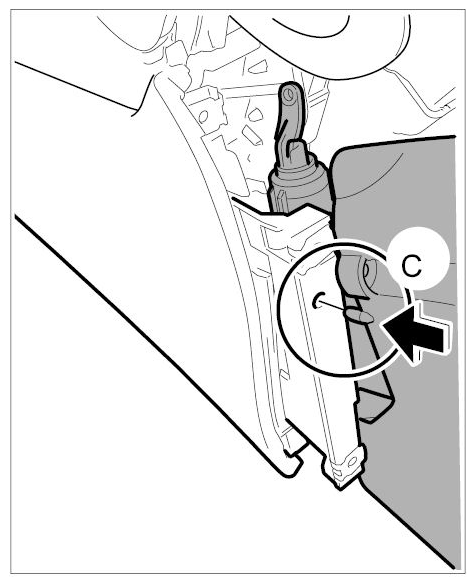

2. 2.2. Insert the locating pins on both sides of the securing frame into the bores on the centre console -Arrow C- .

  Fig 4: Positioning Securing Frame Pins
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screws -3- and tighten to the specified tightening torque -Arrow A- . → Tightening torque: 1.4 Nm (1.0 ft lbs.)+/-0.5 Nm (+/-0.5 ft lbs.)

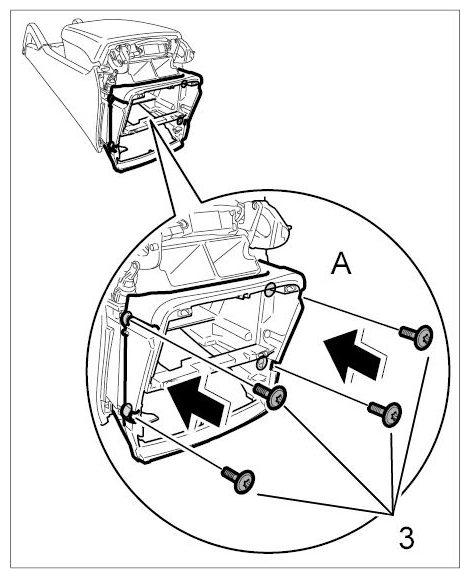

Fig 5: Screwing In Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open oddments tray -Arrow A- .

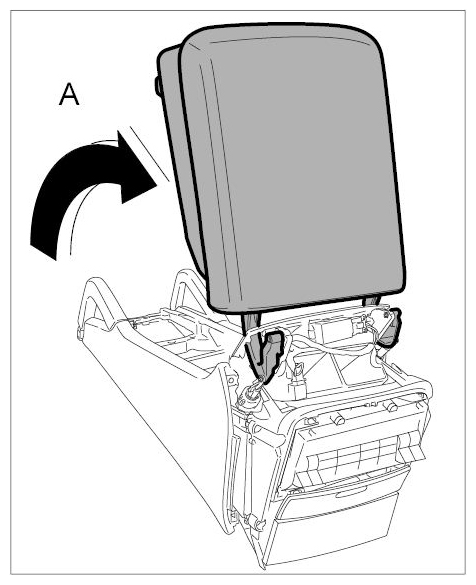

Fig 6: Opening Oddments Tray
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hook in both dampers -3- (-Arrow C- ).

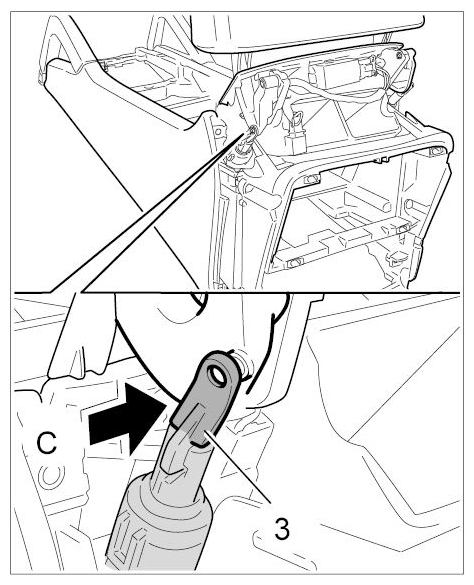

Fig 7: Locating Dampers Hooking
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in safety clip -4- on both dampers -Arrow B- .

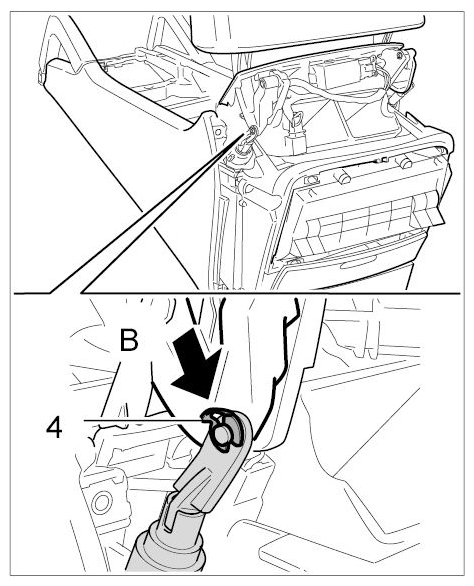

Fig 8: Clipping In Safety Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close oddments tray -Arrow A- .

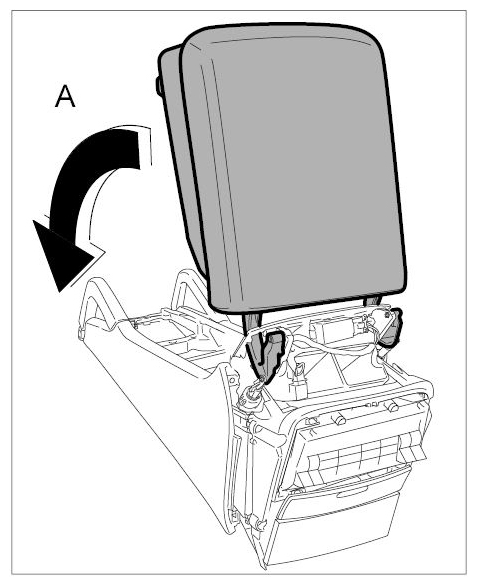

Fig 9: Closing Oddments Tray
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
