Removing Cover For Oddments Tray Light

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

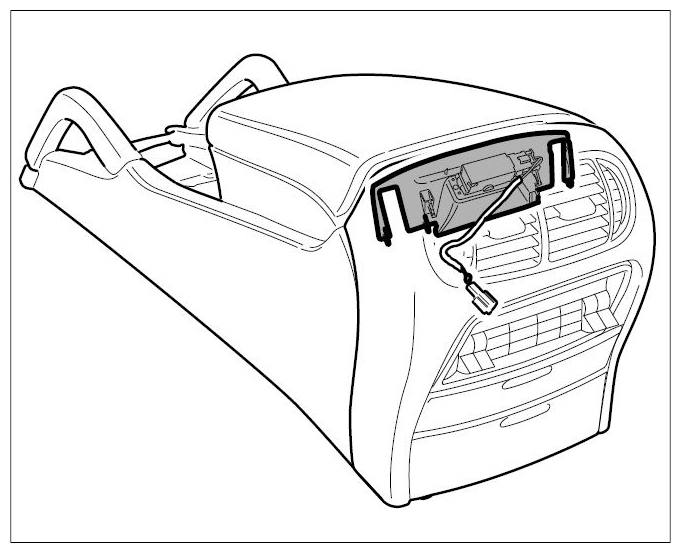

Fig 1: Identifying Oddments Tray Light Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

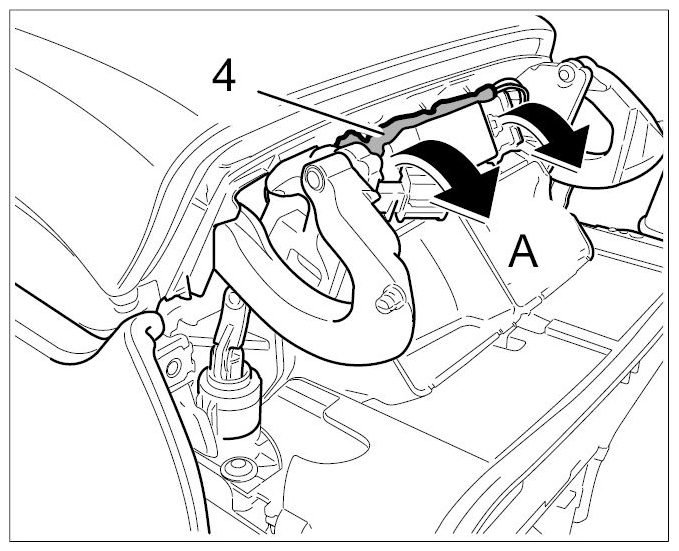

Release wire harness -Arrow A- .

Fig 2: Releasing Oddments Tray Light Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

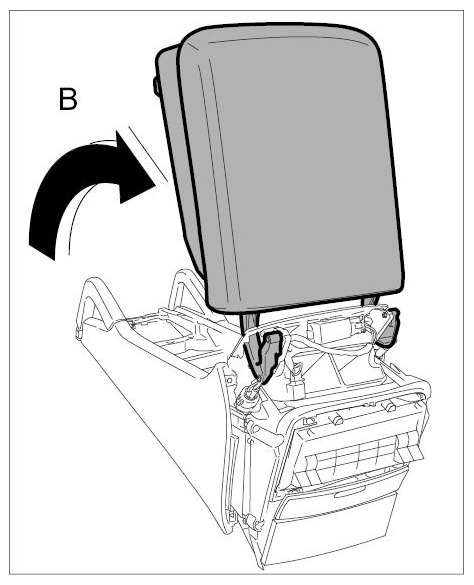

Open oddments tray -Arrow B- .

Fig 3: Opening Oddments Tray
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip cover.

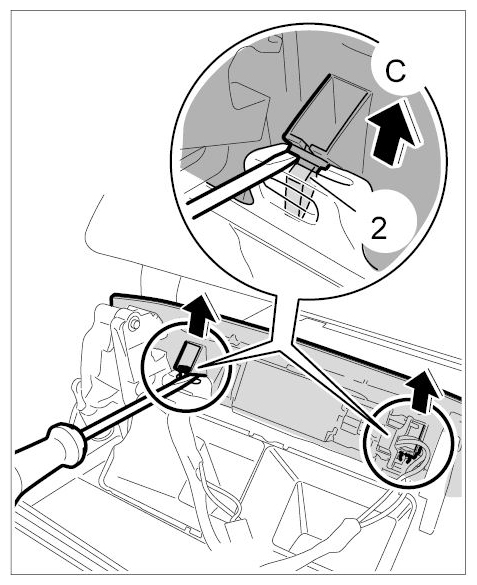

1. 3.1. Insert a screwdriver at the clip connections -2- and lever out the cover -Arrow C- .

  Fig 4: Unclipping Oddments Tray Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cover.

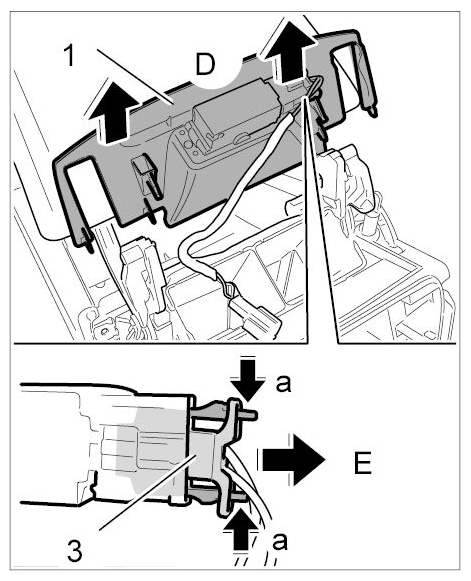

1. 4.1. Remove cover -Arrow D- and release electric plug connection -3- (-Arrow E- ).

  Fig 5: Release Electric Plug Connection Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
