Installing Cover For Oddments Tray Light

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

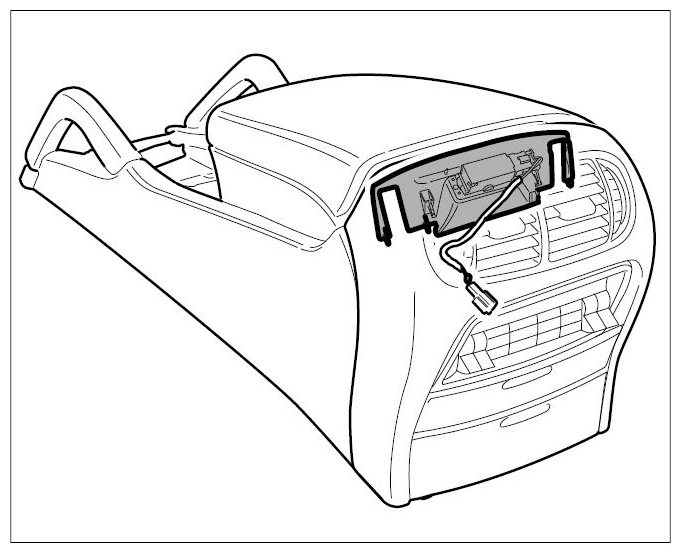

Fig 1: Identifying Oddments Tray Light Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position cover.

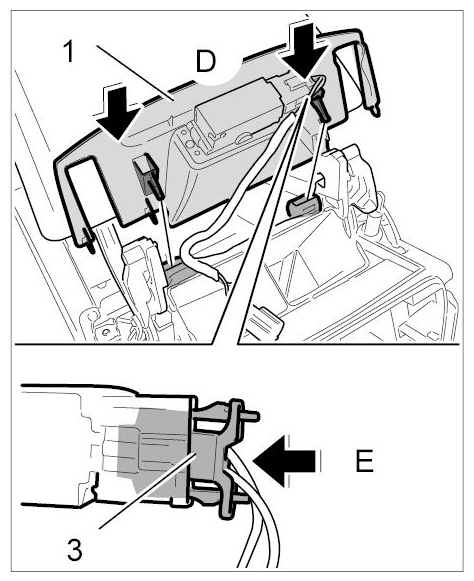

1. 1.1. Connect plug connection -Arrow E- and place cover in position -Arrow D- .

  Fig 2: Positioning Oddments Tray Light Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

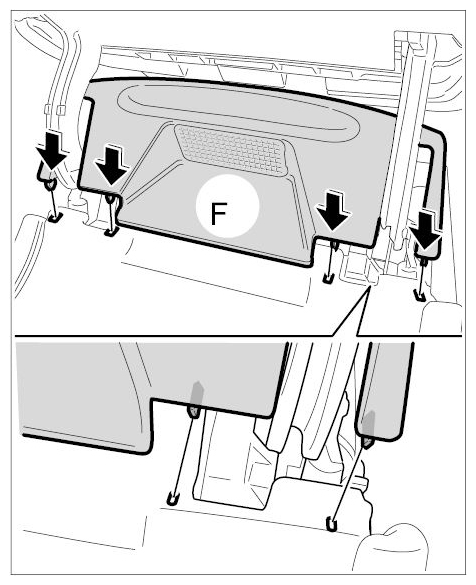

2. 1.2. Insert the tabs of the cover into the cut-outs in the trim panel -Arrows F- .

  Fig 3: Inserting Cover Tabs
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engage clips.

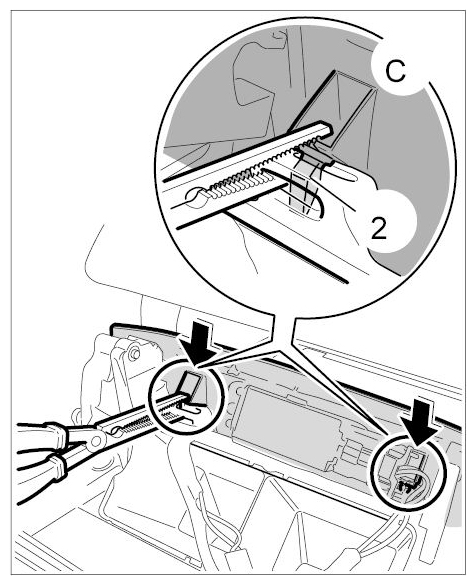

1. 2.1. Use a pointed-nose pliers to grip the locking tab and trim panel and press the locking tab into the clip -2- (-Arrow C- ).

  Fig 4: Engaging Cover Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

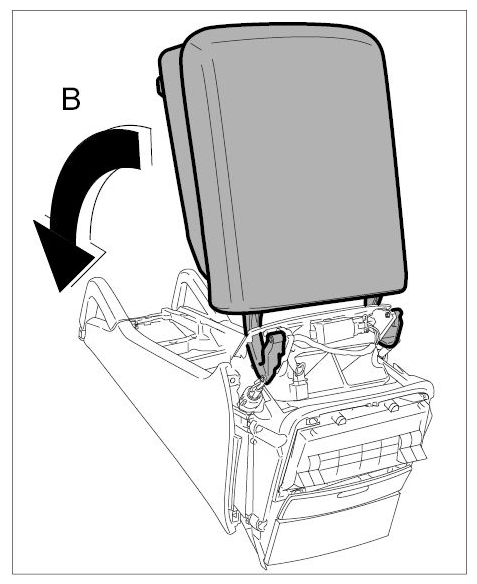

Close oddments tray -Arrow B- .

Fig 5: Closing Oddments Tray
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

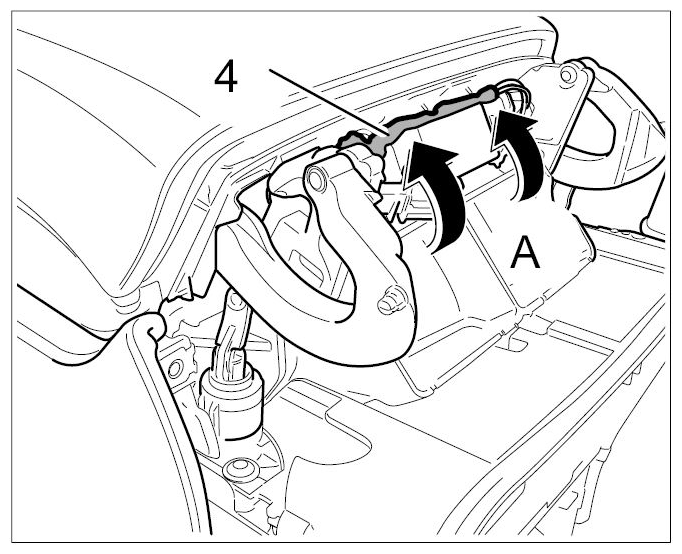

Lay the wire harness -4- (-Arrow A- ).

Fig 6: Laying Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
