Installing Armrest For Centre Console

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

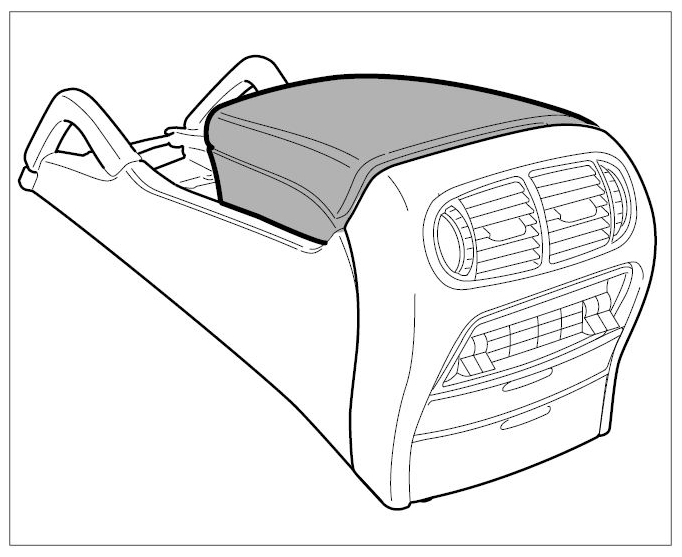

Fig 1: Identifying Centre Console Armrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Place armrest in position.

Fig 2: Placing Armrest In Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

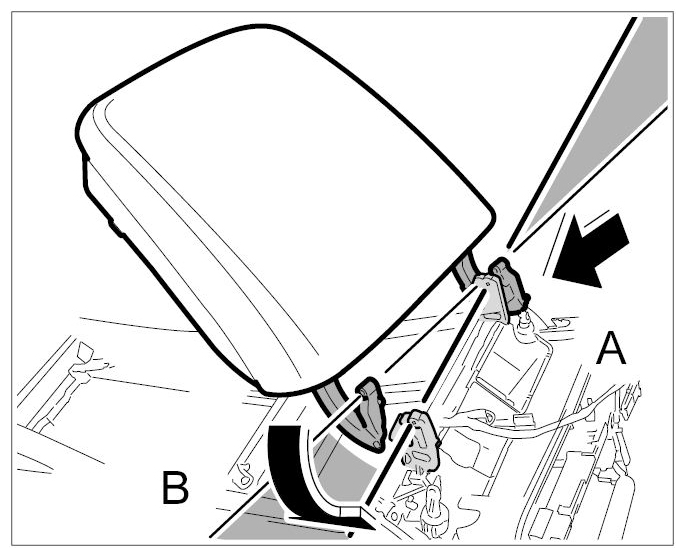

Fig 3: Placing Armrest In Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Tilt the pivot axis of the armrest -1- in the opposite direction to the pivot axis of the mount -2- and position armrest laterally on the mount -Arrow A- .
2. 1.2. Swivel armrest downward -Arrow B- .
