Removing Glove Compartment

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

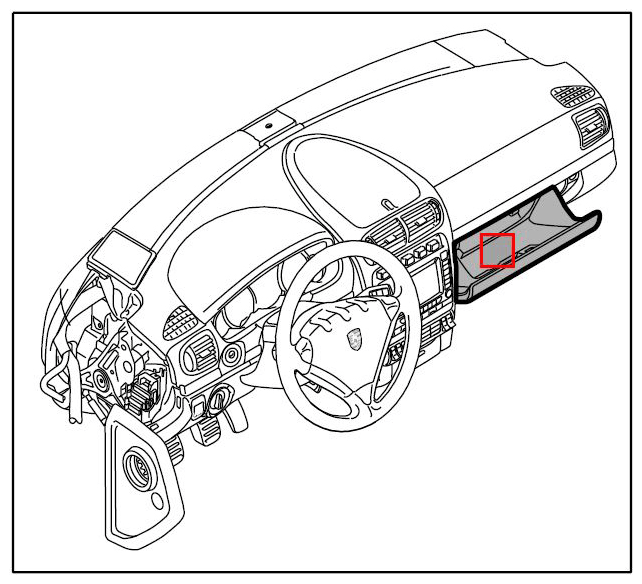

Fig 1: Identifying Glove Compartment

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove glove compartment.

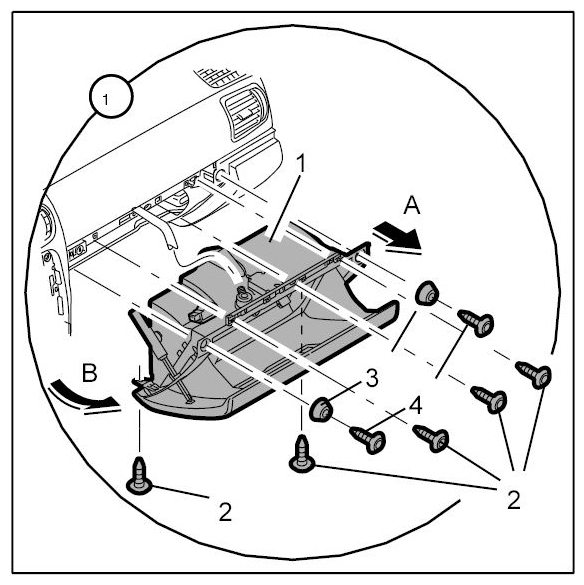

1. 1.1. Undo fastening screws -2- .

  Fig 2: Removing Glove Compartment
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Open glove compartment -1- , unscrew the fastening screws -4- and remove rubber buffer -3- .

  Fig 3: Removing Rubber Buffer
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Carefully pull out glove compartment -1- (-arrow A- ) until the plug -5- can be removed.

  Fig 4: Pulling Plug From Glove Compartment
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 5: Pulling Glove Compartment
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

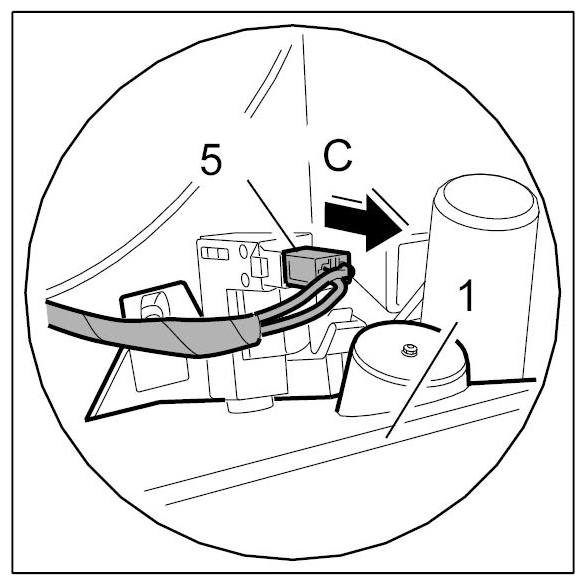

4. 1.4. Remove -5- plug -arrow C- , swivel out glove compartment -1- in a downward direction -arrow B- and remove it towards the rear -arrow A- .

  Fig 6: Pulling Plug From Glove Compartment
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 7: Pulling Glove Compartment
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect plug and hose.

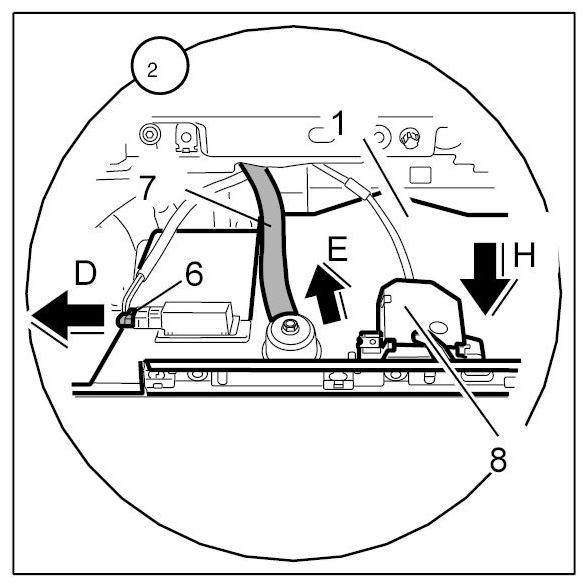

1. 2.1. Release -6- and pull off -arrow D- connector.

  Fig 8: Removing Connector From Glove Compartment
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

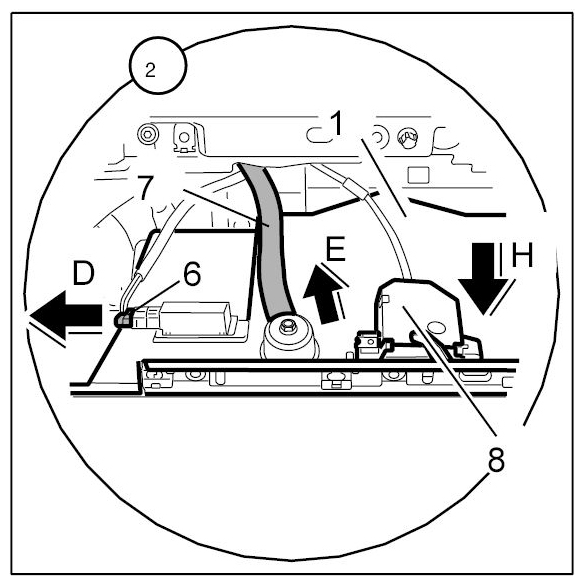

2. 2.2. Pull off hose -7- for glove box air-conditioning system -arrow E- .

  Fig 9: Pulling Off Glove Box Air-Conditioning System Hose
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

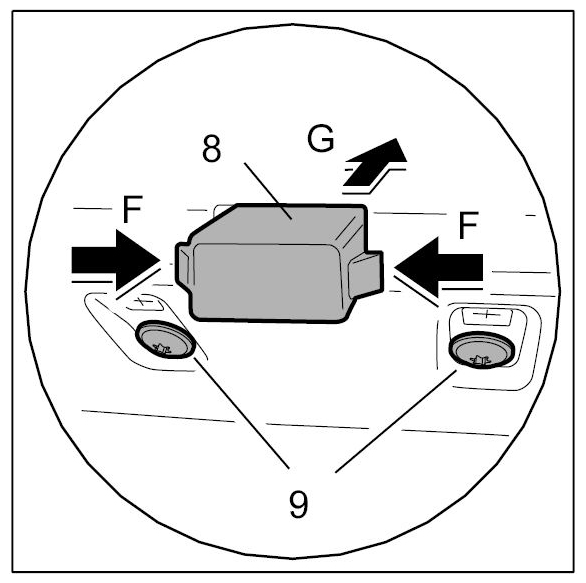

3. 2.3. Unscrew fastening screws -9- on lock catch bolt -8- .

  Fig 10: Removing Lock Catch Bolt Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 2.4. Press in latch striker on lock catch bolt -8- -arrows F- and push it through to the rear -arrow G- .

  Fig 11: Pressing Latch Striker On Lock Catch Bolt
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. 2.5. Pull out glove compartment -1- to the rear -arrow H- .

  Fig 12: Pulling Out Glove Compartment
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
