Installing Glove Compartment

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

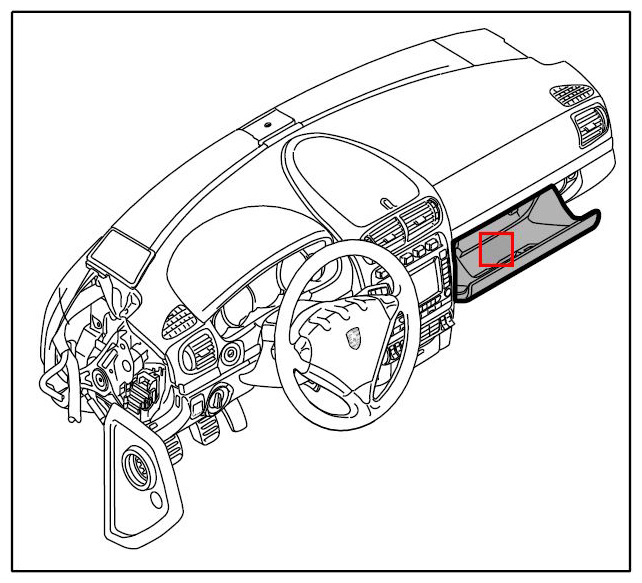

Fig 1: Identifying Glove Compartment

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connect plug and hose.
1. 1.1. Insert glove compartment -1- -arrow A- .

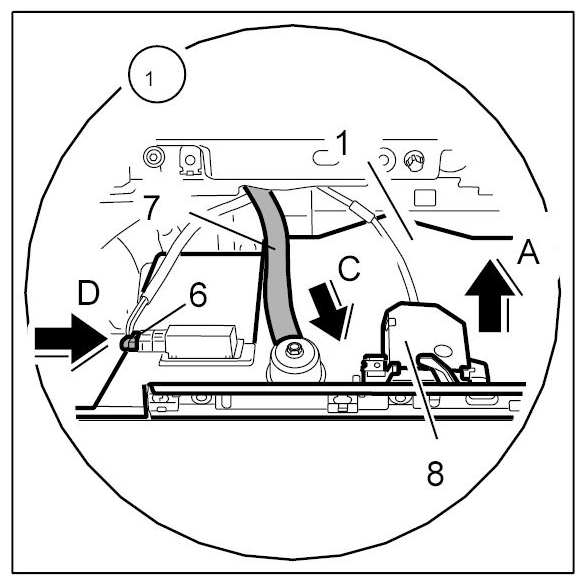

  Fig 2: Inserting Glove Compartment
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Push through lock catch bolt -8- from the rear -arrow B- .

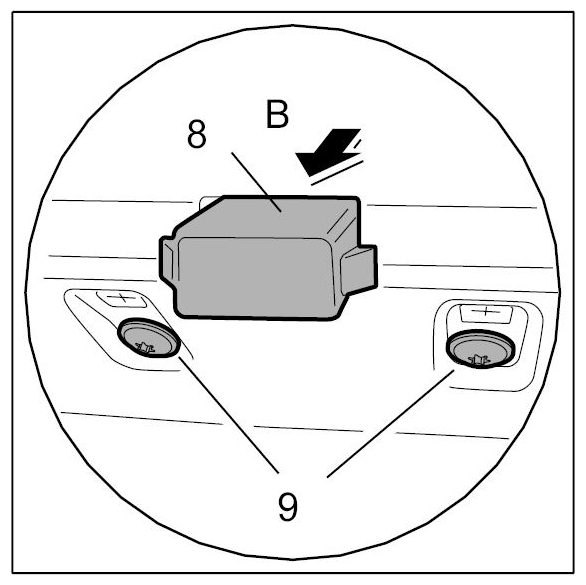

  Fig 3: Pushing Lock Catch Bolt
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Screw in fastening screws -9- on lock catch bolt -8- .

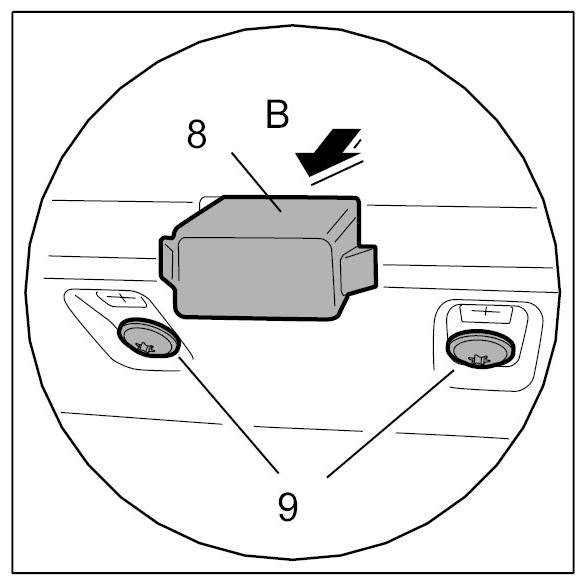

  Fig 4: Identifying Lock Catch Bolt Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 1.4. Push on the plug -6- until the locking tabs engage audibly -arrow D- .

  Fig 5: Engaging Locking Tabs
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. 1.5. Push on hose -7- for glove box air-conditioning system -arrow C- .

  Fig 6: Pushing Glove Box Air-Conditioning System Hose
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install glove compartment.
1. 2.1. Swivel in glove compartment -1- in a downward direction -arrow F- and push it in carefully -arrow G- , until the plug -5- can be connected.

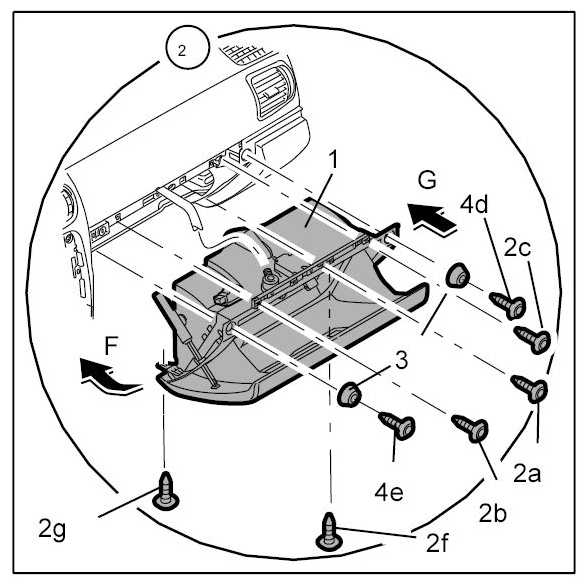

  Fig 7: Installing Glove Compartment
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 8: Connecting Glove Compartment Plug
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Connect -5- plug -arrow E- , until the locking tabs engage audibly and then push in glove compartment -1- completely -arrow G- .

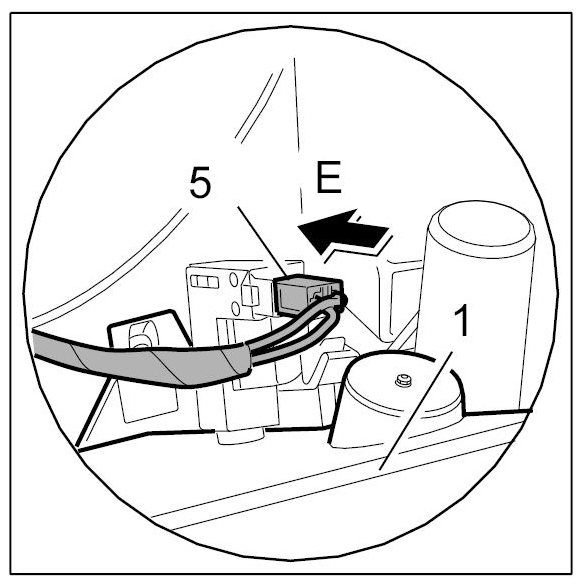

  Fig 9: Connecting Glove Compartment Plug
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 10: Pushing Glove Compartment
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Close glove compartment lid.
4. 2.4. Screw in fastening screws -2- in the sequence -2a to 2c- as shown and tighten to the specified tightening torque. → Tightening torque: 1.4 Nm (1.0 ft lbs.)+/-0.5 Nm (+/-0.5 ft lbs.)

  Fig 11: Installing Glove Compartment Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. 2.5. Open glove compartment lid.
6. 2.6. Insert rubber buffer -3- and screw in fastening screws -4- in the sequence shown -4d to 4e- and tighten to the specified tightening torque. → Tightening torque: 1.4 Nm (1.0 ft lbs.)+/-0.2 Nm (+/-0.2 ft lbs.)

  Fig 12: Identifying Rubber Buffer Fastening Screws Tightening Sequence
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. 2.7. Close glove compartment lid.
8. 2.8. Fastening screws -2f and 2g- must be screwed in until they just make contact.

  Fig 13: Closing Glove Compartment Lid
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. 2.9. Set gap for glove compartment lid by moving at the fastening points -2f and 2g- .

  Fig 14: Setting Glove Compartment Lid Gap
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. 2.10. Tighten fastening screws -2- in the sequence shown -2f and 2g- to the specified tightening torque. → Tightening torque: 1.4 Nm (1.0 ft lbs.)+/- 0.2 Nm (+/-0.2 ft lbs.)

  Fig 15: Identifying Glove Compartment Lid Fastening Screws Tightening Sequence
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
