Removing Cover For Bracket

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

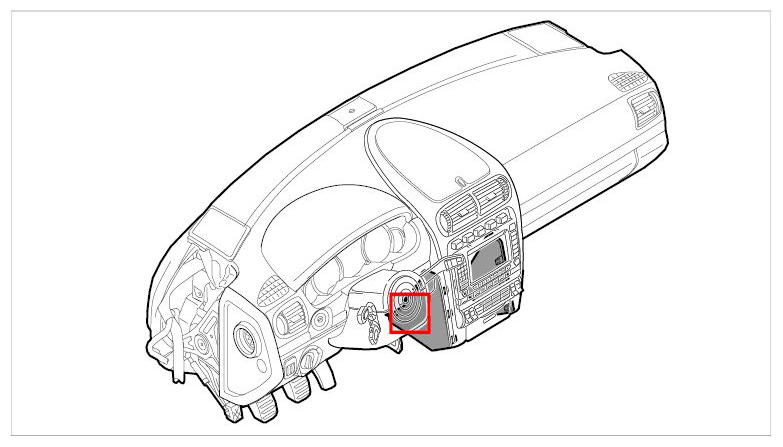

Fig 1: Identifying Installation Position Of Cover For Bracket

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclip cover for bracket -1- using a plastic wedge at the retaining clips -2- and swivel it out -arrow A- .

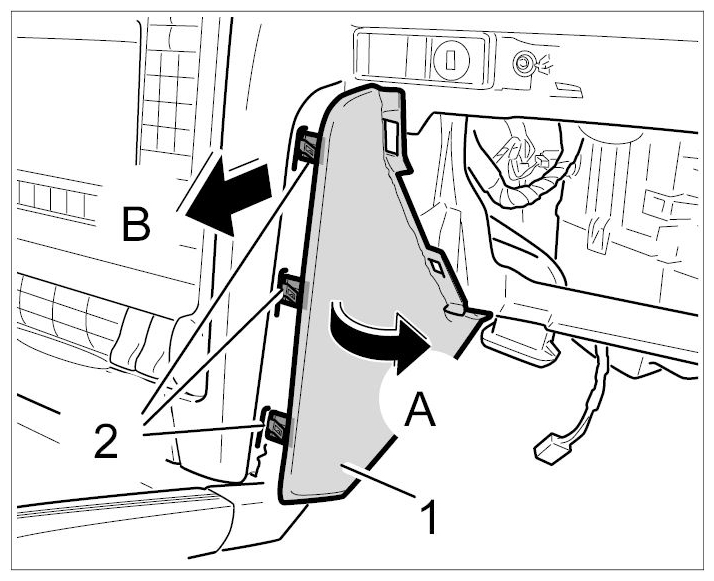

Fig 2: Removing Bracket Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cover for bracket -1- to the rear -arrow B- .
