Installing Cover For Bracket

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

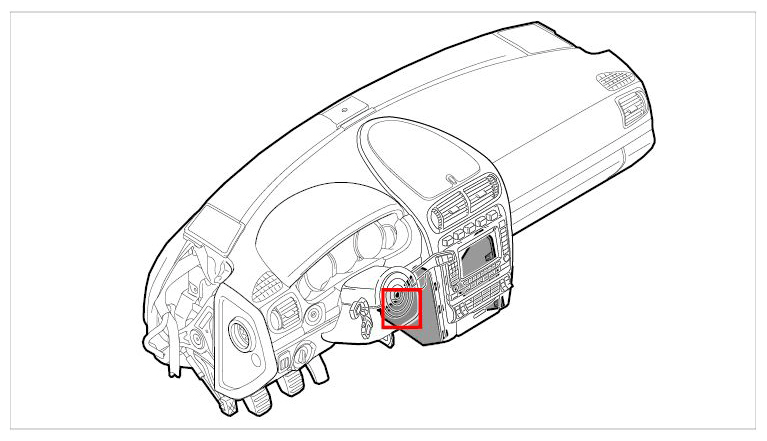

Fig 1: Identifying Installation Position Of Cover For Bracket

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert cover for bracket -1- at the front -arrow A- .

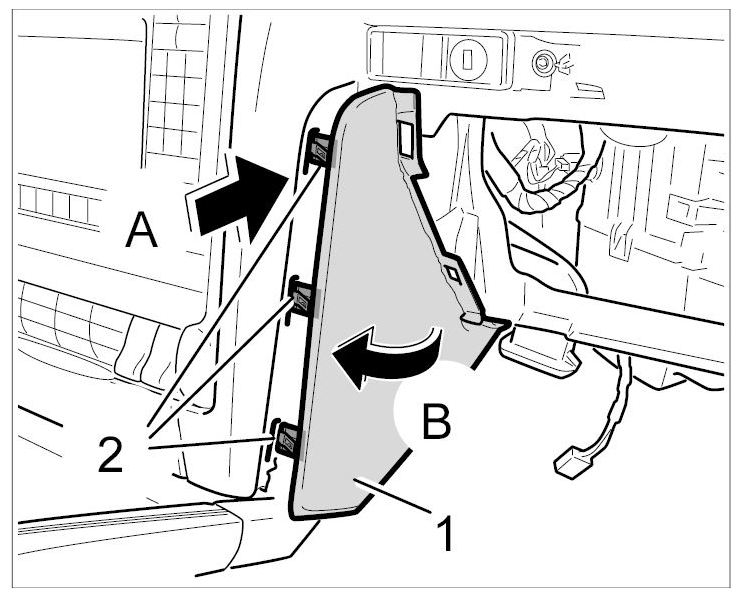

Fig 2: Installing Bracket Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Swivel cover for bracket -1- inward -arrow B- and press it in until the retaining clips -2- click into place.
