Removing Actuating Cable For Lock

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

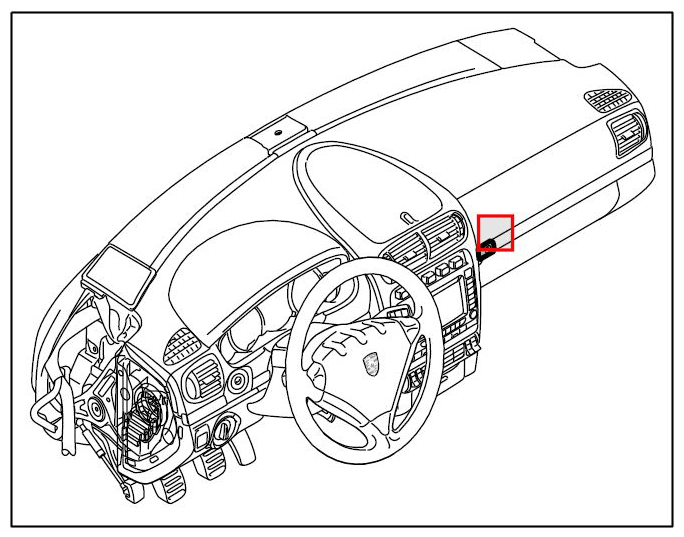

Fig 1: Identifying Actuating Cable For Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove glove compartment → Remove The Glove Compartment
Remove glove compartment lock. → Removing Lock, Release And Lock Cylinder For Glove Compartment
Remove actuating cable from lock.

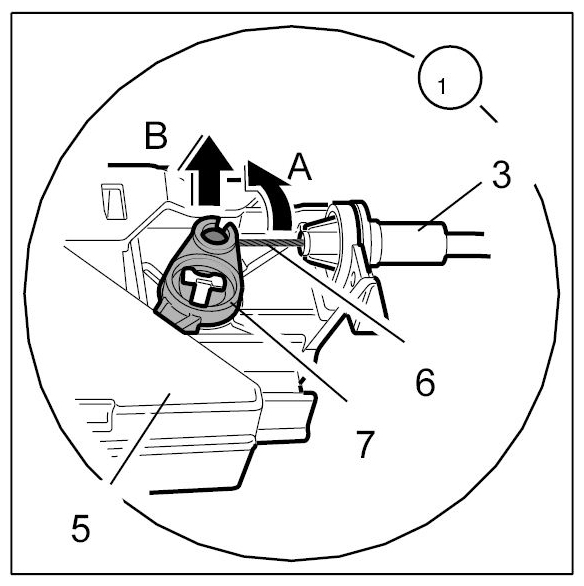

1. 3.1. Detach cable -6- from actuating lever -7- . To do this, swivel the cable by approx. 90° to the assembly opening of the actuating lever -Arrow A- and remove it in an upward direction (-Arrow B- ).

  Fig 2: Detaching Actuating Lever Cable
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

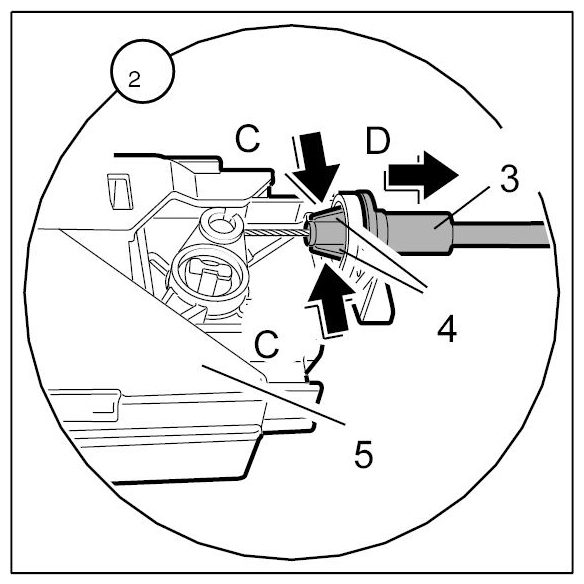

2. 3.2. Compress fixing clips of cable mounting -4- on lock -5- -Arrows C- and pull the cable mounting out of holder (-Arrow D- ). Remove actuating cable from lock.

  Fig 3: Removing Actuating Cable From Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

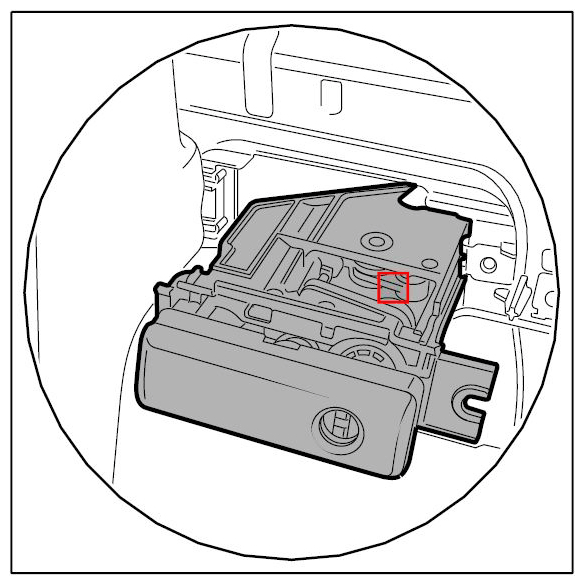

  Fig 4: Identifying Actuating Cable From Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove actuating cable from lock bolt.

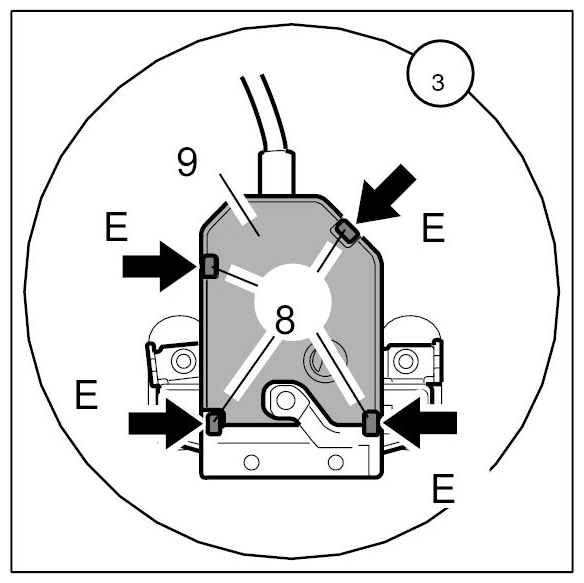

1. 4.1. Compress fastening clips -8- of cap -9- towards centre -arrows E- and remove cap.

  Fig 5: Identifying Actuating Cable Fastening Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

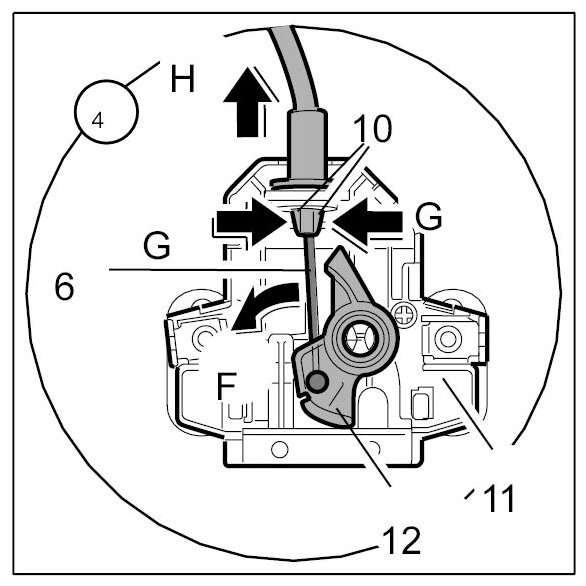

2. 4.2. Detach cable -6- from actuating lever -12- . To do this, swivel the cable by approx. 90° to the assembly opening of the actuating lever -arrow F- and remove it in an upward direction.

  Fig 6: Detaching Cable From Actuating Lever
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 4.3. Compress fastening clips of cable mounting -10- on lock bolt -11- -arrows G- and pull the mounting out of holder (-arrow H- ). Remove actuating cable on the lock catch bolt.

  Fig 7: Removing Actuating Cable On Lock Catch Bolt
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
