Installing Lock Cylinder For Lock

→ Do not take the ignition key out of the lock cylinder during removal and installation. Otherwise, the spring-loaded locking elements will spring out of the lock cylinder.

→ Do not take the ignition key out of the lock cylinder during removal and installation. Otherwise, the spring-loaded locking elements will spring out of the lock cylinder.

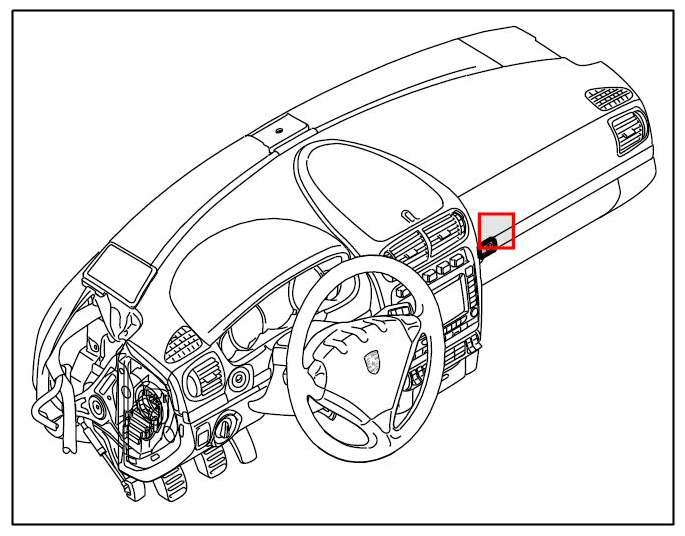

Fig 1: Identifying Lock Cylinder

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove transport case.

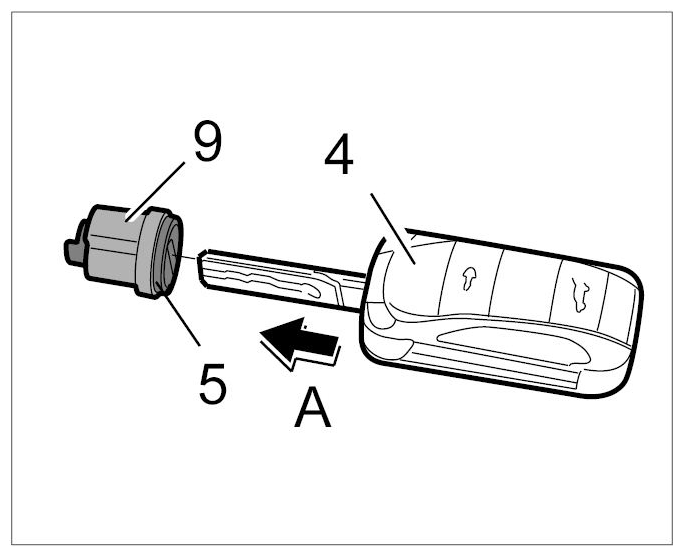

   1. 1.1. Fully insert ignition key -4-  into new lock cylinder -5-  (-arrow A-  ).
      Fig 2: Inserting Ignition Key Into Lock Cylinder

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

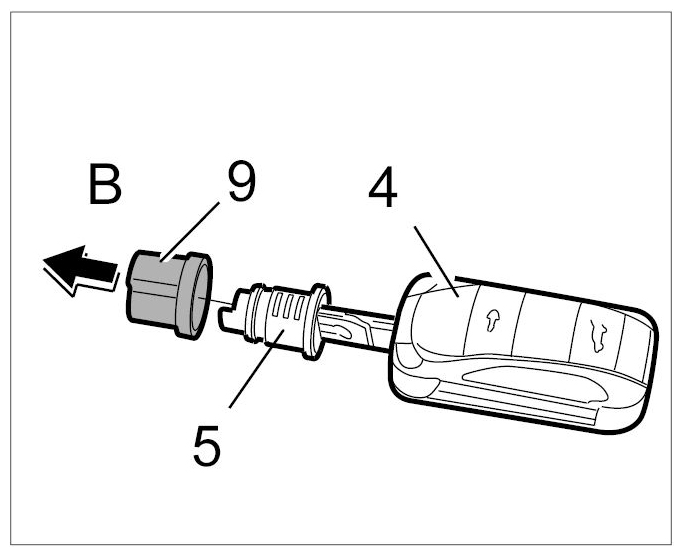

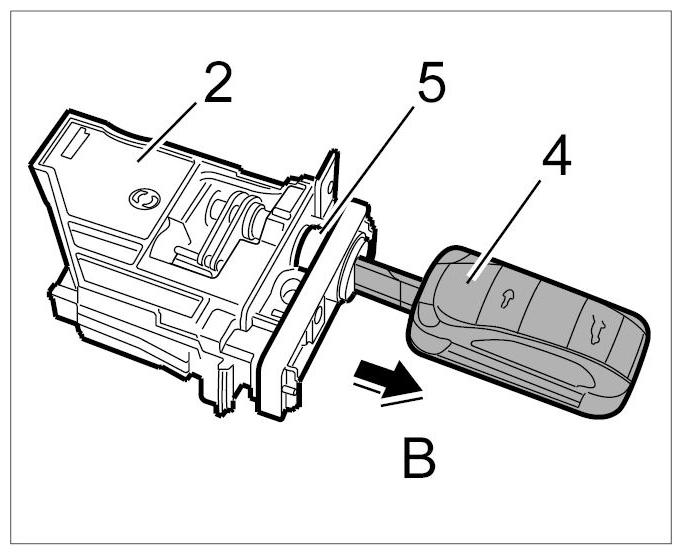

2. Remove transport case -9-  from lock cylinder (-arrow B-  ).
   Fig 3: Removing Transport Case From Lock Cylinder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Install lock cylinder.

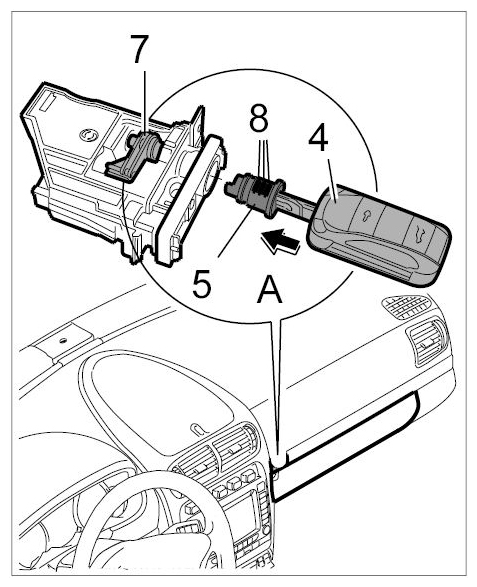

   1. 3.1. Turn actuating lever -7-  to the horizontal installation position.
      Fig 4: Installing Lock Cylinder

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

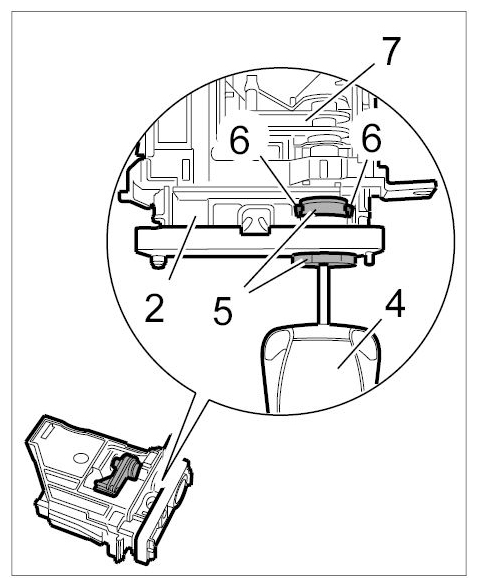

4. Insert lock cylinder -5-  together with ignition key -4-  into the lock (-arrow A-  ). The release lug of the lock cylinder must be pointing to the left.
   Fig 5: Inserting Lock Cylinder Together With Ignition Key

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Press lock cylinder -5-  into the lock -2-  until the retaining clips -6-  of the lock cylinder audibly engage.
   Fig 6: Pressing Lock Cylinder Into Lock

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Pull out ignition key -4-  from lock cylinder -5-  (-arrow B-  ).
   Fig 7: Pulling Out Ignition Key From Lock Cylinder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Install cover.

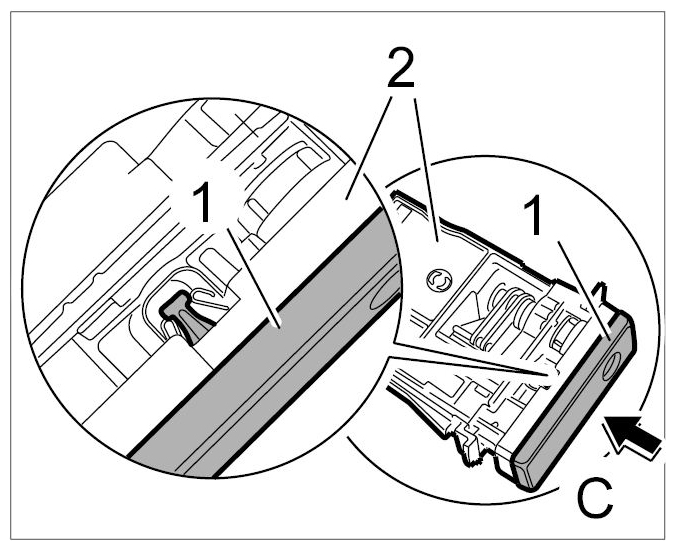

   1. 7.1. Position cover -1-  on the lock mounting -2-  and press in -arrow C-  until the retaining clip engages with an audible click.
      Fig 8: Engaging Retaining Clip Of Lock Mounting

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Install actuating cable on lock. → Installing Lock, Release And Lock Cylinder For Glove Compartment
9. Install glove compartment lock. → Installing Lock, Release And Lock Cylinder For Glove Compartment
10. Install glove compartment. → Install The Glove Compartment
