Installing Glove Compartment Lock

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

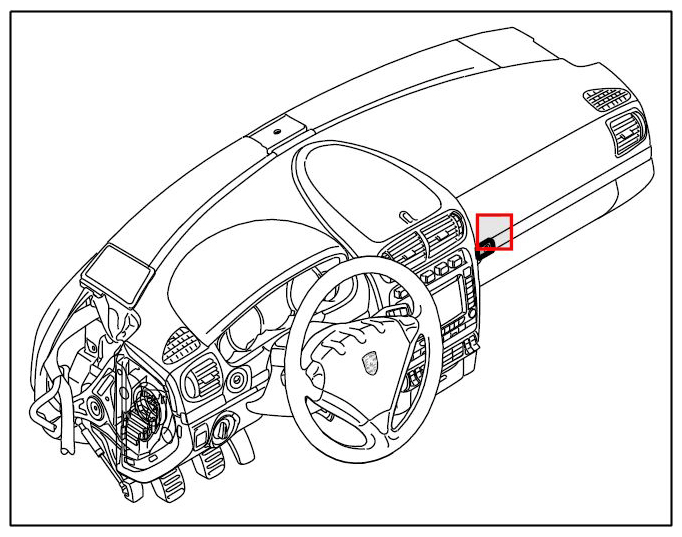

Fig 1: Identifying Glove Compartment Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install actuating cable on lock. → Installing Lock, Release And Lock Cylinder For Glove Compartment
Information

Once it is fitted correctly on the dashboard mounting, the lock can no longer be moved vertically or to the left or right.
Install glove compartment lock.
1. 2.1. Insert lock bolt with actuating cable from the front through the dashboard mounting.
2. 2.2. Insert lock -2- into dashboard mounting -13- -arrow A- and align it until it is resting evenly against the mounting.

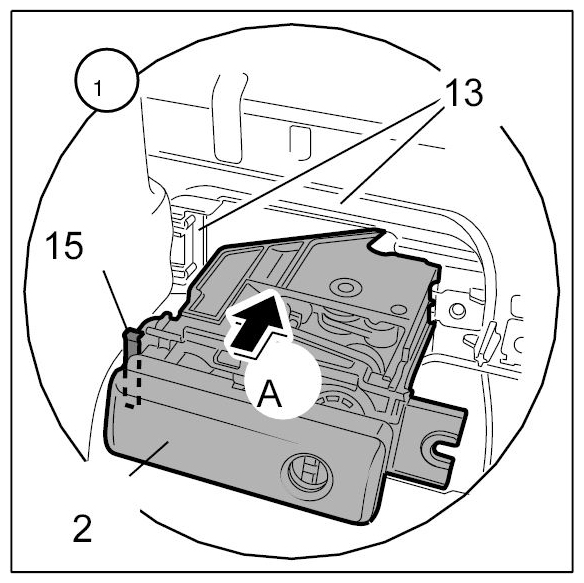

  Fig 2: Inserting Lock Into Dashboard Mounting
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Push lock as far as possible to the left -arrow B- until retaining lugs -15- of lock reach into dashboard mounting -13- on left side.

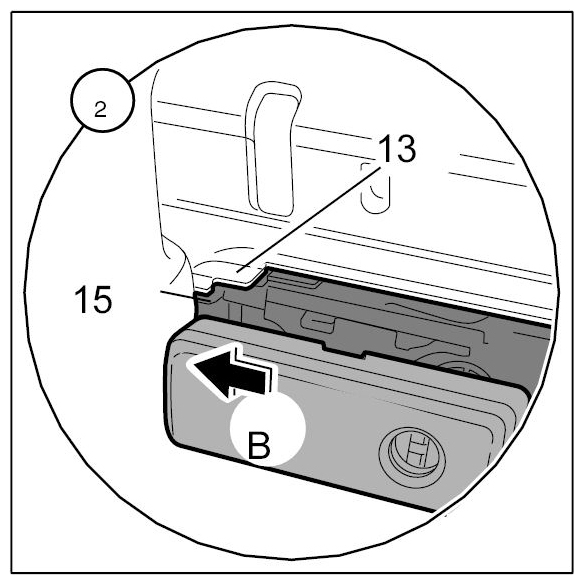

  Fig 3: Pushing Lock Into Dashboard Mounting
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

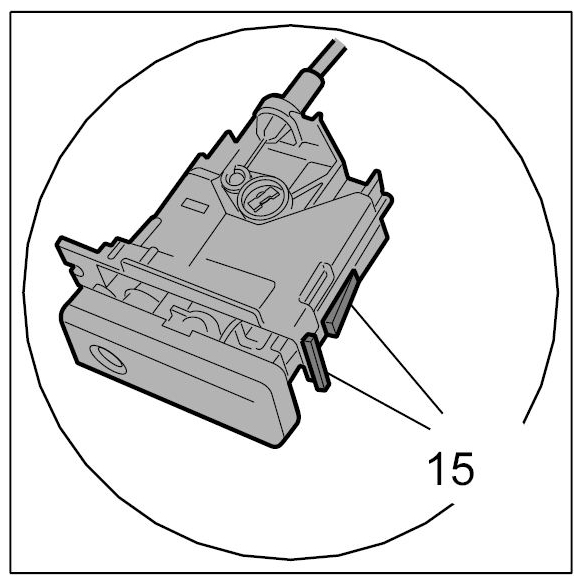

  Fig 4: Identifying Retaining Lugs
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 2.4. Screw in fastening screw -1- and tighten.

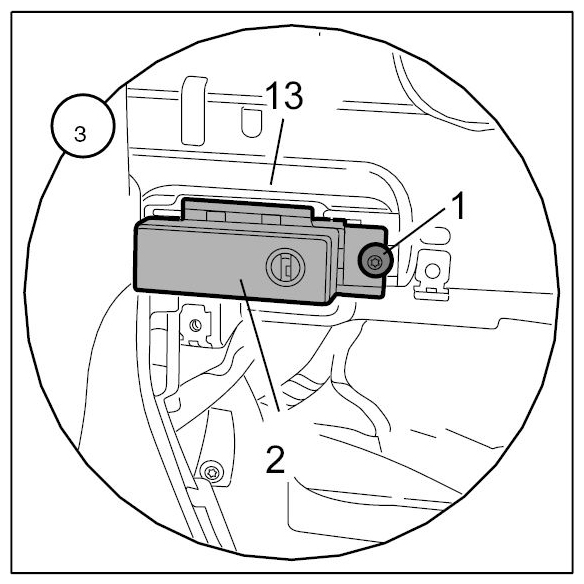

  Fig 5: Identifying Lock Fastening Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install glove compartment. → Install The Glove Compartment
Install cover under dashboard on passenger's side. → Installing cover under dashboard
Install trim strip for dashboard on passenger's side. → Installing trim strips for the dashboard on the passenger's side
