Installing Actuating Cable For Lock

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

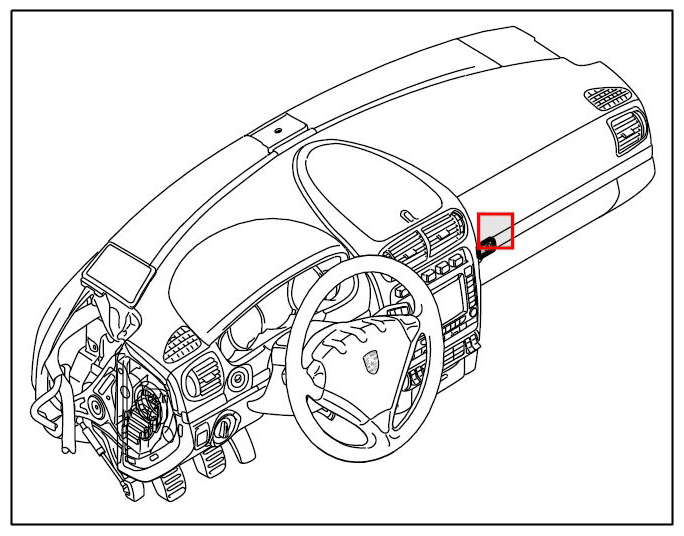

Fig 1: Identifying Actuating Cable For Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install actuating cable on lock.

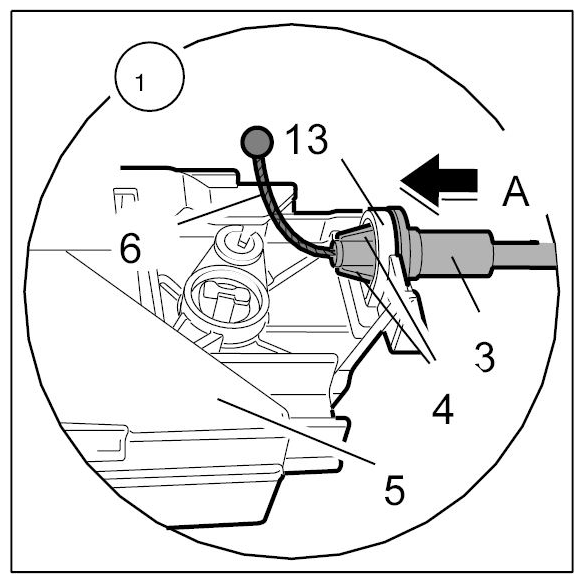

1. 1.1. Insert traction cable -6- through holder of actuating cable -13- on lock (-arrow A- ).

  Fig 2: Installing Actuating Cable On Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

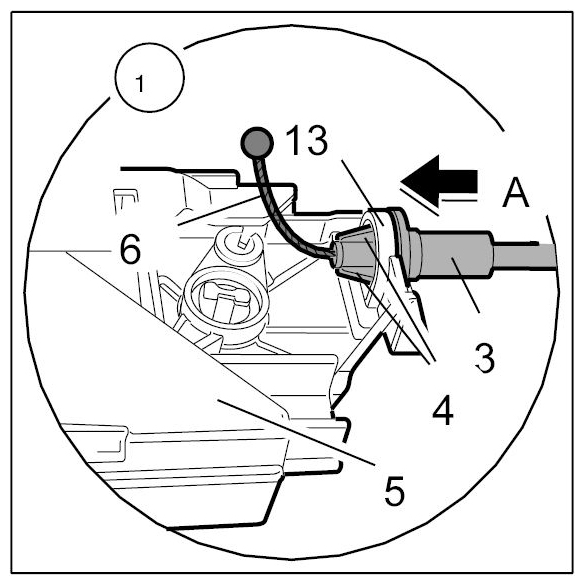

2. 1.2. Insert actuating cable -3- on holder -13- of lock (-arrow A- ). The fastening clips -4- of the traction mounting must engage audibly into the lock holder.

  Fig 3: Inserting Actuating Cable On Holder Of Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

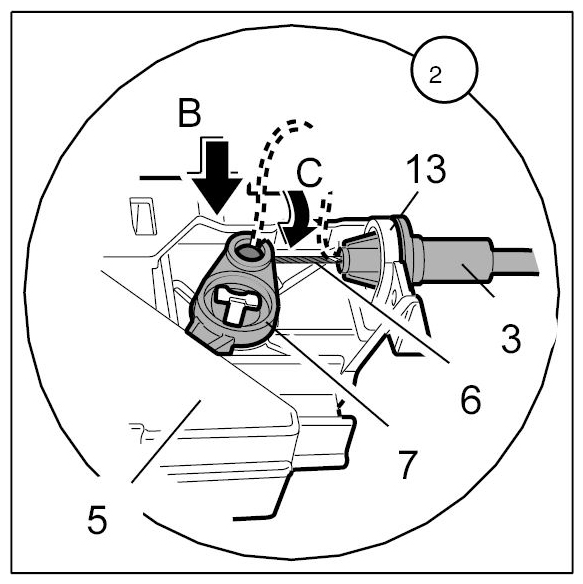

3. 1.3. Attach cable -6- to the assembly opening of actuating lever -7- from above -arrow B- and swivel to the actuating cable holder -13- on the lock (-arrow C- ).

  Fig 4: Attaching Cable To Assembly Opening Of Actuating Lever
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install actuating cable on lock bolt.
1. 2.1. Insert traction cable -6- through holder of actuating cable -14- on lock bolt (-Arrow D- ).

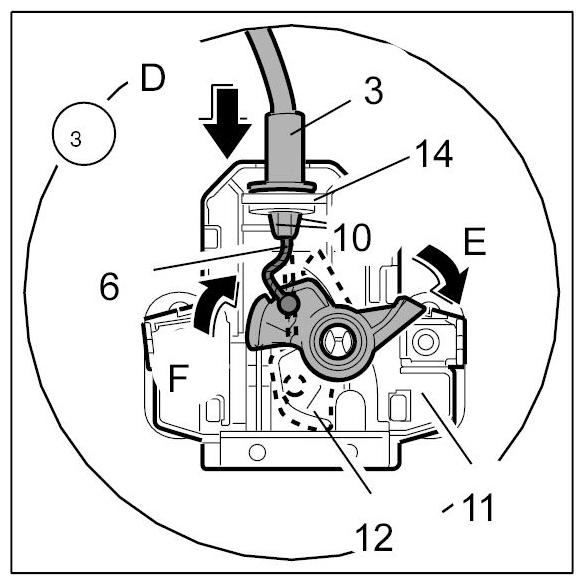

2. 2.2. Insert actuating cable -3- on holder -14- of lock bolt (-Arrow D- ). The fixing clips -10- of the traction mounting must engage audibly into the lock bolt holder.
3. 2.3. Turn actuating lever -12- to the stop in direction of actuating cable holder -14- (-Arrow E- ).
4. 2.4. Attach cable -6- to the assembly opening of actuating lever -12- from above and swivel to the actuating cable holder -14- on the lock bolt (-Arrow F- ).

  Fig 5: Attaching Cable To Assembly Opening Of Actuating Lever
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

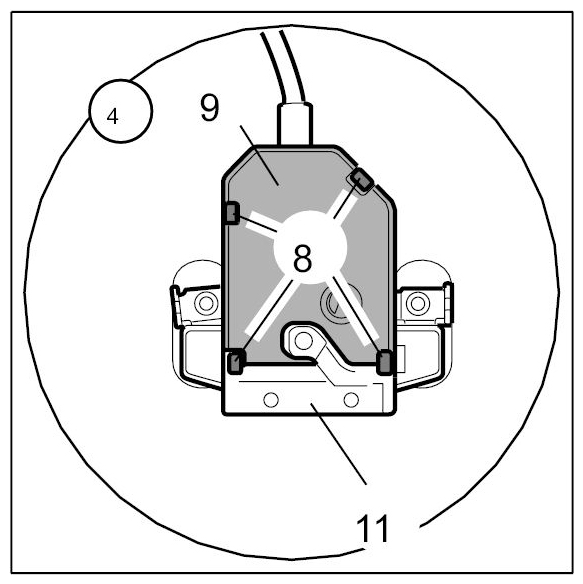

Position cap -9- on the lock bolt -11- from above and press in. The fixing clips -9- of the cover must engage audibly.

Fig 6: Identifying Lock Bolt Cap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install glove compartment lock. → Installing Lock, Release And Lock Cylinder For Glove Compartment
Install glove compartment. → Install The Glove Compartment
