Removing Inner Door Sill Trim

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

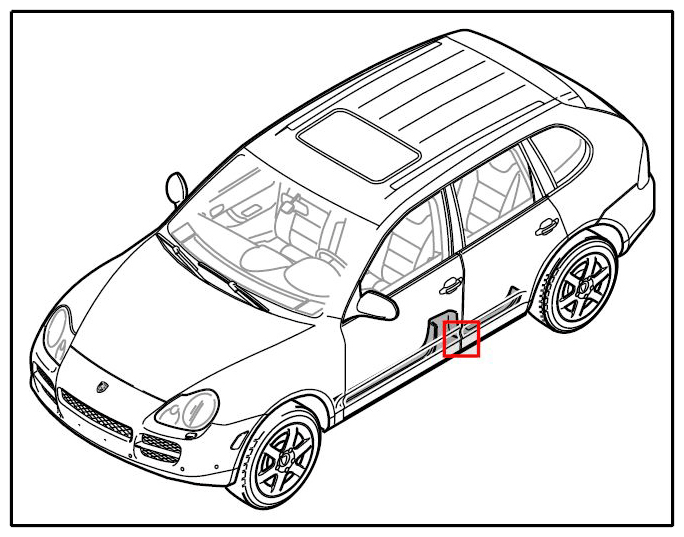

Fig 1: Identifying Inner Door Sill Trim

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

In order to reduce the unclipping forces and thereby the risk of damage during removal, the process must take place at the accessible connection points using a suitable tool.

Remove B-pillar trim panel. → Removing B-pillar trim panel

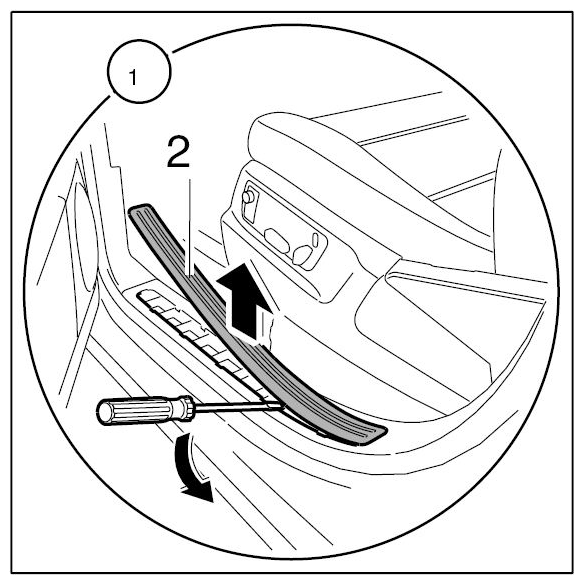

Unclip front trim -2- from front to back.

Fig 2: Removing Front Trim (Front To Back)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

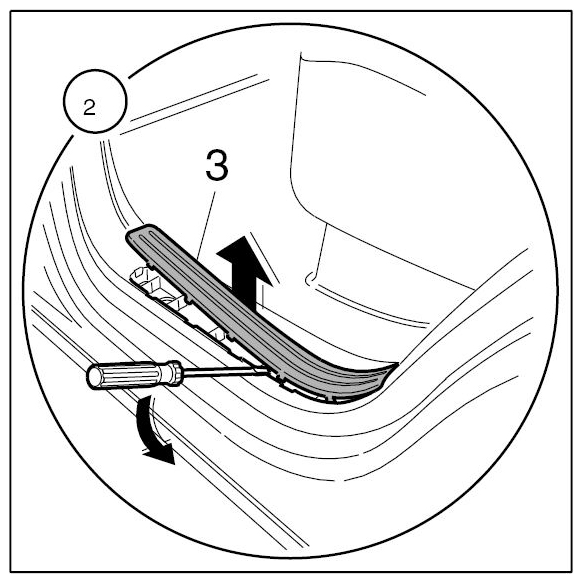

Unclip rear shroud -3- from front to back.

Fig 3: Removing Rear Shroud (Front To Back)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

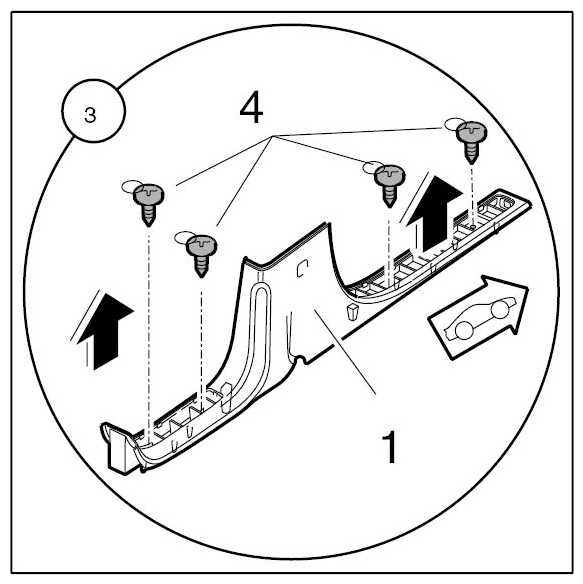

Unscrew fastening screws -4- .

Fig 4: Removing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip inner door sill trim in area of B-pillar.

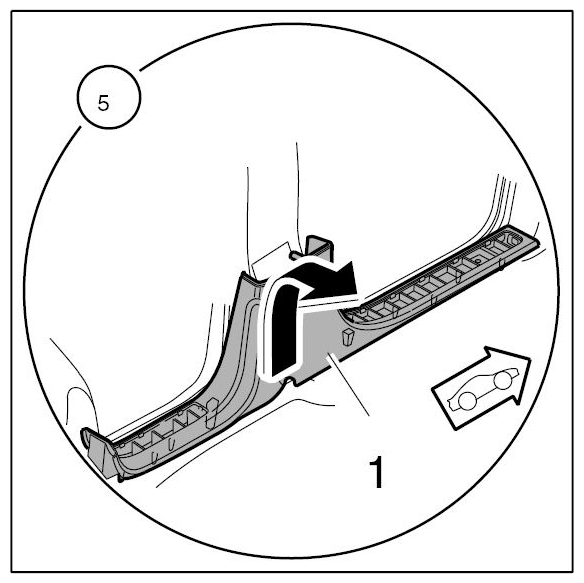

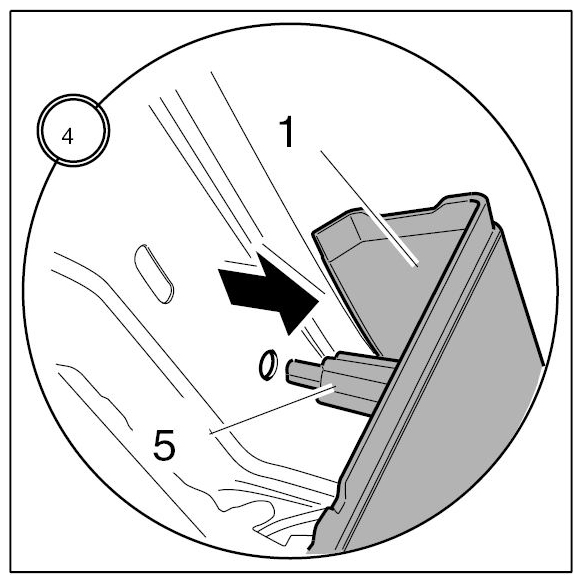

1. 5.1. Unhook marking mandrel -5- for inner door sill trim -1- from inner B-pillar.

  Fig 5: Removing Inner Door Sill Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip inner door sill trim in area of C-pillar

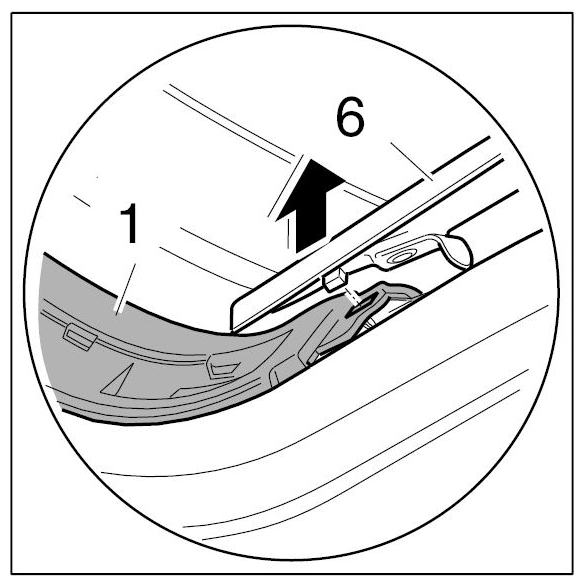

1. 6.1. Unclip and lift rear side trim panel -6- in area of overlap. Unclip inner door sill trim -1- .

  Fig 6: Removing Inner Door Sill Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

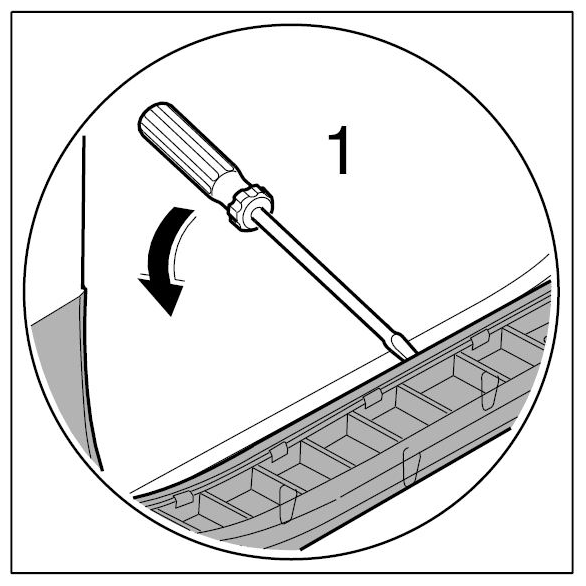

  Fig 7: Removing Inner Door Sill Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 8: Removing Rear Side Trim Panel
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
