Installing Rear Skirt

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

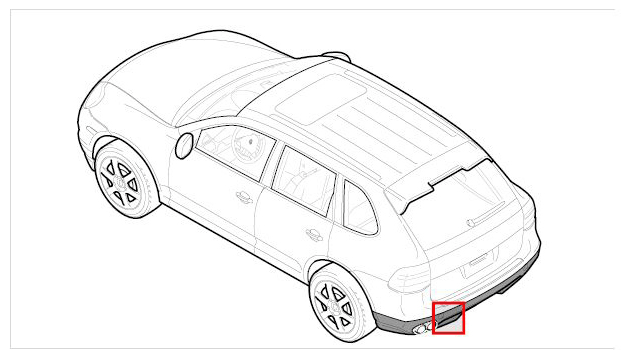

Fig 1: Identifying Installation Position Of Rear Skirt
G09411745Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Install cover for exhaust system.

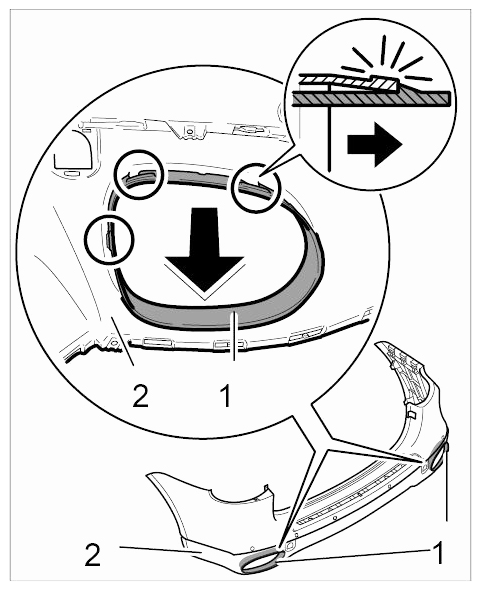

    Fig 2: Installing Exhaust System Cover
    G09411746Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Position cover for exhaust system -1-  on the rear skirt (upper part) -2-  and slide it in -arrow-  until the retaining pivots lock with an audible click.
  2. Install cover for towing lug.

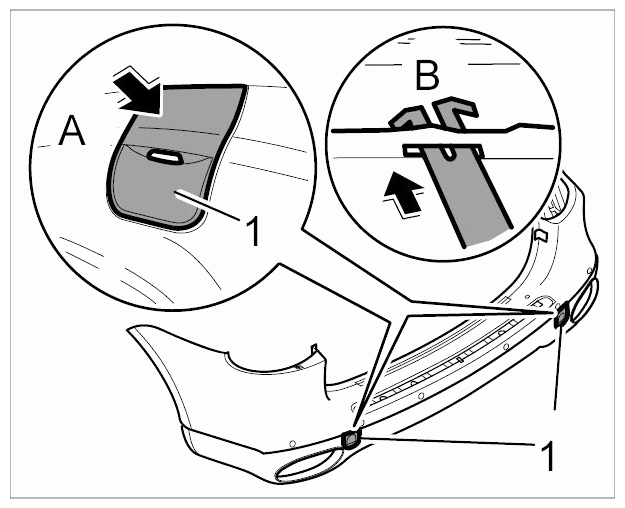

    Fig 3: Installing Towing Lug Cover
    G09411747Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Position cover for towing lug -1-  (-arrow A-  ) and press it in -arrow B-  until the locking lugs click into place.
  3. Install rear skirt (upper part).

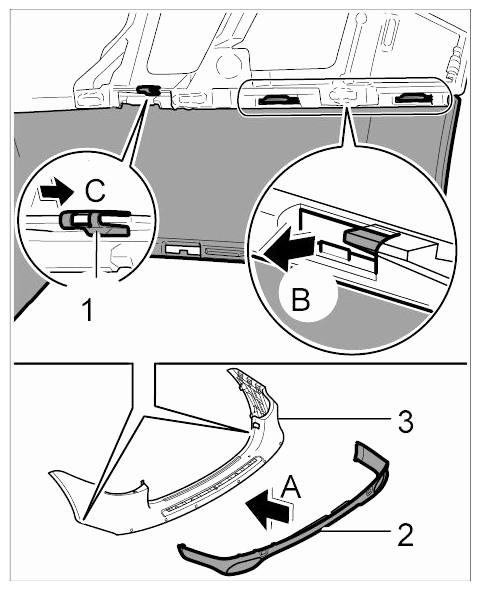

    Fig 4: Installing Rear Skirt (Upper Part)
    G09411748Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 3.1. Position rear skirt (upper part) -2-  on the rear apron -3-  and slide it in -arrow A-  until the retaining pivots engage securely -arrow B-  .
    2. 3.2. Press in retaining clips -1-  (-arrow C-  ).
  4. Install rear skirt (lower part).

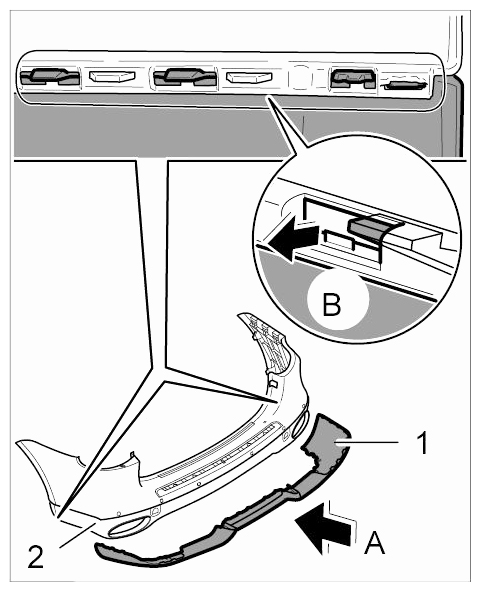

    Fig 5: Installing Rear Skirt (Lower Part)
    G09411749Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 4.1. Position rear skirt (lower part) -1-  on the rear skirt (upper part) -2-  and slide it in -arrow A-  until the retaining pivots engage securely -arrow B-  .
    2. 4.2. Screw in fastening screws -2-  on the rear skirt (lower part) -3-  .

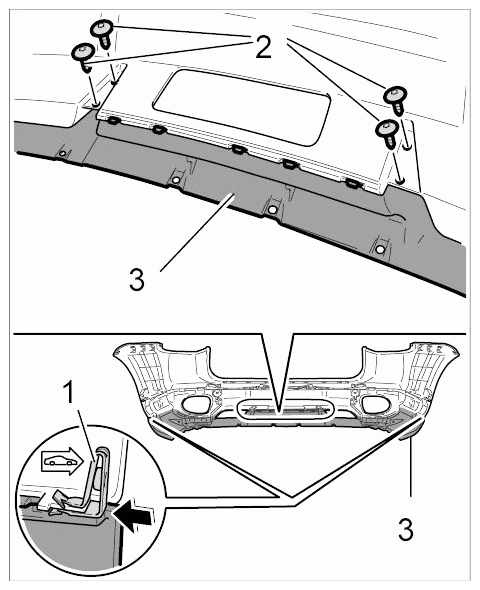

      Fig 6: Securing Rear Skirt (Lower Part)
      G09411750Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 4.3. Push on retaining clips -1-  (-arrow-  ).
  5. Install covering frame.

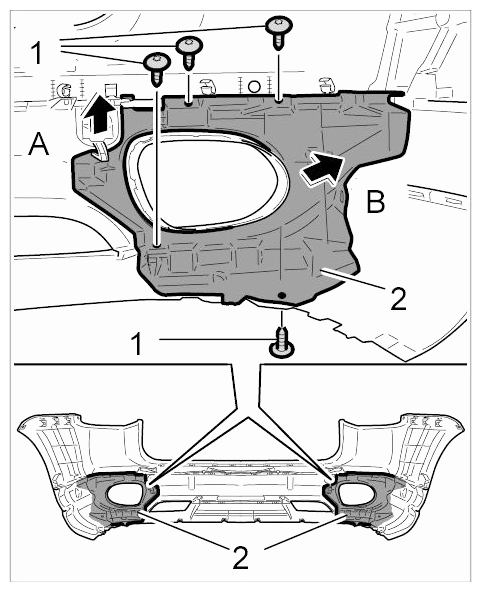

    Fig 7: Installing Covering Frame
    G09411751Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 5.1. Position covering frame -2-  on the rear apron -arrow A-  and press it in -arrow B-  .
    2. 5.2. Screw in fastening screws -1-  .
  6. Install heat protection panel.

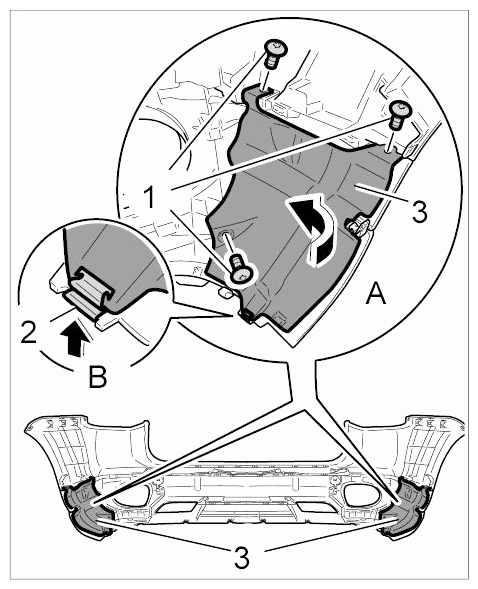

    Fig 8: Installing Heat Protection Panel
    G09411752Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 6.1. Position heat protection panel -3-  on the covering frame in -direction of arrow A-  and push on retaining clip -2-  (-arrow B-  ).
    2. 6.2. Screw in fastening screws -1-  .
