Removing Rear Retaining Strip And Retaining Bracket

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

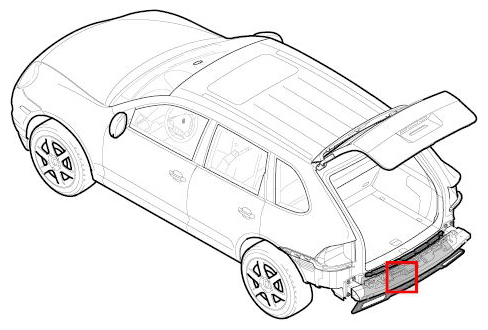

Fig 1: Identifying Installation Position Of Rear Retaining Strip And Retaining Bracket

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove rear retaining strip and retaining bracket.

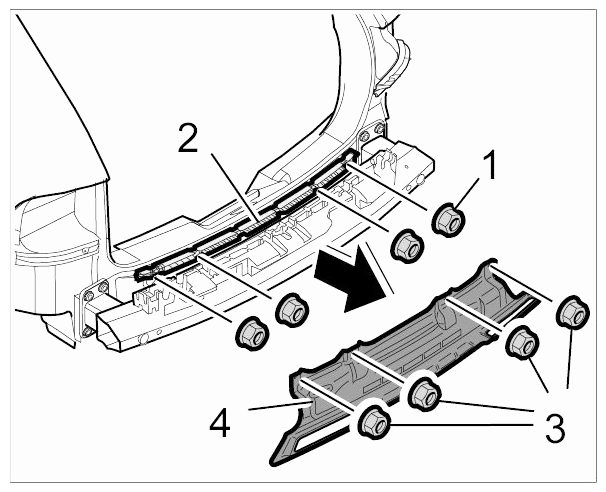

Fig 2: Removing Rear Retaining Strip And Retaining Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Unscrew fastening nuts -1- .
2. 1.2. Remove rear retaining strip -2- .
3. 1.3. Unscrew fastening nuts -3- .
4. 1.4. Remove retaining bracket -4- .
