Removing (Stainless Steel) Rear Trim

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

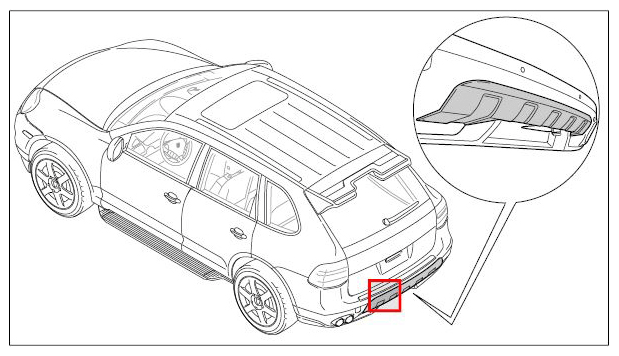

Fig 1: Identifying Installation Position Of Rear Trim (Stainless Steel)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Use new clamping washers during installation.

Press clamping washers -1- out of the retaining pivots using a screwdriver -arrow- .

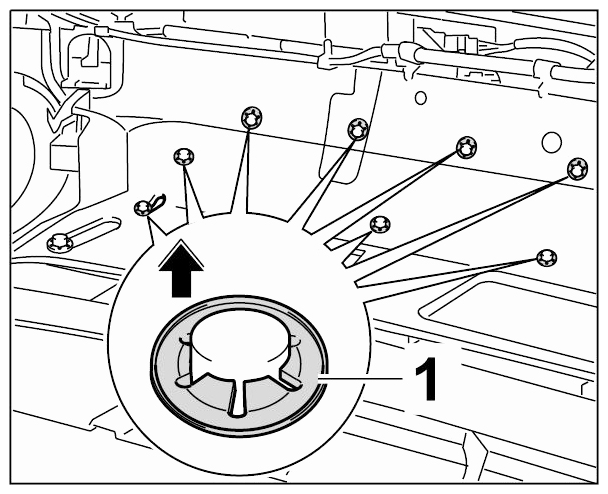

Fig 2: Loosening Rear Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully remove the rear trim -1- from the rear apron -2- with the help of another person -arrows- .

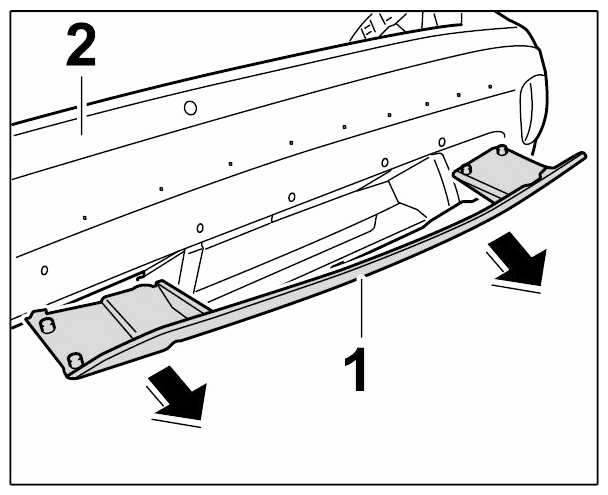

Fig 3: Removing Rear Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
