Installing (Stainless Steel) Rear Trim

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

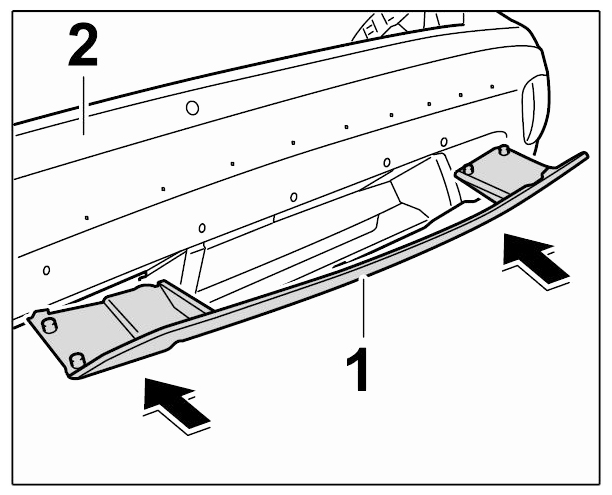

Carefully fit the rear trim -1- on the rear apron -2- with the help of another person -arrows- . When doing so, make sure that the retaining pivots of the rear trim are inserted into the round holes and slots on the rear apron.

Fig 1: Installing Rear Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

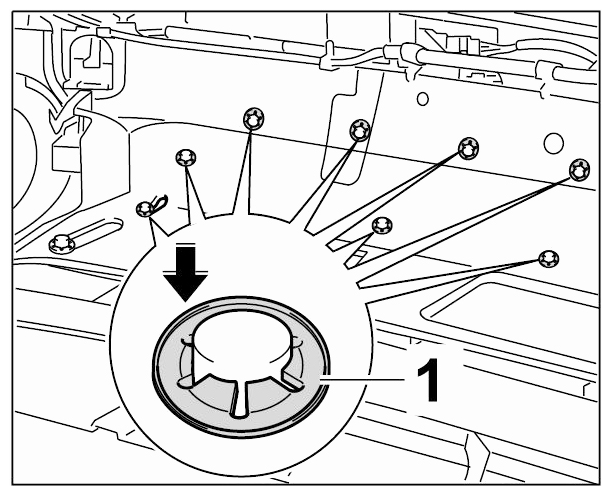

Press the rear trim onto the rear apron and fit the clamping washers -1- onto the retaining pivots on the rear trim -arrow- .

Fig 2: Securing Rear Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
