Assembling Rear Apron

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

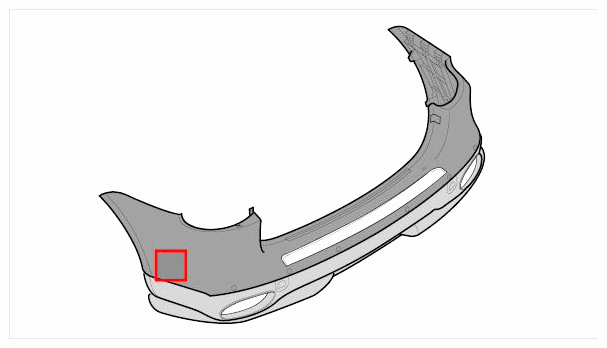

Fig 1: Identifying Main Illustration Of Rear Apron

G09411725

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

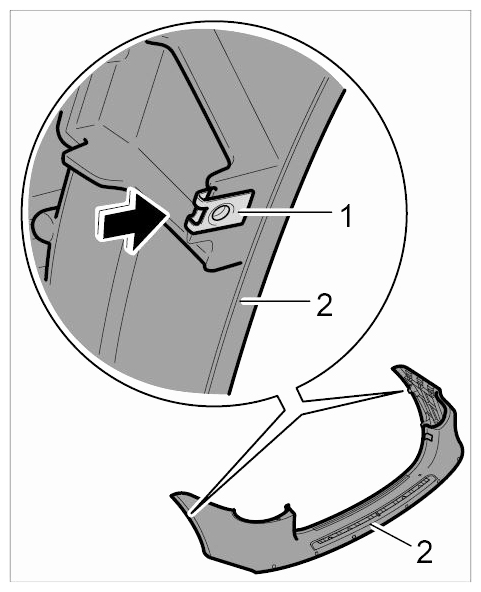

Press cable holder -1- into the rear apron -2- (-arrow- ).

Fig 2: Installing Cable Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

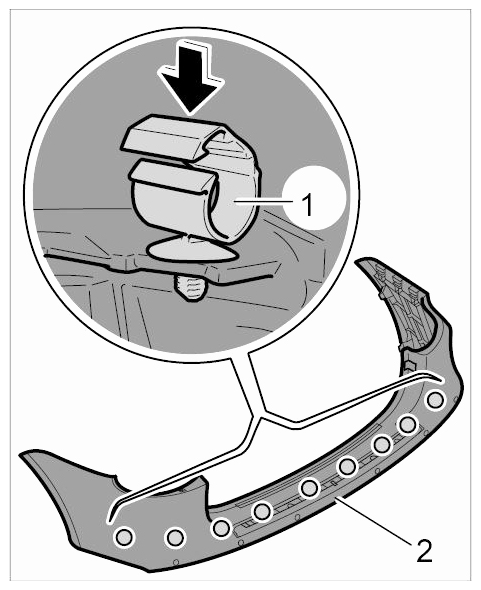

Press fastening nuts -1- into the rear apron -2- (-arrow- ).

Fig 3: Pressing In Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
