Removing Side Guide Rail

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

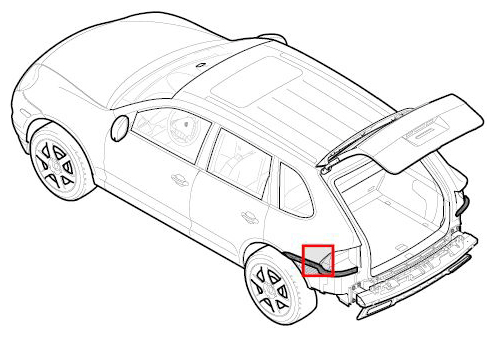

Fig 1: Identifying Installation Position Of Guide Rail

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The side guide rail is only removed if it is damaged or for painting.

Remove side guide rail.

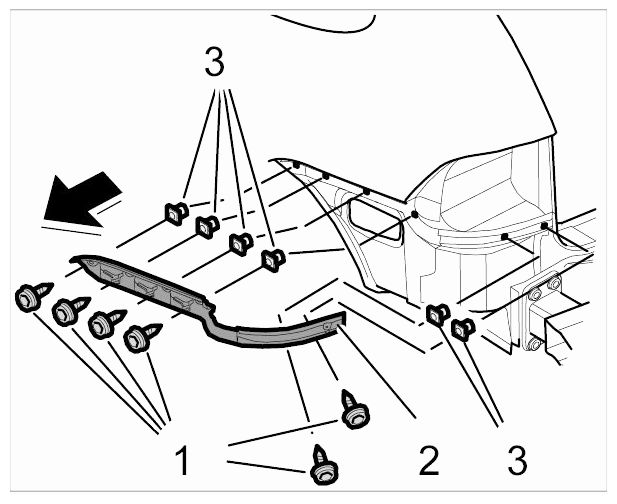

Fig 2: Removing Side Guide Rail
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Undo fastening screws -1- .
2. 1.2. Remove side guide rails -2- .
3. 1.3. Check expander nuts -3- and unclip and replace them if necessary.
