Installing rear bumper

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

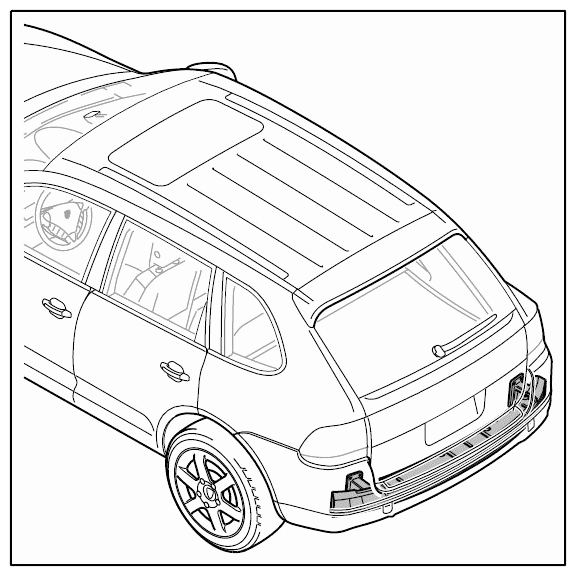

Fig 1: Identifying Rear Bumper Rivet Nuts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fit rivet nuts
only when replacing the bumper on vehicles with external spare wheel
1. 1.1. Insert rivet nuts in the bores and rivet with hand-held blind rivet nut device Nr.125.
Installing rear bumper
1. 2.1. Replace seal -3- (or -3- ).
2. 2.2. Position rear bumper -1- .
3. 2.3. Screw in fastening screws -2- (or -2- ) → Tightening torque: 150 Nm+30 Nm.

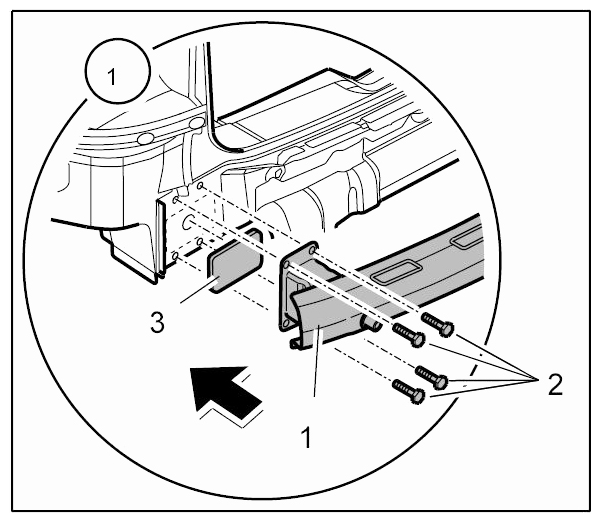

  Fig 2: Installing Rear Bumper
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

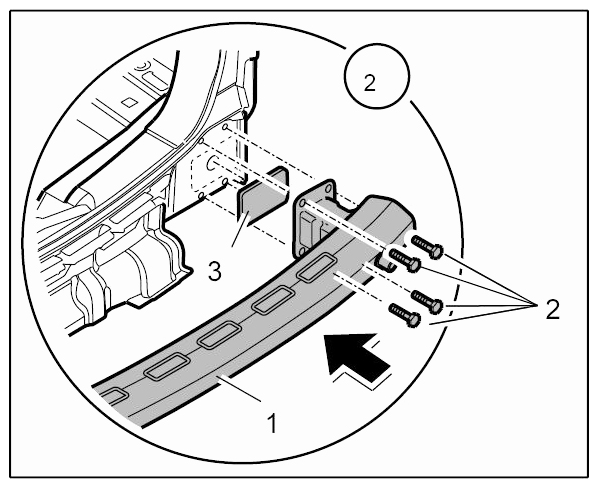

  Fig 3: Installing Rear Bumper
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Preparing the foam part for installation
1. 3.1. Place a butyl sealing cord -4- on the underside of the foam part -5- in the areas indicated.

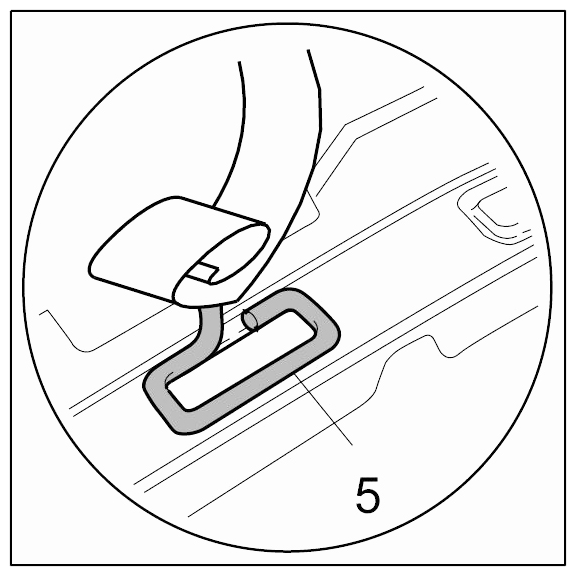

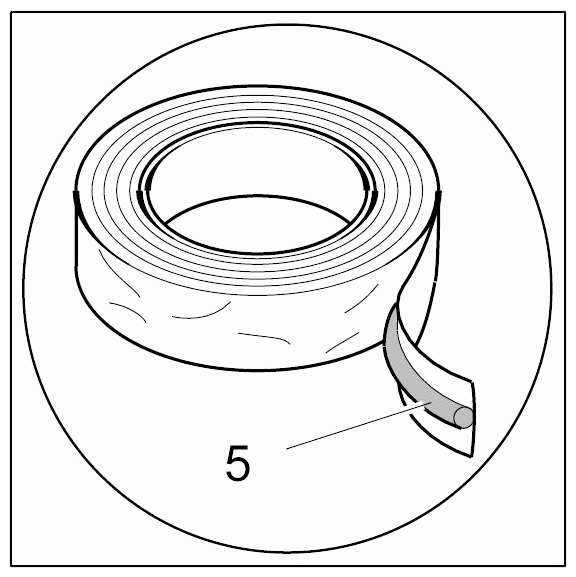

  Fig 4: Identifying Butyl Sealing Cord
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

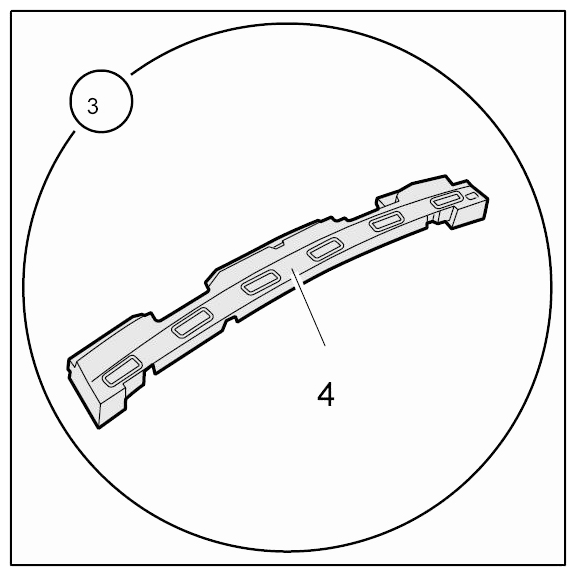

  Fig 5: Identifying Foam Part
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 6: Identifying Foam Part
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Installing foam part
1. 4.1. Place foam part -4- on the rear bumper -1- in line with the profile and press down firmly.

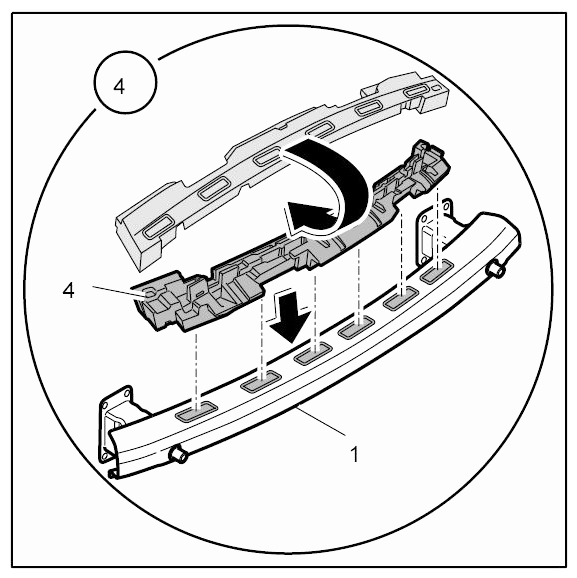

  Fig 7: Installing Foam Part
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
