Removing cover strip

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

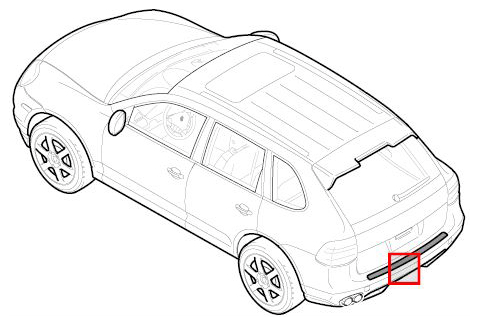

Fig 1: Identifying Installation Position Of Cover Strip
G09411682Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip fastening clamps -1-  with a screwdriver -arrow A-  .

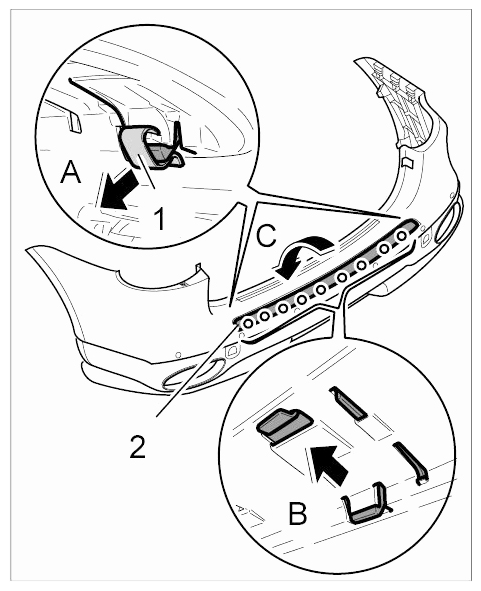

    Fig 2: Removing Cover Strip
    G09411683Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release retaining pivots using a screwdriver -arrow B-  and remove cover strip -2-  in -direction of arrow C-  .
