Installing (stainless steel) skid plate

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Carefully fit the skid plate -1- on the front apron -2- with the help of another person -arrows- . When doing so, make sure that the retaining pivots of the skid plate are inserted into the round holes and slots on the front apron.

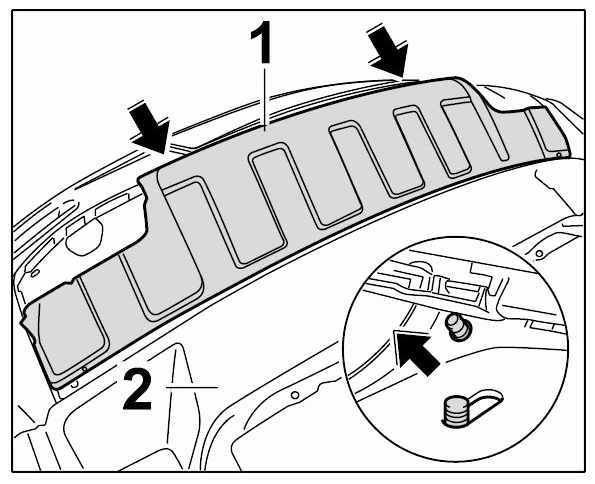

Fig 1: Installing Skid Plate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press the skid plate onto the front apron and fit the clamping washers -1, 2- onto the retaining pivots on the skid plate -arrows- .

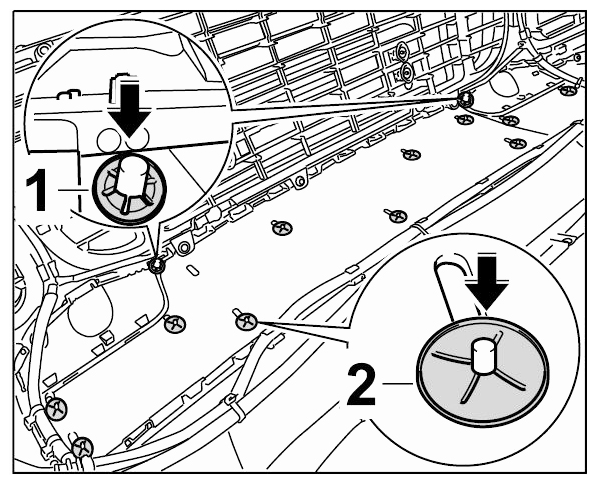

Fig 2: Securing Skid Plate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position cap -1- on the front apron and clip it in -arrow- .

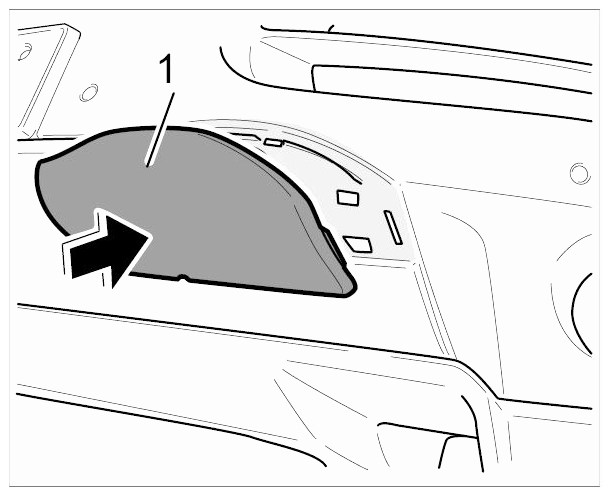

Fig 3: Installing Front Apron Cap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
