Removing Rear Wheel Housing Liners

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

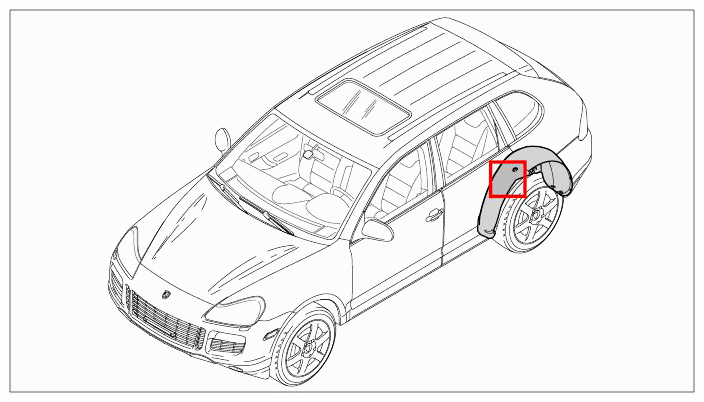

Fig 1: Rear Wheel Housing Liner Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release rear wheel housing liner.

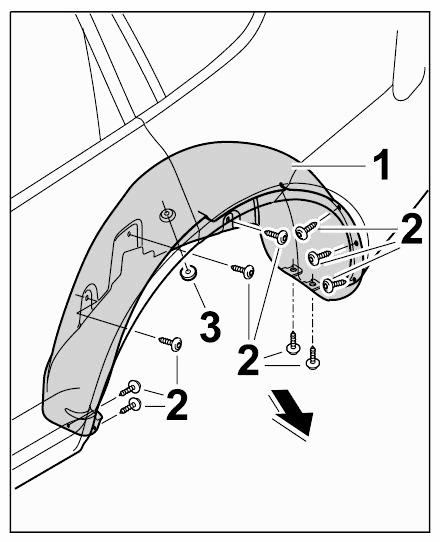

Fig 2: Releasing Rear Wheel Housing Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Unscrew fastening screws -2- from the rear wheel housing liner -1- .
2. 1.2. Unscrew fastening nut -3- from the stud.
  Information
  - For the right wheel housing liner at the rear, the bolting point for the fastening nut -3- is to the front .

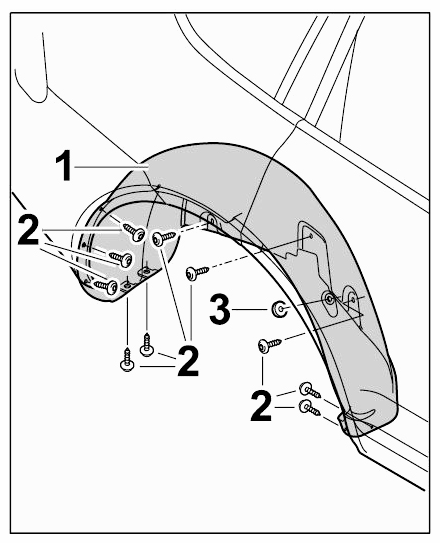

    Fig 3: Identifying Rear Right Wheel Housing Liner
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove rear wheel housing liner.

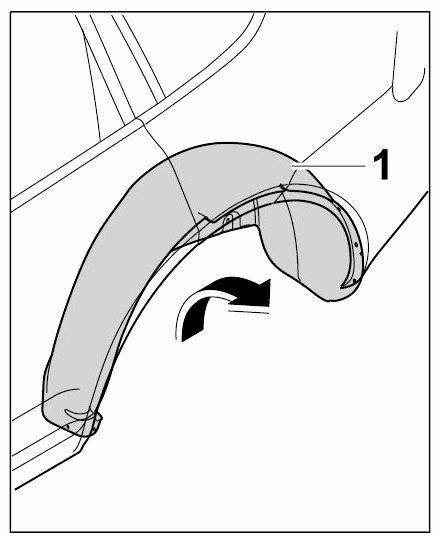

Fig 4: Removing Rear Wheel Housing Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Remove rear wheel housing liner -1- in -direction of arrow- .
Remove heat shield for rear wheel housing liner.

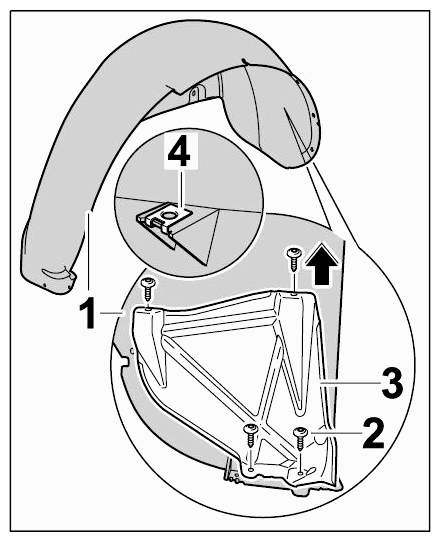

Fig 5: Removing Heat Shield For Rear Wheel Housing Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Unscrew fastening screws -2- from the rear wheel housing liner -1- and remove heat shield -3- (-arrow- ).
2. 3.2. Check fastening nuts -4- and replace if necessary.
