Installing Rear Wheel Housing Liner

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

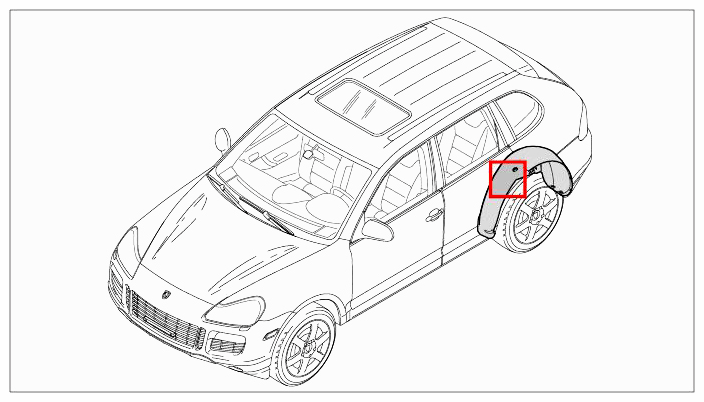

Fig 1: Identifying Installation Position Of Rear Wheel Housing Liner

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install heat shield for rear wheel housing liner.

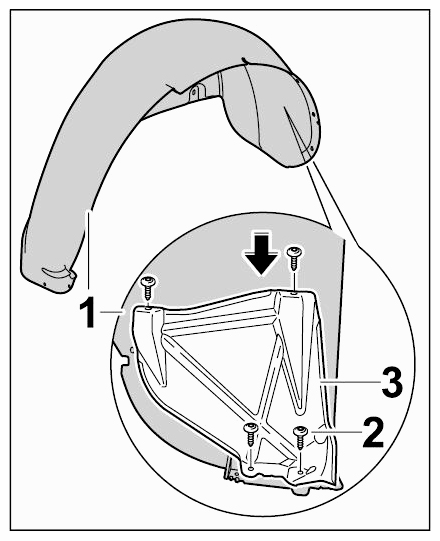

Fig 2: Installing Heat Shield For Rear Wheel Housing Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Position heat shield -3- at rear wheel housing liner -1- (-arrow- ).
2. 1.2. Tighten fastening screws -2- . → Tightening torque: 1.5 Nm (1.0 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)
Install rear wheel housing liner.

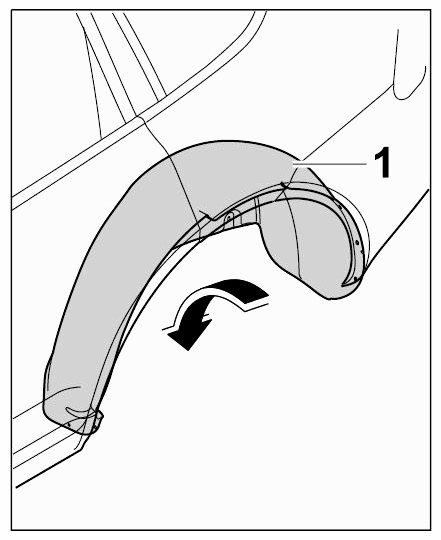

Fig 3: Installing Rear Wheel Housing Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Position wheel housing liner -1- in -direction of arrow- and align it.
2. 2.2. Screw fastening nut -3- onto stud and tighten slightly.

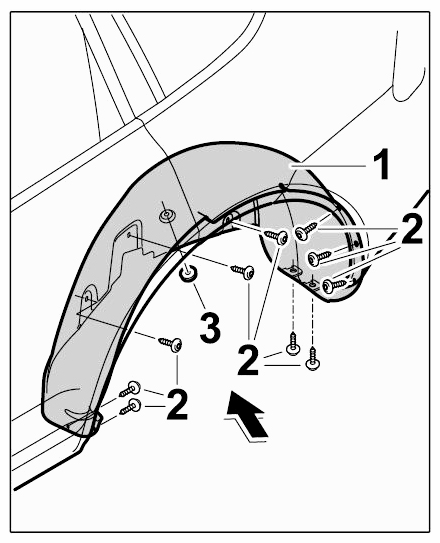

  Fig 4: Fastening Rear Wheel Housing Liner
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Screw in fastening screws -2- and tighten slightly.
4. 2.4. Check that rear wheel housing liner -1- is positioned correctly in the transition area between the side wall and door seal.
5. 2.5. Tighten fastening screws -2- and fastening nut -3- . → Tightening torque: 1.5 Nm (1.0 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.) → Tightening torque: 1.5 Nm (1.0 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)
