Preparing Connection Areas Of The Body For Installing The Rear Wheel Housing

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

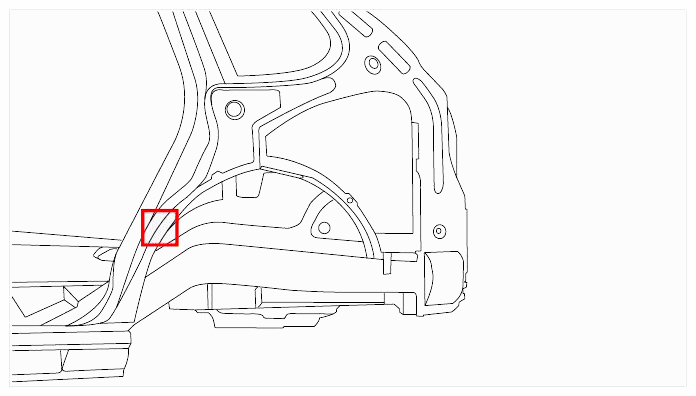

Fig 1: Identifying Connection Areas For Rear Wheel Housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Prepare connection areas on inner door sills, inner wheel housing and on the D-pillar and C-pillar reinforcements for installation.
1. 1.1. Clean undersealing, adhesive residue and paint from the marked areas of the body connecting flanges using a hot-air gun and rotary brush. Grind the connecting flanges until bare.

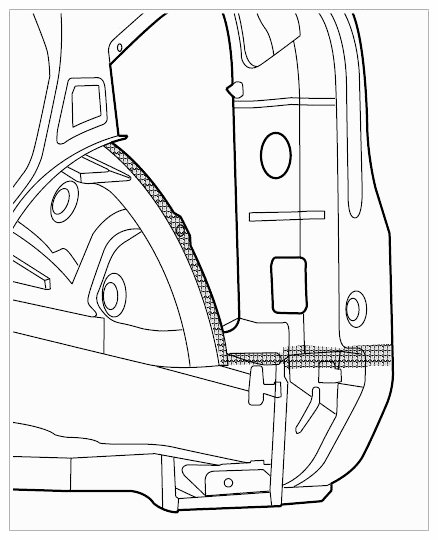

  Fig 2: Preparing Connection Areas On Inner Wheel Housing And D-Pillar Reinforcement
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

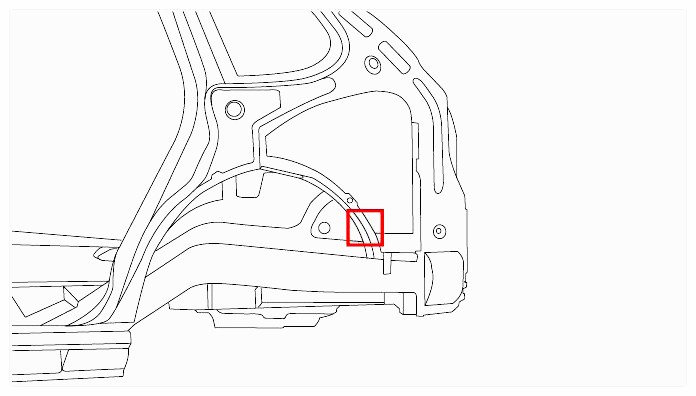

  Fig 3: Identifying Connection Areas For Rear Wheel Housing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

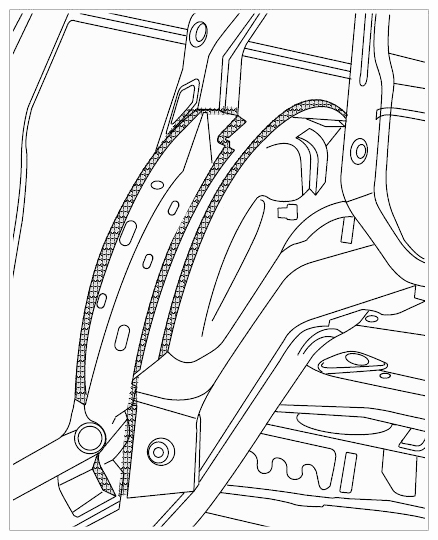

  Fig 4: Preparing Connection Areas On Inner Door Sills, Inner Wheel Housing And D-Pillar Reinforcement
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Coat spot-weld flange areas with zinc powder paint.
1. 2.1. Coat all spot-weld flange areas with zinc powder paint.
