Removing Rear Wheel Housing: Notes

Information

• All straightening work on the body in the connection area of the sheetmetal parts to be replaced must be completed before the damaged parts are removed  .

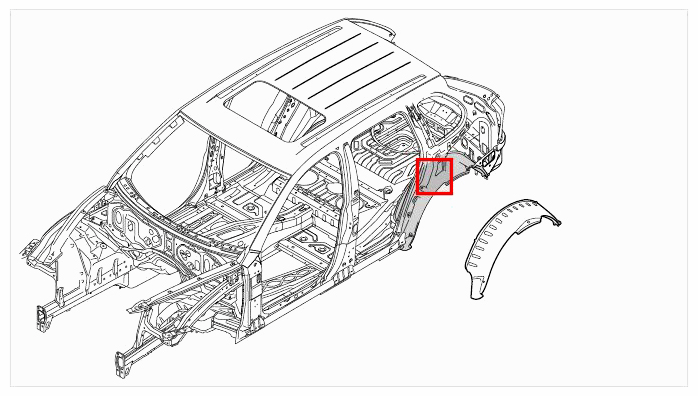

Fig 1: Rear Wheel Housing Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove rear side section. → Removing Rear Side Panel
2. Remove outer side member. → Removing Outer Lower Side Member
3. Separate welded joints for C-pillar reinforcement and inner door sill.
   1. 3.1. Mill off the welded joints in area -A-  using a spotweld cutter.

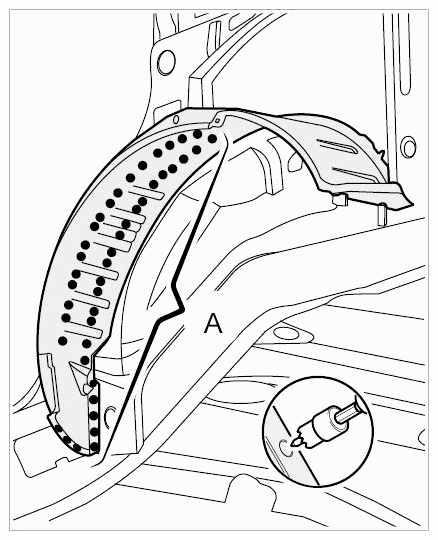

      Fig 2: Separating Welded Joints For C-Pillar Reinforcement And Inner Door Sill

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      Fig 3: Overview Of Inner Wheel Housing - Inside

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Separate welded joints for inner wheel housing.

   Information

   • The welded joints must be ground off using a parting grinder - starting with the exterior of the vehicle. The inner wheel housing must not be damaged while doing so.
   1. 4.1. Grind off the welded joints in area -B-  using a parting grinder.

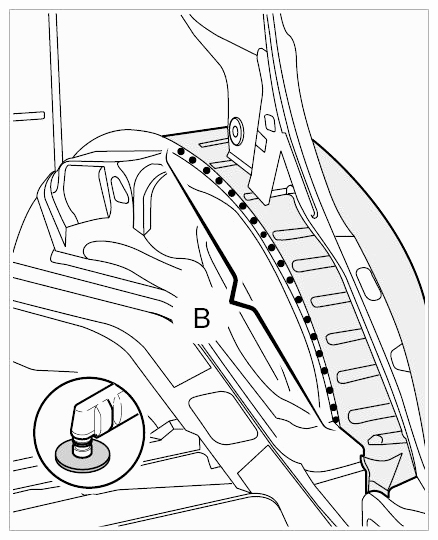

      Fig 4: Separating Welded Joints For Inner Wheel Housing

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

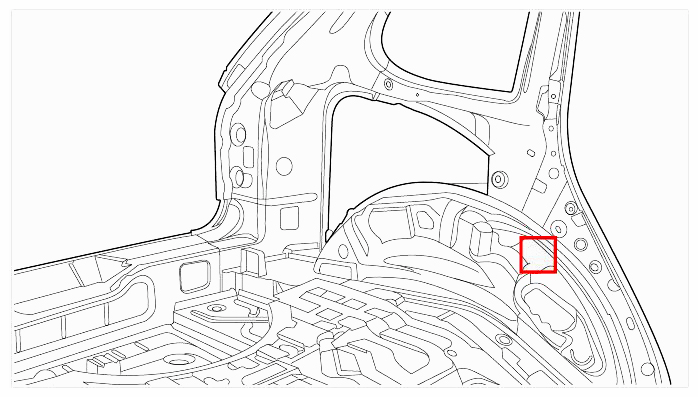

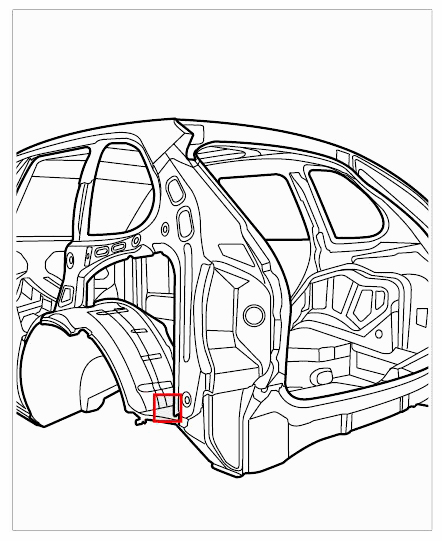

      Fig 5: Overview Of Inner Wheel Housing - Outside

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Separate welded joints for inner wheel housing.
   1. 5.1. Mill off the welded joints in area -C-  using a spotweld cutter.

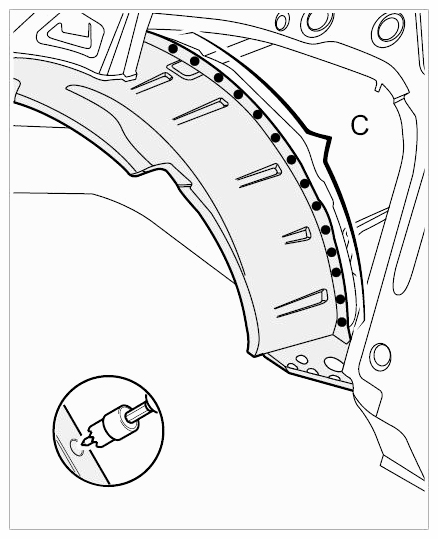

      Fig 6: Separating Welded Joints For Inner Wheel Housing

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

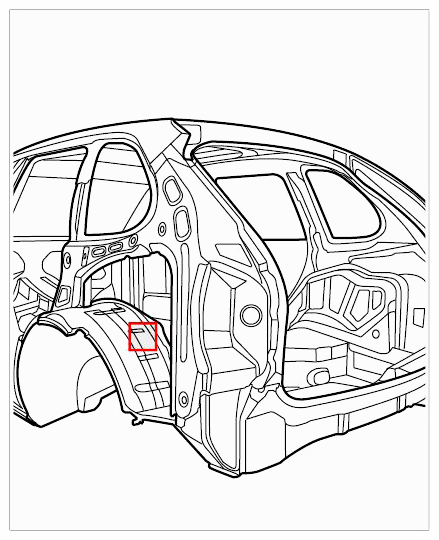

      Fig 7: Overview Of D-Pillar - Inside

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Separate welded joints for D-pillar reinforcement.
   1. 6.1. Grind off the welded joints in area -D-  using a parting grinder.

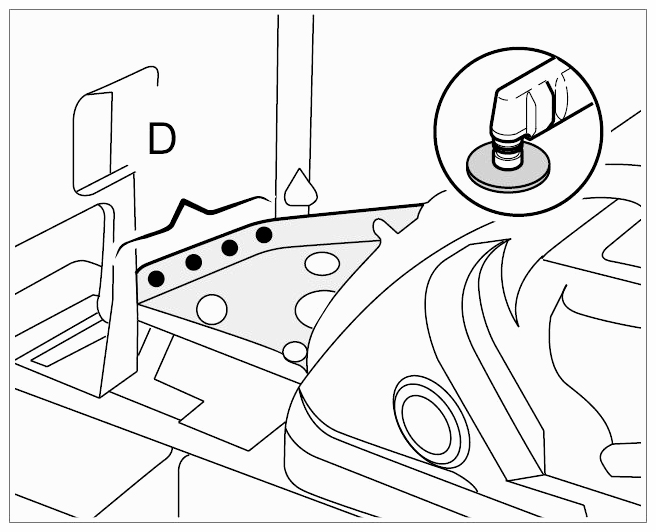

      Fig 8: Separating Welded Joints For D-Pillar Reinforcement

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

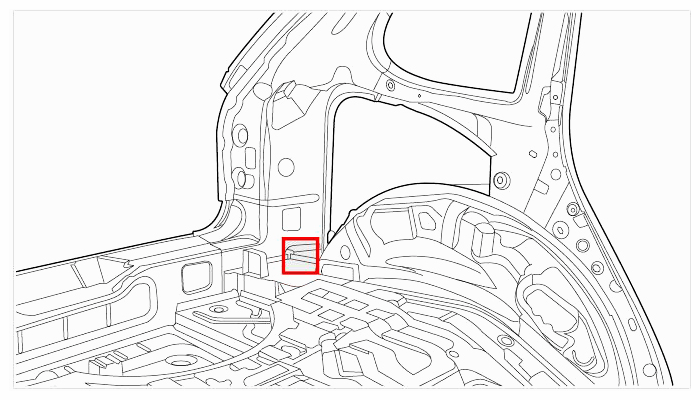

      Fig 9: Overview Of Floorpan (Outside)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Separate welded joints for floorpan.
   1. 7.1. Mill off the welded joints in area -E-  using a spotweld cutter.

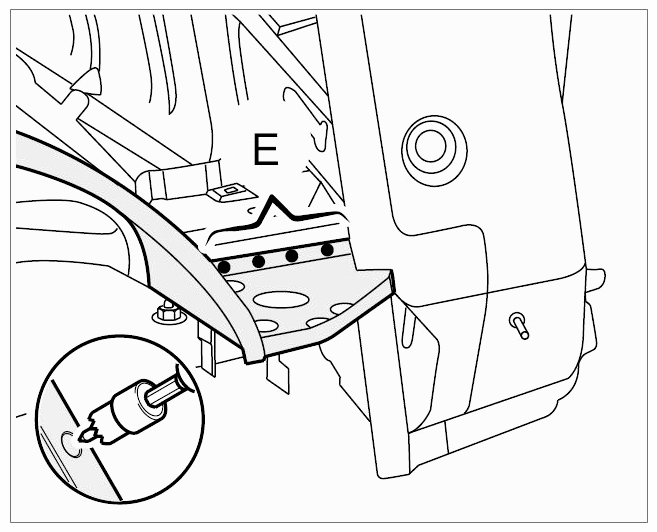

      Fig 10: Separating Welded Joints For Floorpan

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Remove wheel housing.
