Preparing Connection Areas Of The Body For Installing The Rear Wheel Housing

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

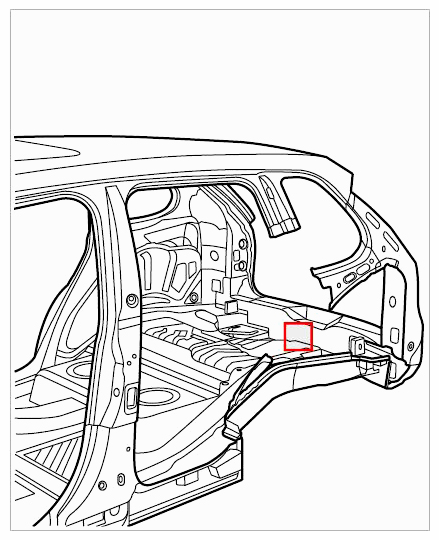

Fig 1: Overview From Outside (Body)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clean welding and sealing areas.
1. 1.1. Clean undersealing, adhesive residue and paint off the connecting flanges of the body in the marked areas using a hot-air gun or rotary brush. Grind the connecting flanges until bare.

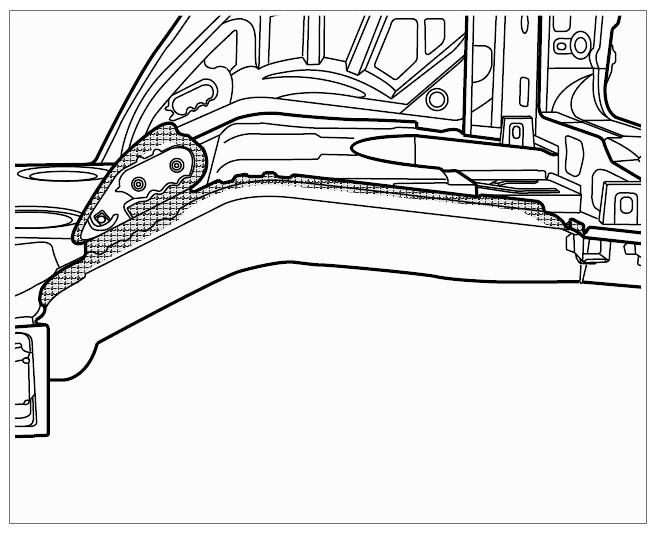

  Fig 2: Preparing Connection Areas On Body
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Coat spot-weld flange areas with zinc powder paint.
1. 2.1. Coat all spot-weld flange areas with zinc powder paint.
