Fitting Side Section Bottom Section And Preparing For Installation

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

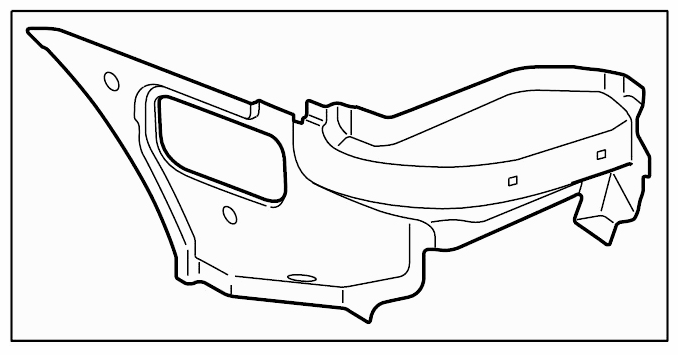

Fig 1: Identifying Side Bottom Section

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clean welding and sealing areas.
1. 1.1. Grind both sides of the connection flange of the bottom part of the side section in the marked areas -A, B- and -C, D- until bare using a rotary brush.

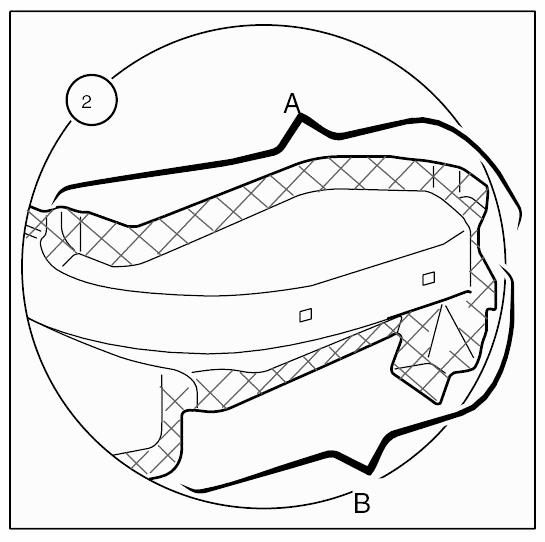

  Fig 2: Identifying Grinding Area On Connection Flange (A And B)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

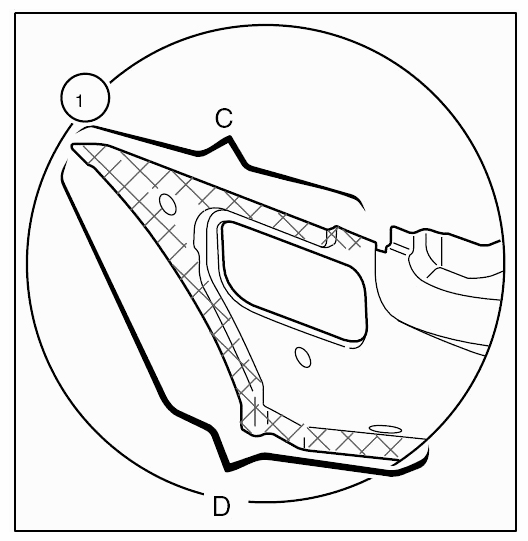

  Fig 3: Identifying Grinding Area On Connection Flange (C And D)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Drill holes for plug welding using inert gas.
1. 2.1. On the fastening flange -A, B- and -C- of the bottom part of the side section, bore holes with ø = 7 mm or punch them using a hole punch. Maintain spacing as on the old part.

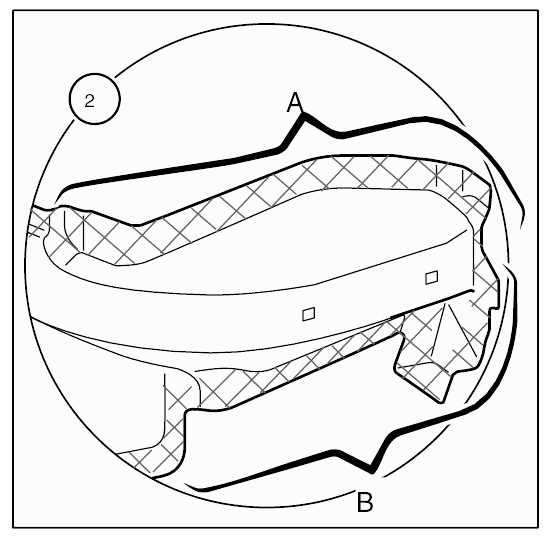

  Fig 4: Identifying Welding Applying Area On Bottom Part Of Side Section (A And B)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

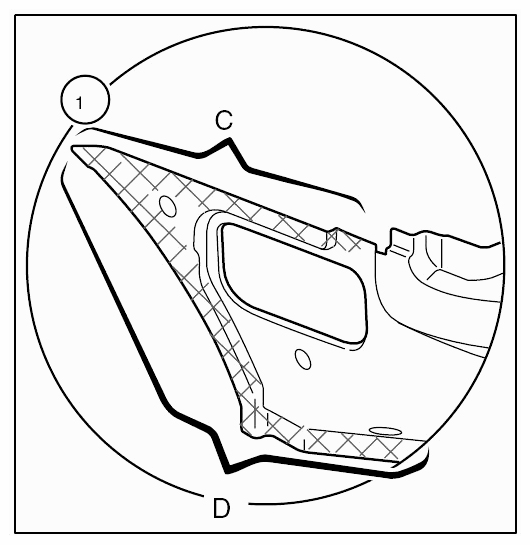

  Fig 5: Identifying Welding Applying Area On Bottom Part Of Side Section (C And D)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
