Fitting Seal

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Seal Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fit seal on the C-pillar.

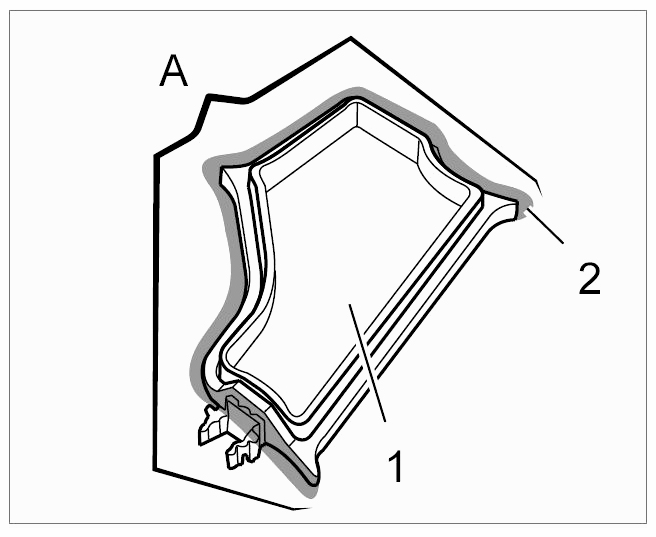

1. 1.1. On the seal -1- , apply Wurth Klebt und Dichtet body sealant -2- in area -A- . Maintain the application depth -V- → Application depth: 10 mm .

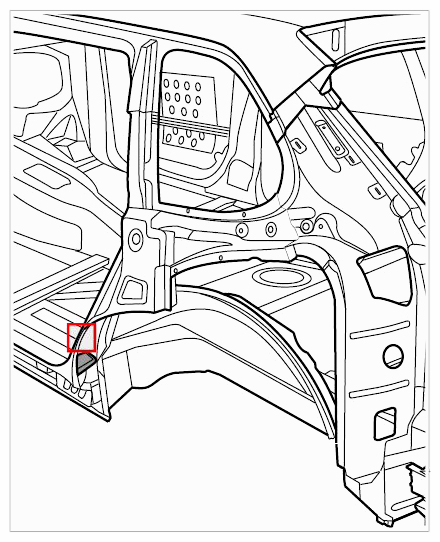

  Fig 2: Identifying Body Sealant Applying Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

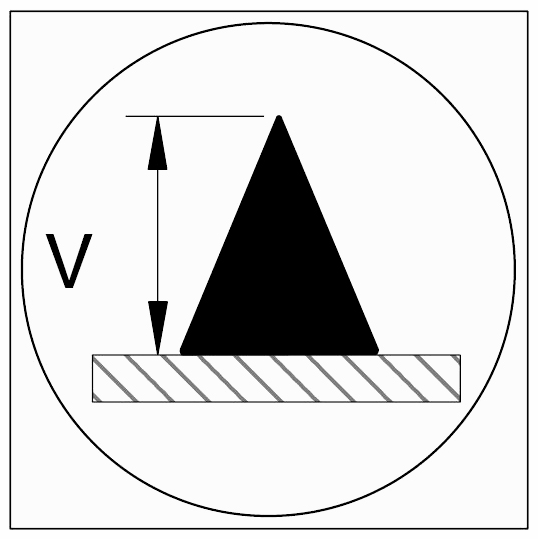

  Fig 3: Identifying Body Sealant Application Depth
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

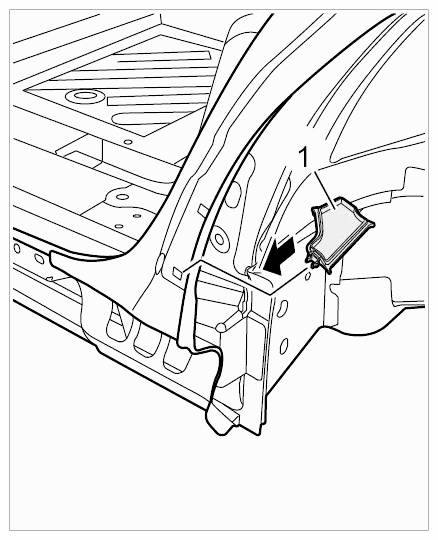

2. 1.2. Position seal -1- on the C-pillar -arrow- and press on evenly until the side clip connection engages.

  Fig 4: Inserting Seal
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install rear wheel housing. → Installing Rear Wheel Housing
Install lower side member reinforcement. → Installing Lower Side Member Reinforcement
Install outer side member. → Installing
Install rear side section. → Installing Rear Side Panel
