Fitting In Closing Panel And Preparing For Installation

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

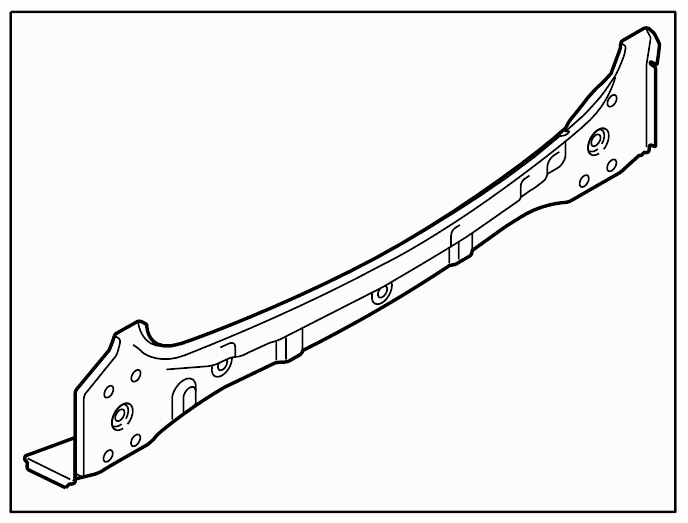

Fig 1: Identifying End Plate

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clean welding and sealing areas.
1. 1.1. Grind both sides of the connection flange of the closing panel in the marked areas -A, B-, -C, D-, -E- until bare using a rotary brush.

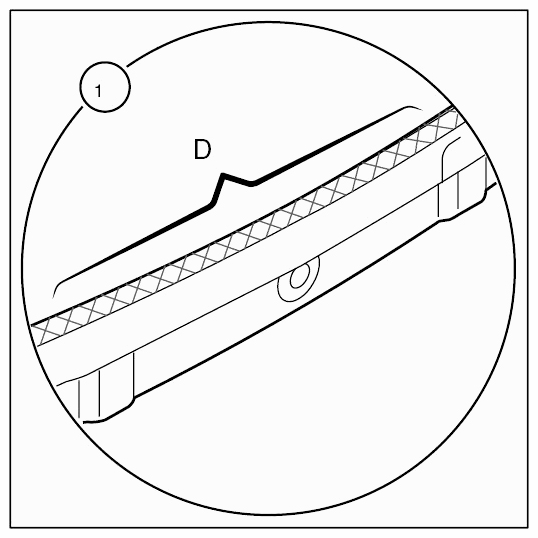

  Fig 2: Identifying Connection Flange Of Marked Areas (D)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

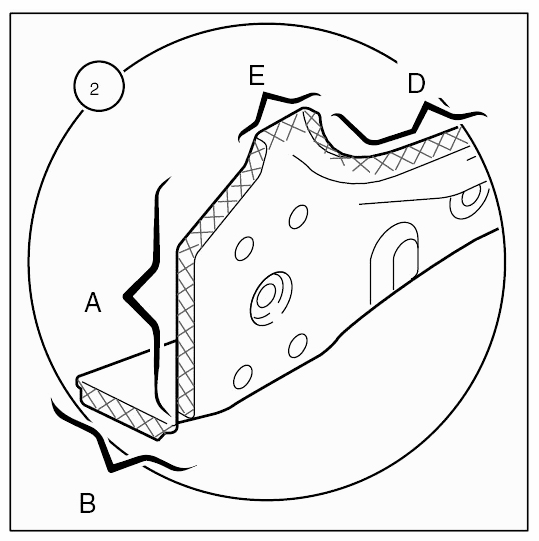

  Fig 3: Identifying Connection Flange Of Marked Areas (A, B, E And D)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

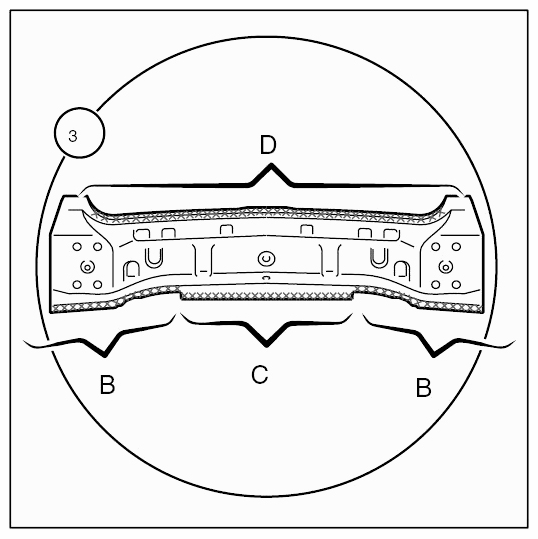

  Fig 4: Identifying Connection Flange Of Marked Areas (B, C And D)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

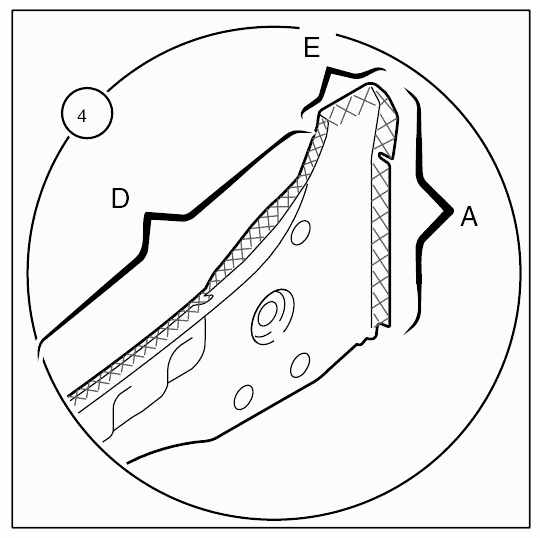

  Fig 5: Identifying Connection Flange Of Marked Areas (A, D And E)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Coat spot-weld flange areas with zinc powder paint.
1. 2.1. Coat all spot-weld flange areas with zinc powder paint (areas -A, B-, -C, D- ).
