Removing Threaded Bush For Seat Connection

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

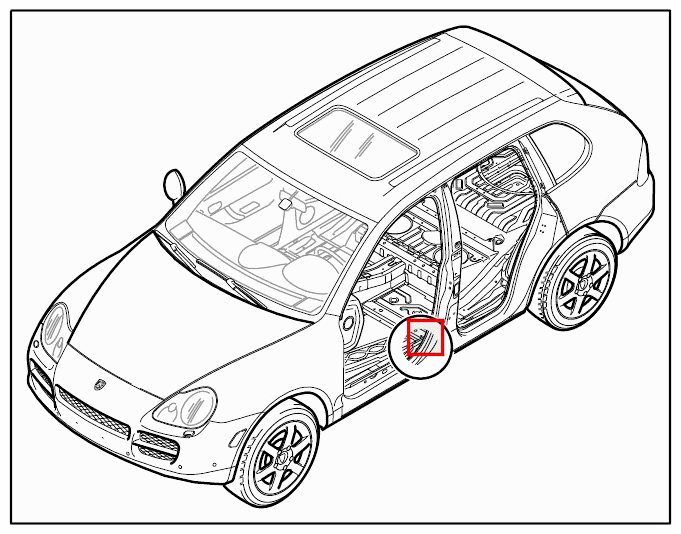

Fig 1: Identifying Threaded Bush For Seat Connection

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drilling the drain hole out
1. 1.1. On the extension of the seat cross member, use a conical shell reaming drill Nr.128 to bore out the diameter of the drain hole to the dimension -A- = 30 mm.

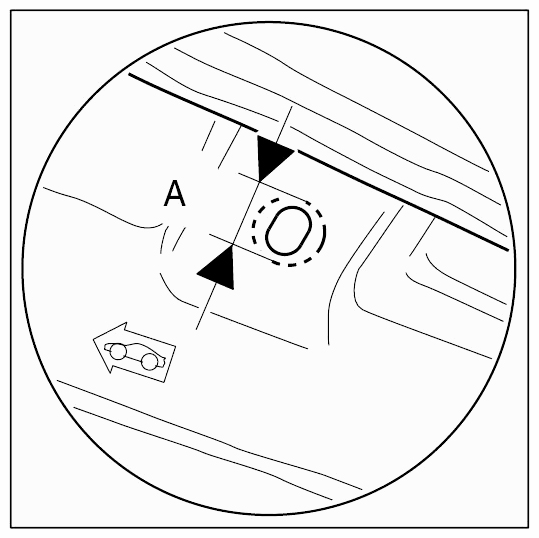

  Fig 2: Identifying Drain Hole Dimension
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove burrs from the edges of the hole.

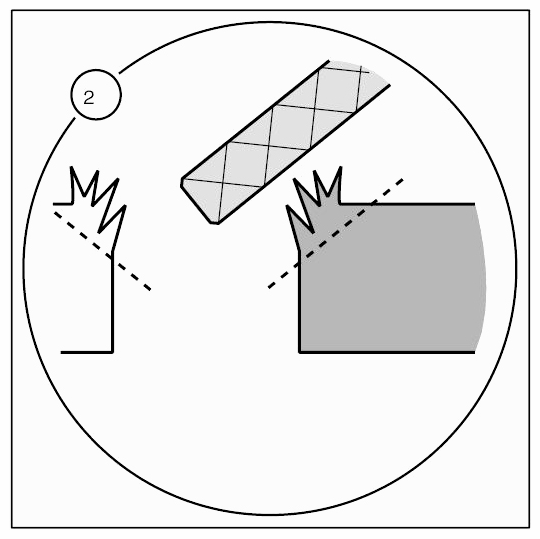

Fig 3: Identifying Burrs From Edges Of Hole
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Separate welded joints
1. 3.1. Drill out a connection between the seat cross member and the threaded insert using a spotweld drill Nr.129 .

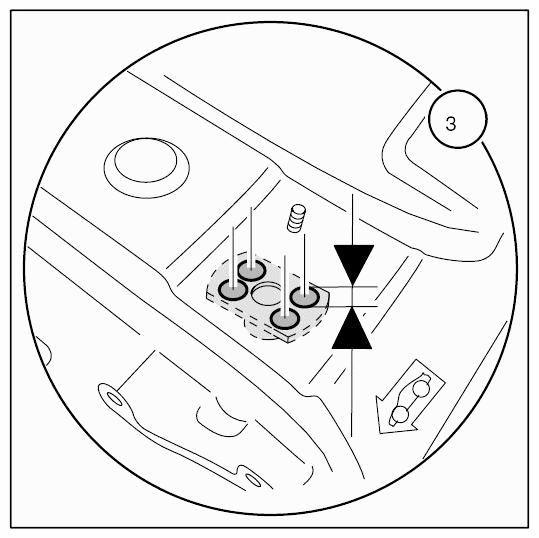

  Fig 4: Identifying Welded Joints
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Removing threaded bush.
1. 4.1. Take out the old threaded bush -1- through the widened opening.

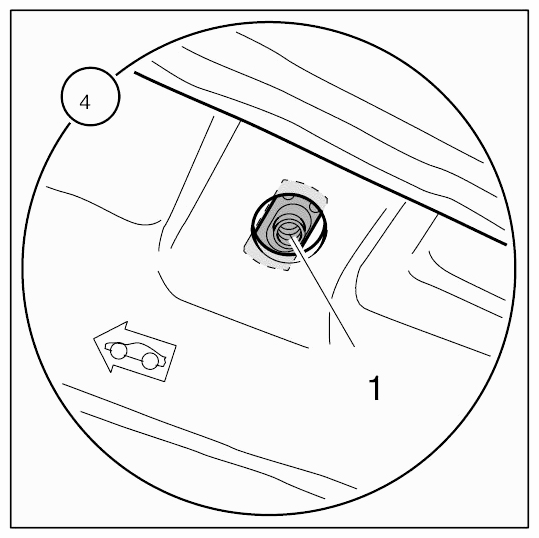

  Fig 5: Identifying Threaded Bush
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

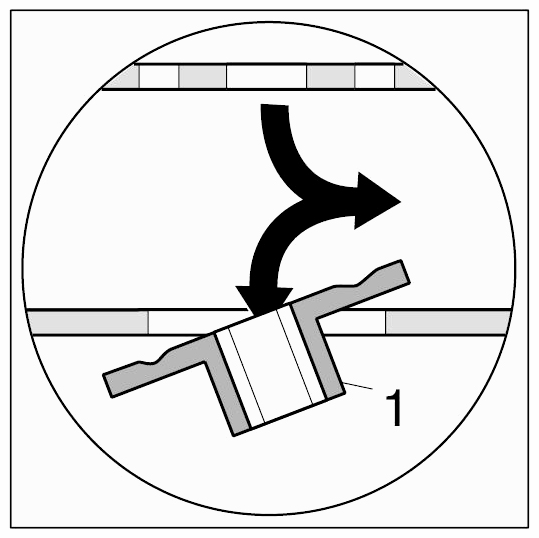

  Fig 6: Removing Threaded Bush
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
