Installing Outer Side Member Reinforcement

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

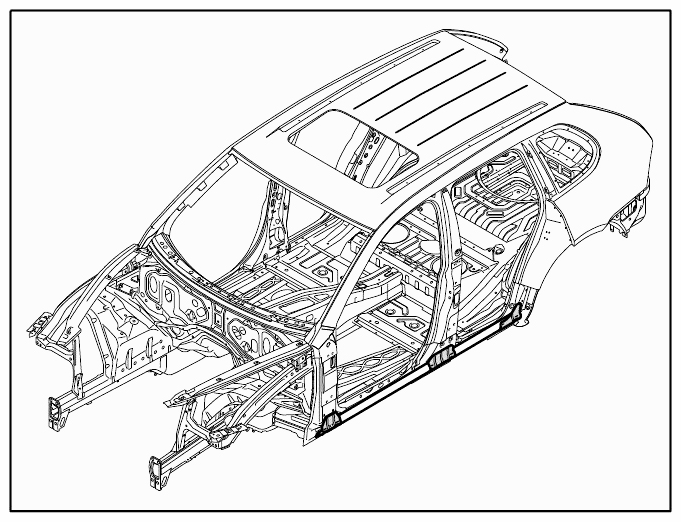

Fig 1: Identifying Outer Side Member Reinforcement

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fit lower side member reinforcement to the body.
1. 1.1. Fit the lower side member reinforcement to the body and secure with tensioning clips. When fitting, align the reference holes of the lower side member reinforcement and pillar reinforcement -arrow- .

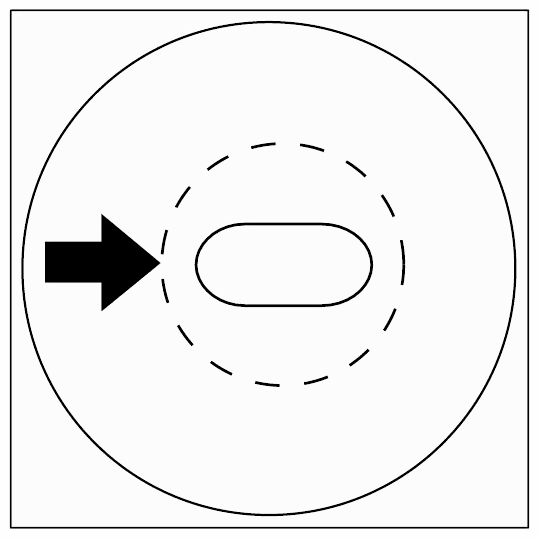

  Fig 2: Locating Lower Side Member And Pillar Reinforcement
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Inert gas arc weld the lower side member.
1. 2.1. Plug-weld the lower side member in the areas -A- , -B- and -C- under shielding gas.

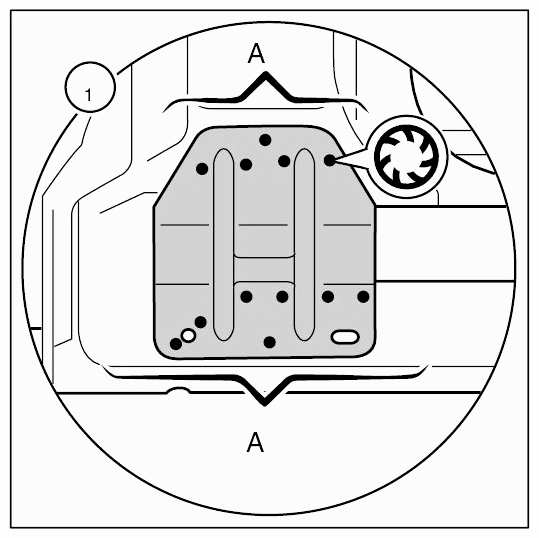

  Fig 3: Identifying Plug-Weld Lower Side Member In Areas (A)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

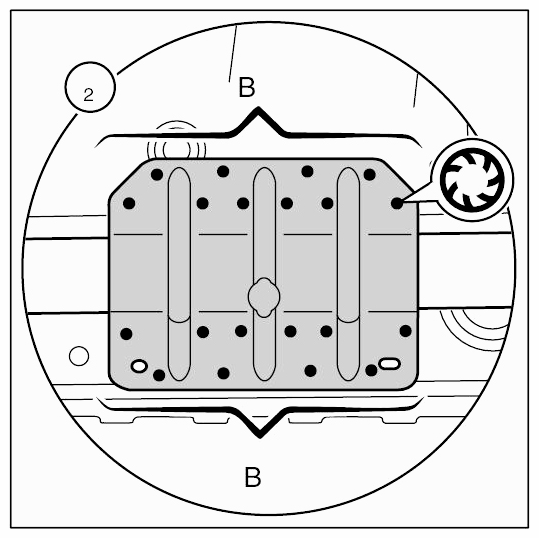

  Fig 4: Identifying Plug-Weld Lower Side Member In Areas (B)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

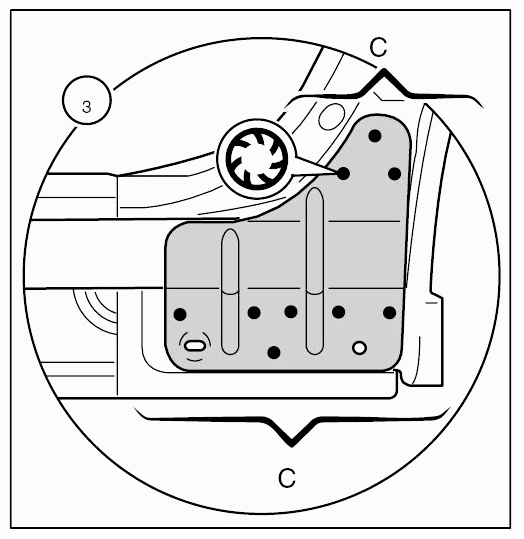

  Fig 5: Identifying Plug-Weld Lower Side Member In Areas (C)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clean spot-welded joints and sheetmetal flanges with a wire brush.
Prime flange areas with 2K primer.
Seal flange areas with body sealant.
Install lower side member.
1. 6.1. Replacing outer lower side member
