Installing Control Unit For Memory Seat Adjustment

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

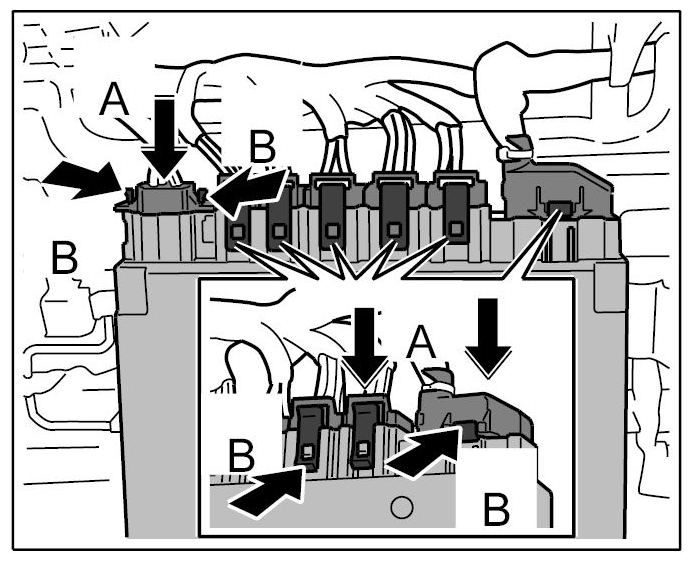

Push in the connectors -arrows A- until the locking tabs -B- are felt to engage.

Fig 1: Inserting Connectors Of Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

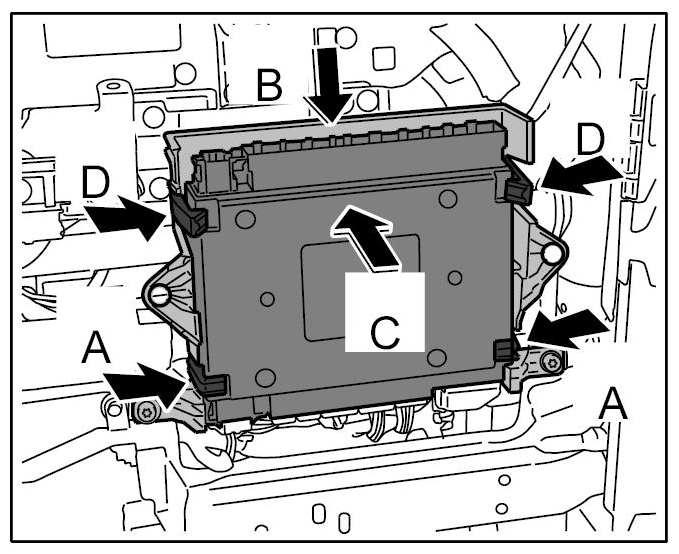

Push control unit into rear locking tabs -arrows A- (-arrow B- ).

Fig 2: Installing Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

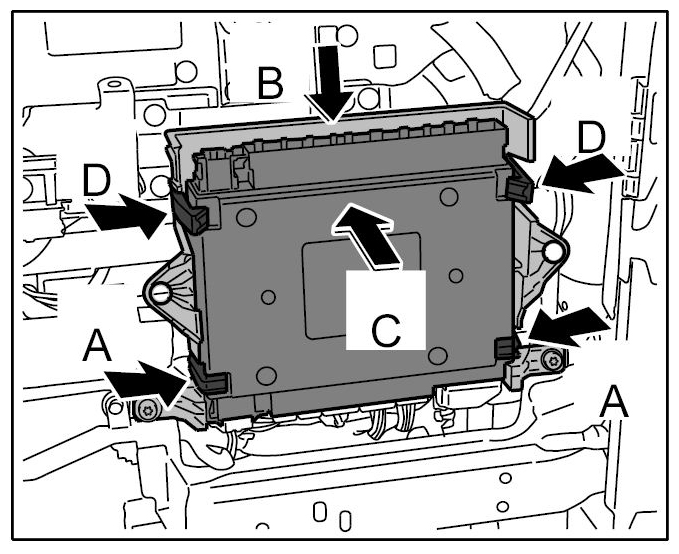

Press control unit into holder -arrow C- until the locking tabs -arrows D- are felt to engage.

Fig 3: Installing Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

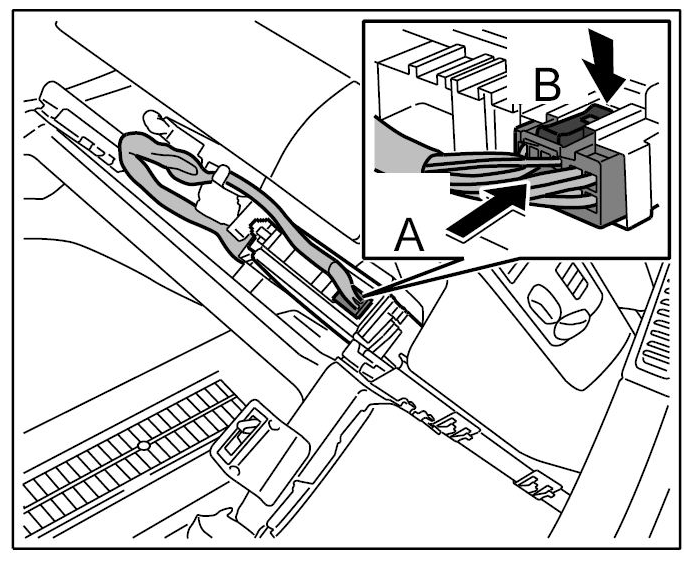

Insert the plug -arrow A- until the locking tabs -Stecker B- are felt to engage.

Fig 4: Inserting Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

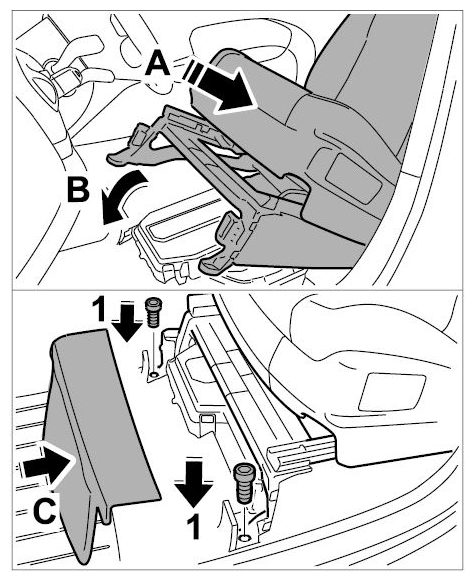

Move seat in folded position backwards and fold forward.

Fig 5: Folding Seat Forward
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Incorrect handling of safety bolts
- Danger of injury
- Loss of torque
→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.
Screw in fastening screws -arrows 1- and tighten to the specified tightening torque. → Tightening torque: 45 Nm (33 ft lbs.)
Fold back the carpet sections.
Clip in front seat trim -arrow C- .

Fig 6: Folding Seat Forward
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

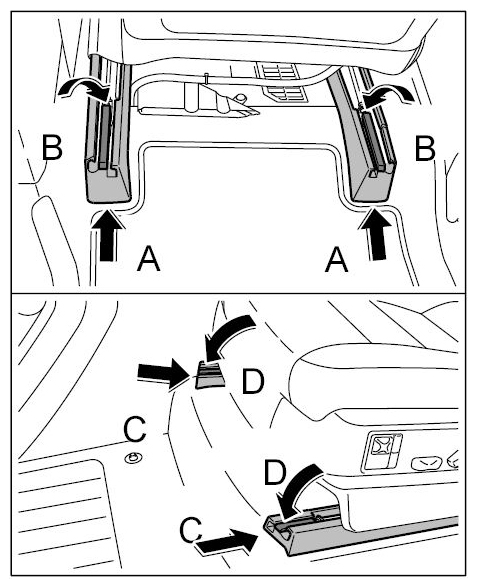

Push rear cover caps onto seat rails -arrows A- and press down the covers -arrows B- until these engage audibly.

Fig 7: Installing Seat Rail Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- In vehicles with an electrically adjustable steering column, the control unit for memory seat adjustment must be re-initialised and locked. → Initialising And Locking Control Unit For Memory Seat Adjustment

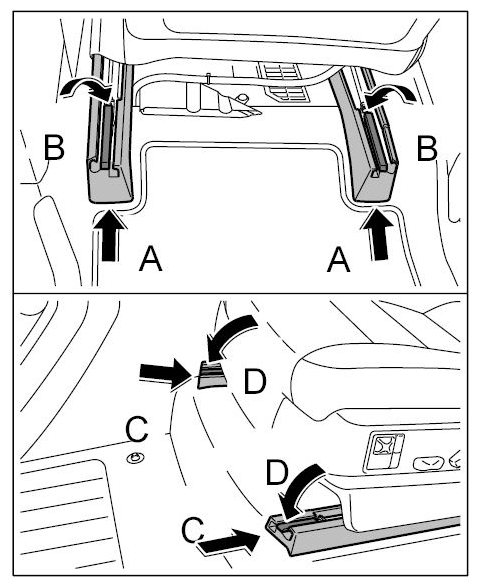

Push front cover caps onto seat rails -arrows C- and press down the covers -arrows D- until these engage audibly.

Fig 8: Installing Seat Rail Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
