Installing Motor For Rear Vertical Adjustment

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

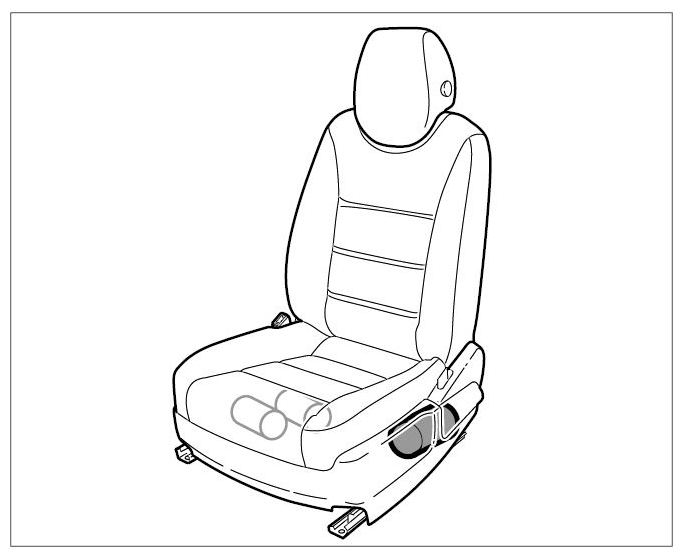

Fig 1: Identifying Rear Vertical Adjustment Motor Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

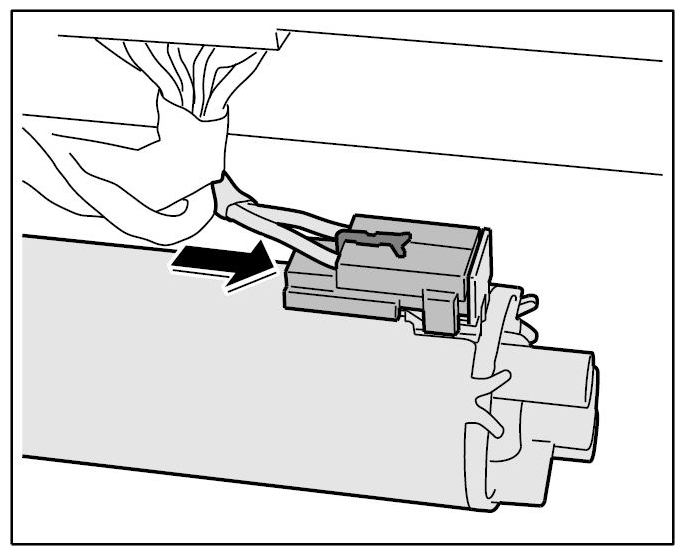

Connect connector.

Fig 2: Installing Connector To Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

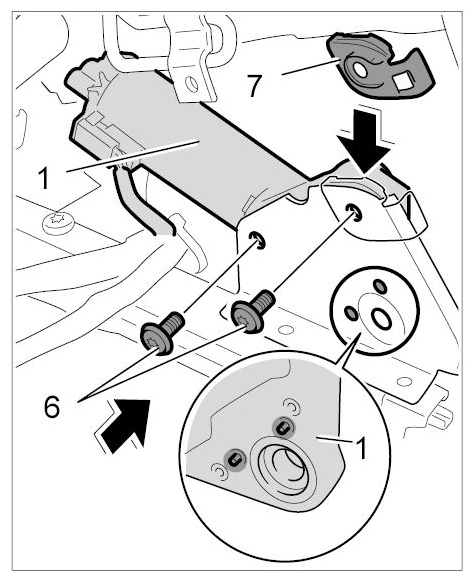

Install motor.
1. 2.1. Insert motor -1- into the seat frame using the positioning pins and align it.
2. 2.2. Screw in fastening screws -6- and tighten to the specified tightening torque.
  → Tightening torque: 18 Nm (13 ft lbs.)+/-2 Nm (+/-1.5 ft lbs.)

  Fig 3: Installing Motor
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Fit clip -7- .

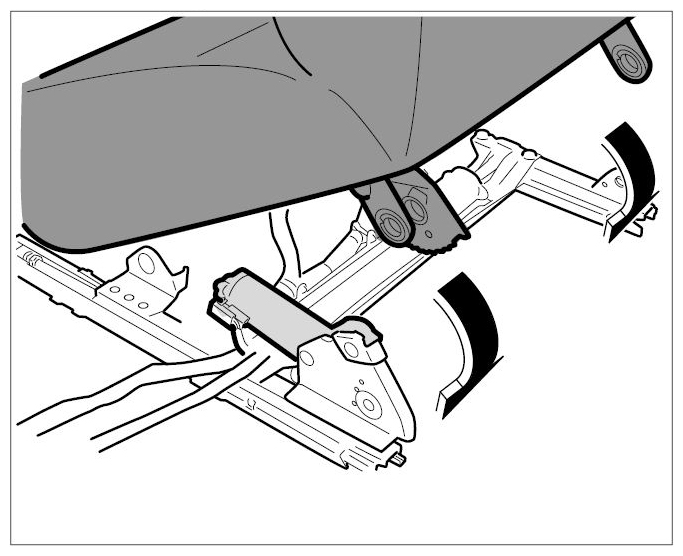

Fold down seat frame.

Fig 4: Folding Down Seat Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

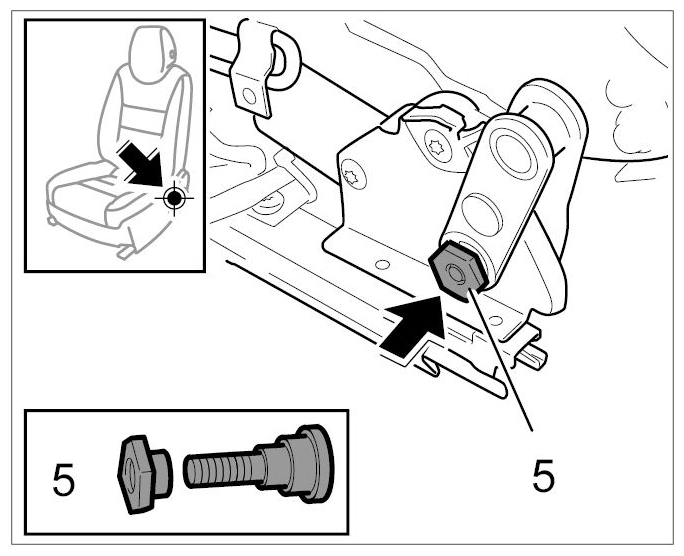

Install outer pivot axis.
1. 4.1. Insert pivot axis -5- and tighten nut to specified tightening torque.
  → Tightening torque: 28 Nm (21 ft lbs.)+/-3 Nm (+/-2.0 ft lbs.)

  Fig 5: Installing Outer Pivot Axis
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

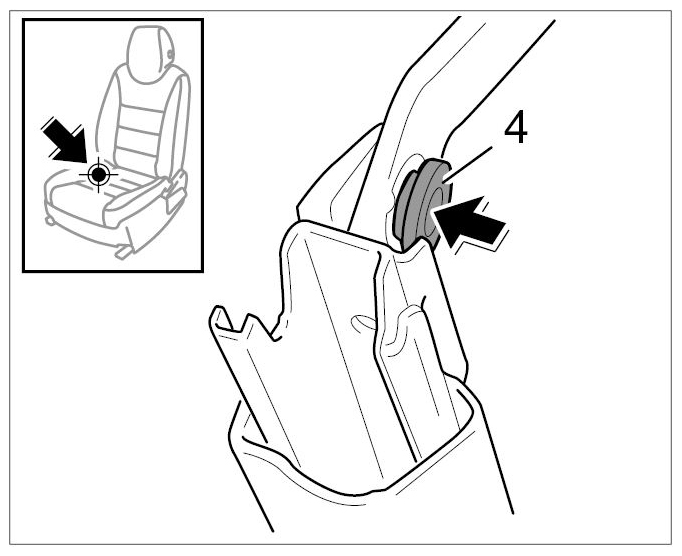

Install inner pivot axis.
1. 5.1. Insert pivot axis -4- and tighten to the specified tightening torque.
  → Tightening torque: 28 Nm (21 ft lbs.)+/-3 Nm (+/-2.0 ft lbs.)

  Fig 6: Installing Inner Pivot Axis
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

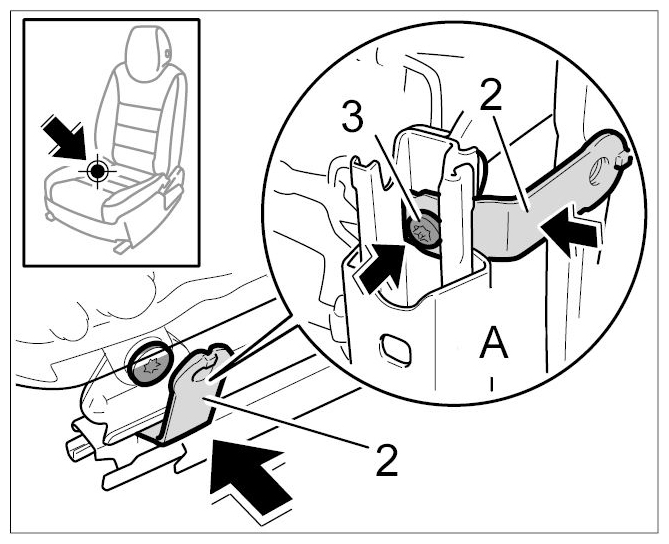

Install support.
1. 6.1. Fit support -2- on seat frame.
2. 6.2. Insert fastening screw -3- and tighten to the specified tightening torque.
  → Tightening torque: 25 Nm (19 ft lbs.)+/-2 Nm (+/-1.5 ft lbs.)

  Fig 7: Installing Support
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
