Technical Values
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screw securing motor | -7- | Tightening torque | 12 Nm (9 ft lbs.) | +/-2 Nm (+/- 1.5 ft lbs.) | |
| Fastening screw for adjustment spindle | -5- | Tightening torque | 20 Nm (15 ft lbs.) | +/-2 Nm (+/- 1.5 ft lbs.) | |

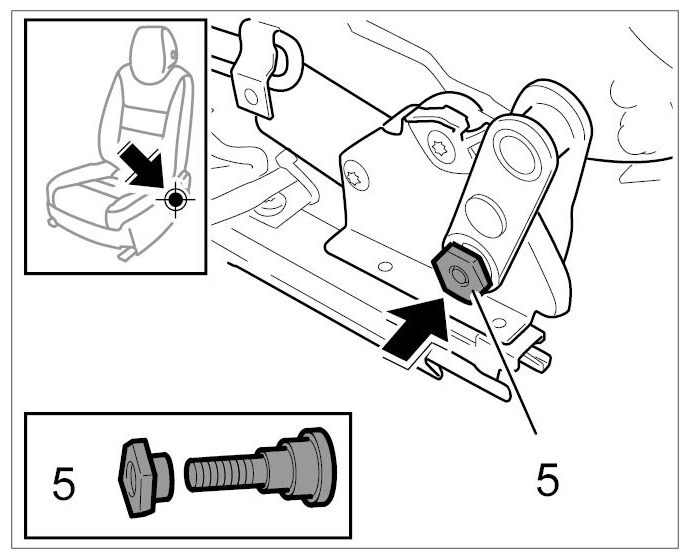

| Fastening screw (outer pivot axis) | -5- | Tightening torque | 28 Nm (21 ft lbs.) | +/-3 Nm (+/- 2.0 ft lbs.) | |
|
Installing outer pivot axis |
|||||

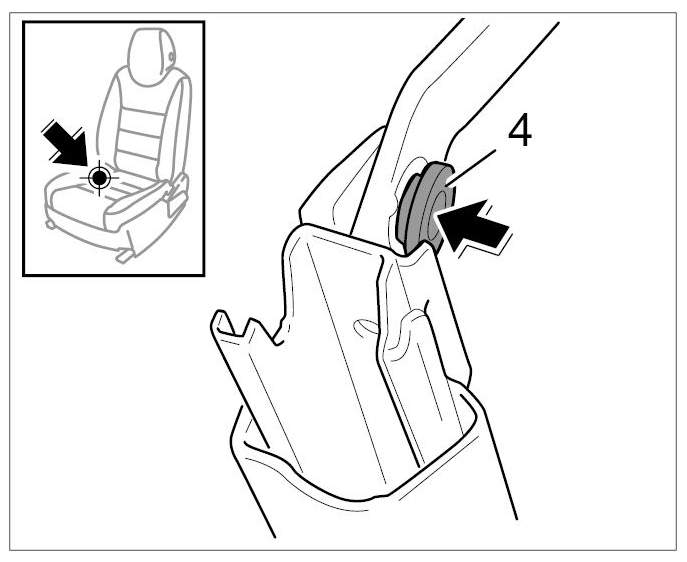

| Fastening screw (inner pivot axis) | -4- | Tightening torque | 28 Nm (21 ft lbs.) | +/-3 Nm (+/- 2.0 ft lbs.) | |
|
Installing inner pivot axis |
|||||

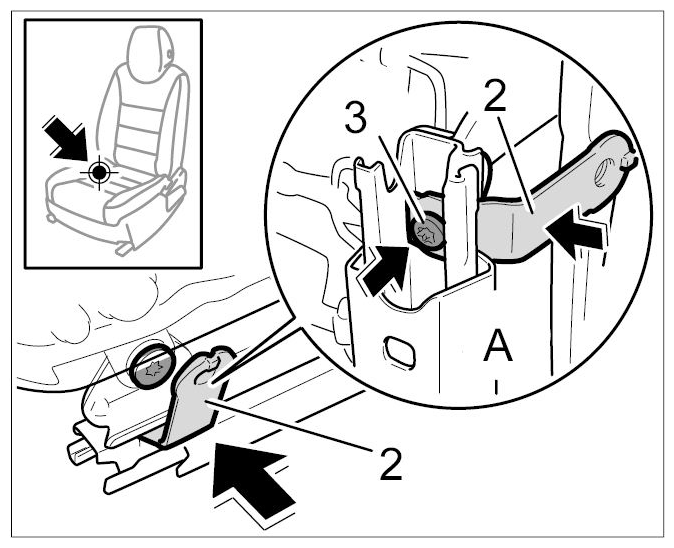

| Fastening screw securing support for seat-belt buckle | -3- | Tightening torque | 25 Nm (19 ft lbs.) | +/-2 Nm (+/- 1.5 ft lbs.) | |
|
Installing support |
|||||
