Installing Motor For Height Adjustment

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

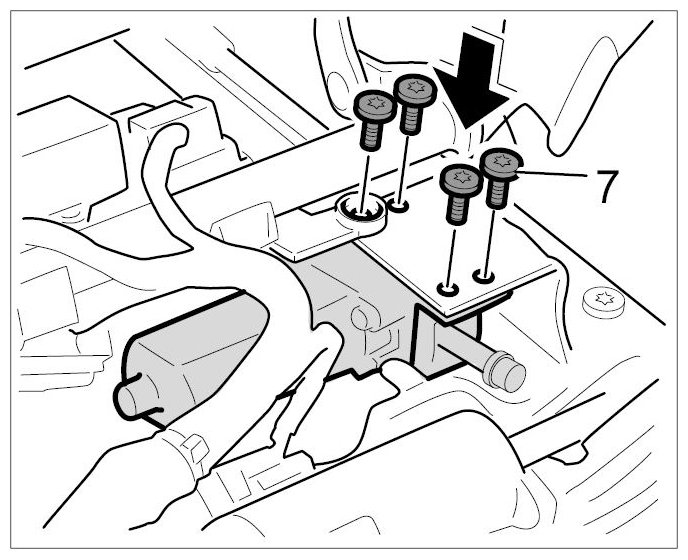

Fit motor.
Screw in fastening screws and tighten to the specified tightening torque. → Tightening torque: 12 Nm (9 ft lbs.)+/-2 Nm (+/-1.5 ft lbs.)

Fig 1: Securing Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

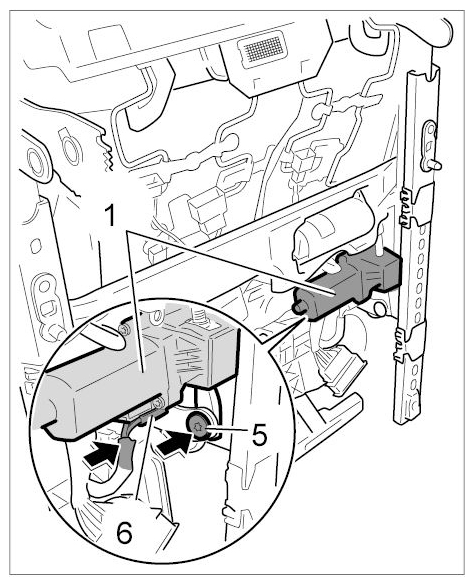

Secure adjustment mechanism.

Fig 2: Securing Adjustment Mechanism
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Screw in fastening screw -5- and tighten to the specified tightening torque.
  → Tightening torque: 20 Nm (15 ft lbs.)+/-2 Nm (+/-1.5 ft lbs.)

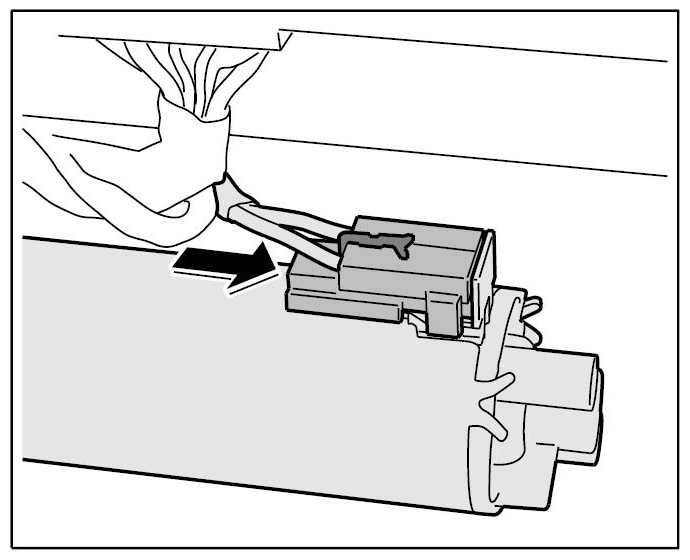

Connect connector -6- .

Fig 3: Installing Connector To Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

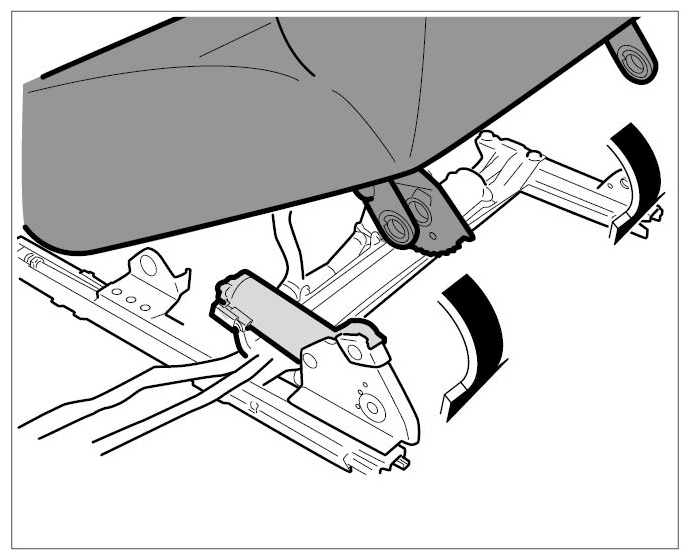

Fold down seat frame.

Fig 4: Folding Down Seat Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

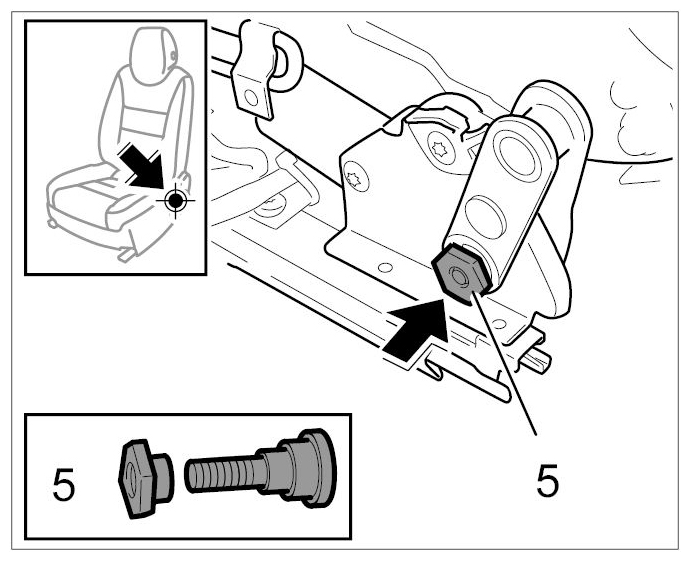

Install outer pivot axis.
1. 6.1. Insert pivot axis -5- and tighten nut to specified tightening torque.
  → Tightening torque: 28 Nm (21 ft lbs.)+/-3 Nm (+/-2.0 ft lbs.)

  Fig 5: Installing Outer Pivot Axis
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

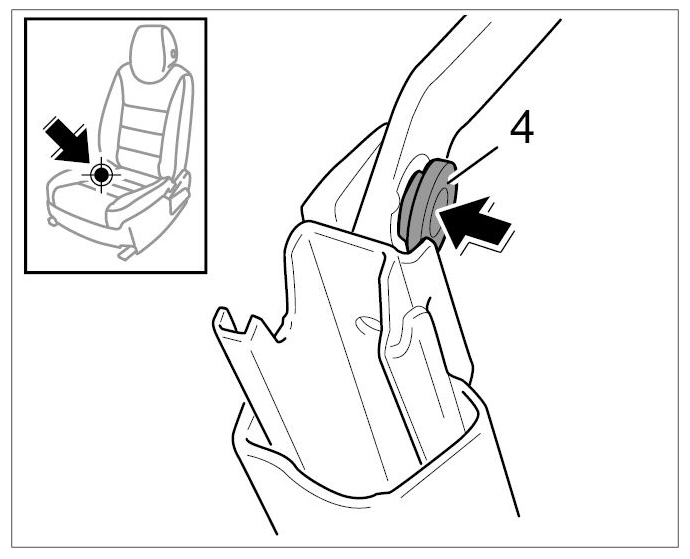

Install inner pivot axis.
1. 7.1. Insert pivot axis -4- and tighten to the specified tightening torque.
  → Tightening torque: 28 Nm (21 ft lbs.)+/-3 Nm (+/-2.0 ft lbs.)

  Fig 6: Installing Inner Pivot Axis
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

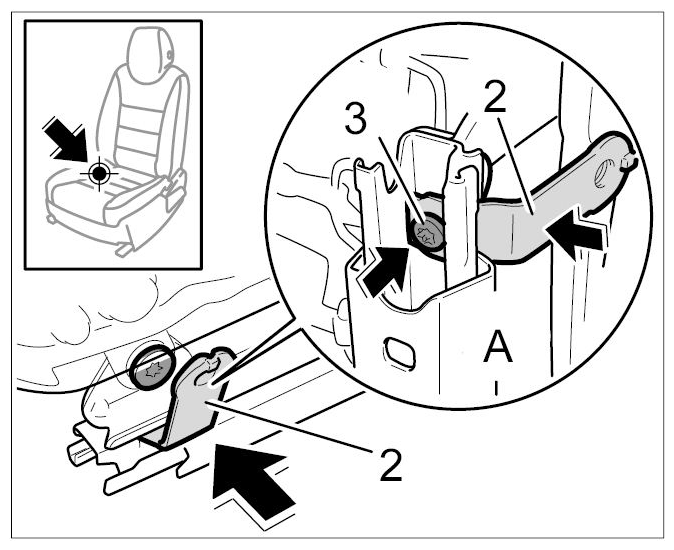

Install support.
1. 8.1. Fit support -2- on seat frame.
2. 8.2. Insert fastening screw -3- and tighten to the specified tightening torque.
  → Tightening torque: 25 Nm (19 ft lbs.)+/-2 Nm (+/-1.5 ft lbs.)

  Fig 7: Installing Support
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
