Removing Motor For Seat Adjustment

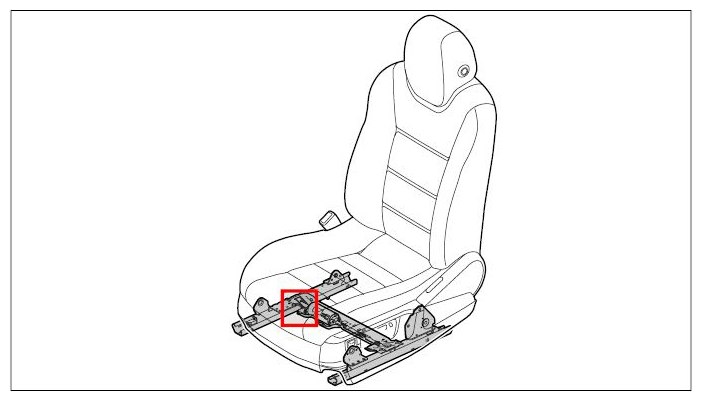

Fig 1: Identifying Installation Position Of Motor For Seat Adjustment

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The motor for seat adjustment is not available individually as a spare part. The motor is only supplied together with the seat adjustment frame and must be replaced together with the frame.

Information

To prevent the complete weight of the seat from lying on the pivot axes for front vertical adjustment, always observe the following points:

• Place a suitable protective cover on the workbench.
• Get another person to help you remove the seat from the mounting frame and place the back of the backrest on the workbench.

Information

Only for vehicles with seat memory.

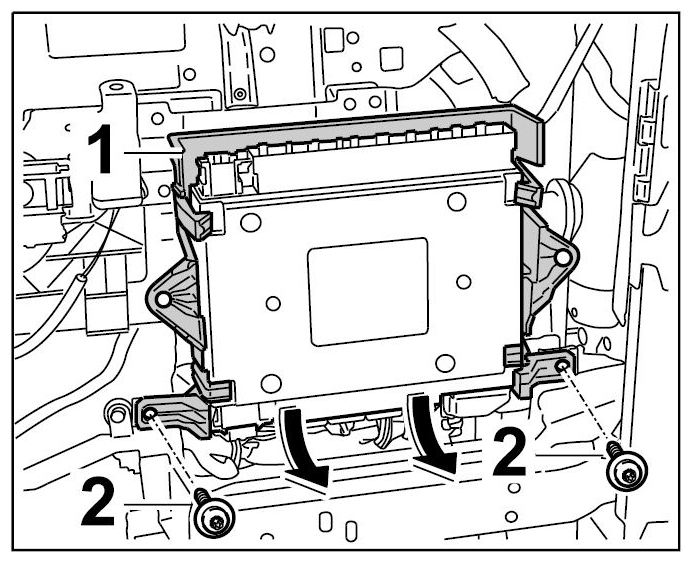

1. Loosen holder for seat memory control unit -1-  at the fastening screws -2-  and lift slightly -arrows-  .
   Fig 2: Releasing Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Release wire harness for seat.

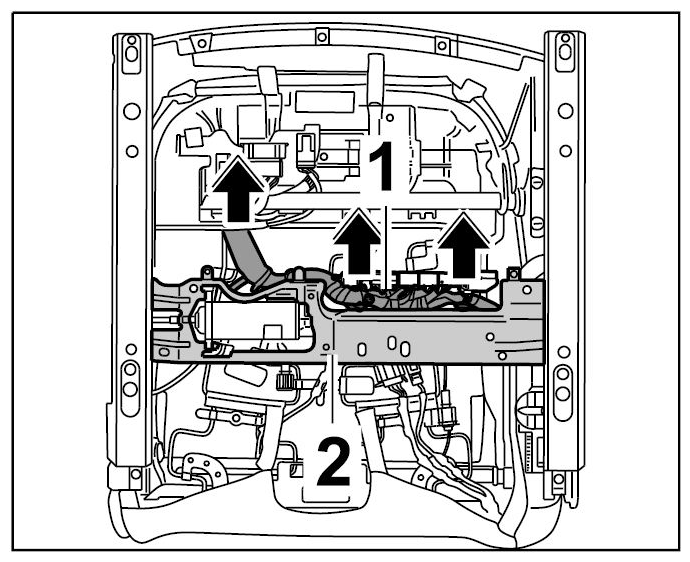

   Fig 3: Removing Tie-Wrap

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

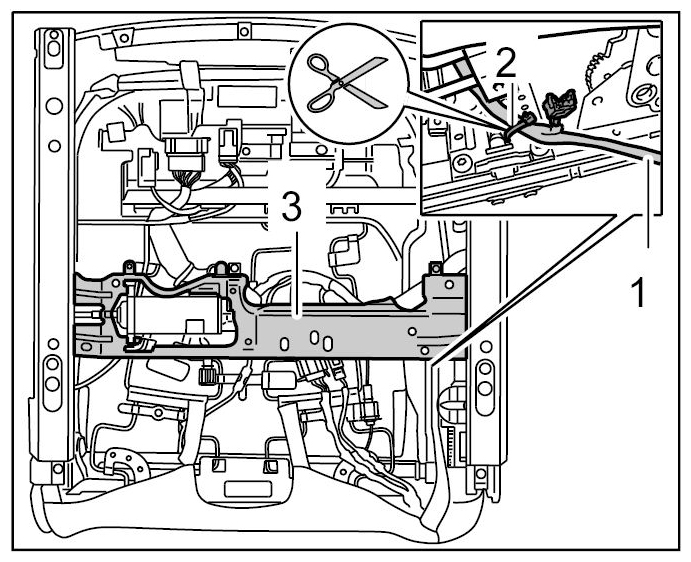

   1. 2.1. Release wire harness -1-  by opening the tie-wrap -2-  on the retaining frame -3-  .
   2. 2.2. Unclip wire harness -1-  at the retaining frame -2-  (-arrows-  ).
      Fig 4: Releasing Wire Harness

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

      • Disconnect the connector axially from the motor. Otherwise the retaining lugs can break off and this can prevent the connector from locking securely.

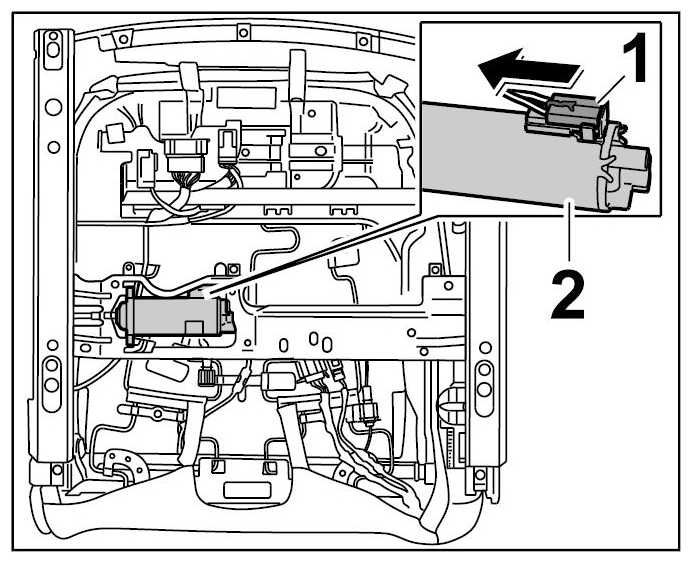

   3. 2.3. Pull off connector -1-  on motor for seat adjustment -2-  (-arrow-  ).
      Fig 5: Pulling Off Seat Adjustment Motor Connector

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Loosen inner pivot axis.

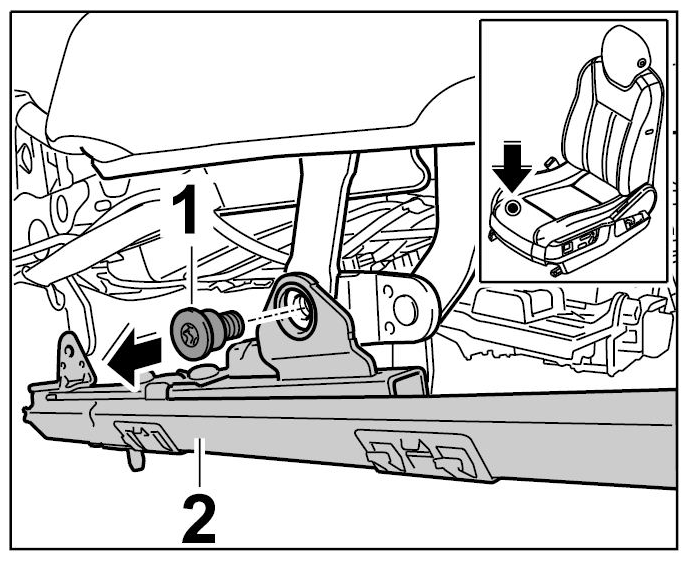

   Fig 6: Loosening Inner Pivot Axis

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 3.1. Unscrew fastening screw -1-  from the seat adjustment frame -2-  (-arrow-  ).
4. Loosen outer pivot axis.

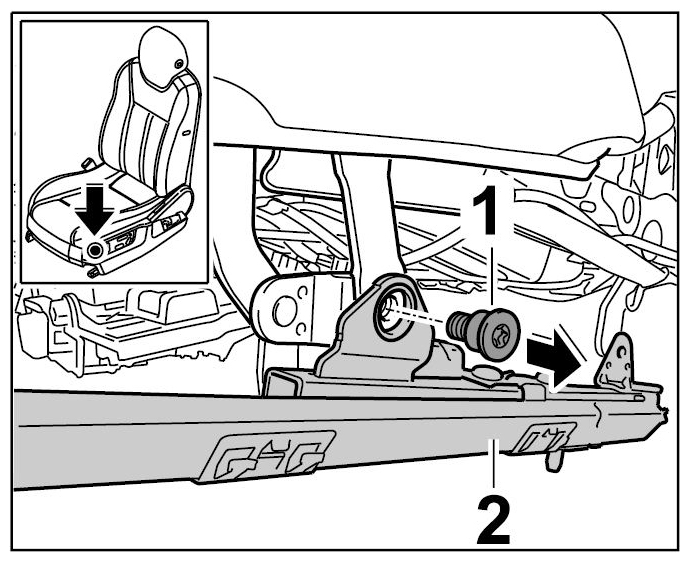

   Fig 7: Loosening Outer Pivot Axis

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 4.1. Unscrew fastening screw -1-  from the seat adjustment frame -2-  (-arrow-  ).

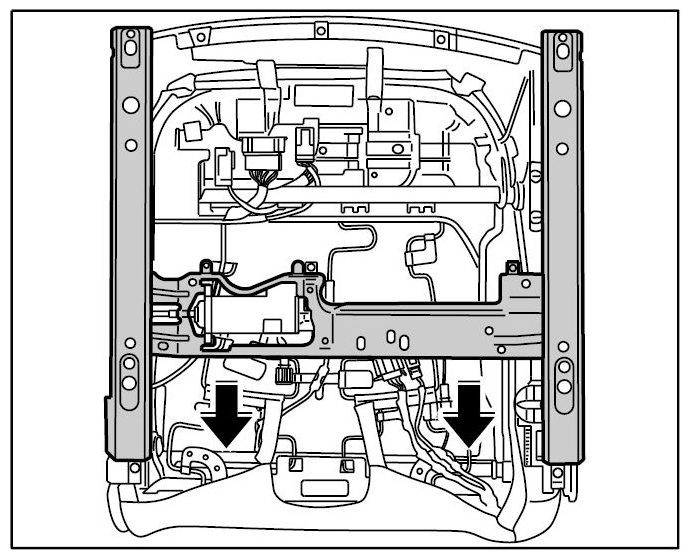

5. Remove seat adjustment frame from the seat frame -arrows-  .
   Fig 8: Removing Seat Adjustment Frame

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
