Installing Motor For Seat Adjustment

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

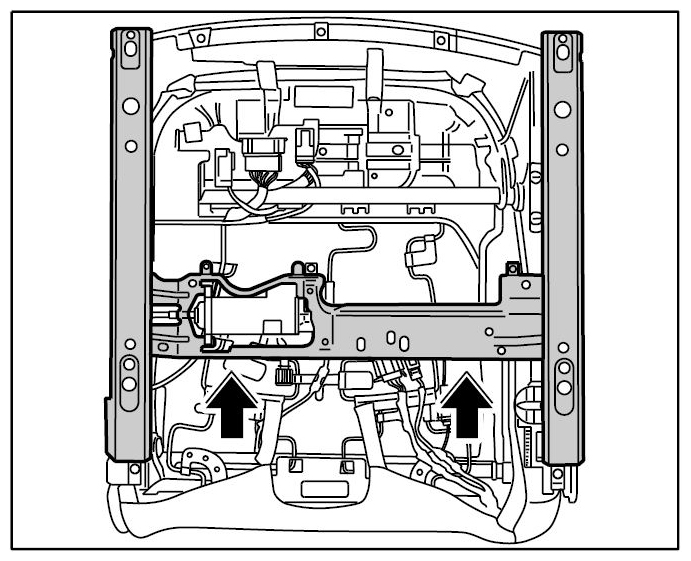

Position seat adjustment frame on the seat frame and align it -arrows- .

Fig 1: Installing Seat Adjustment Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure outer pivot axis.

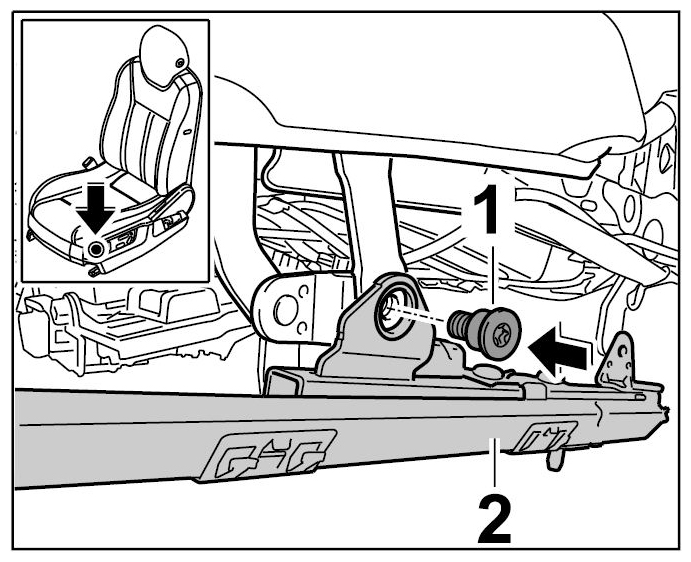

1. 2.1. Secure seat adjustment frame -2- with the fastening screw -1- (-arrow- ).
  → Tightening torque: 28 Nm (21 ft lbs.)+/-3 Nm (+/-2 ft lbs.)

  Fig 2: Securing Outer Pivot Axis
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install inner pivot axis.

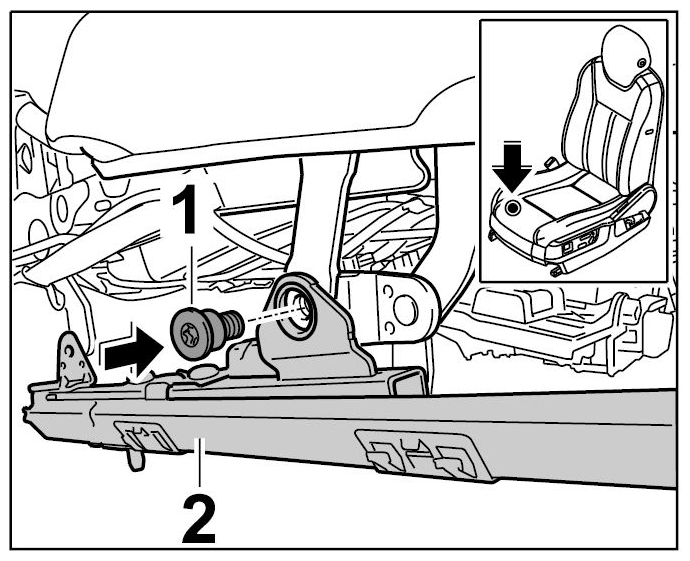

1. 3.1. Secure seat adjustment frame -2- with the fastening screw -1- (-arrows- ).
  → Tightening torque: 28 Nm (21 ft lbs.)+/-3 Nm (+/-2 ft lbs.)

  Fig 3: Securing Inner Pivot Axis
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure wire harness for seat.

Fig 4: Plugging Seat Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

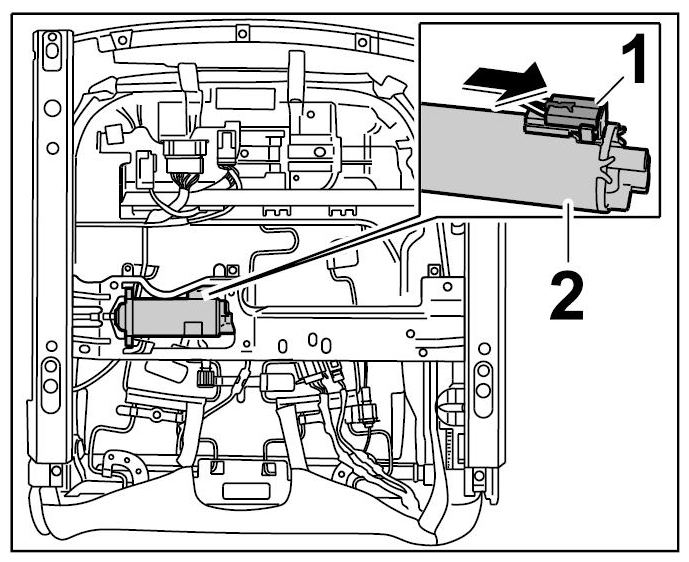

1. 4.1. Plug in connector -1- on motor for seat adjustment -2- (-arrows- ).

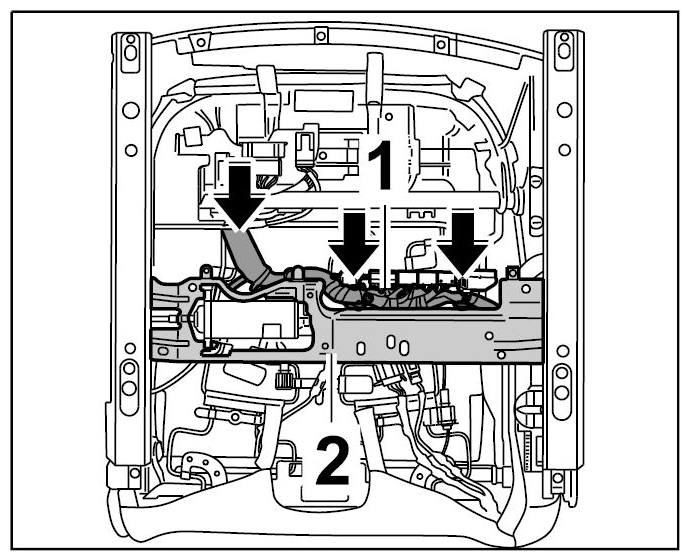

2. 4.2. Clip in wire harness -1- at the inside of the retaining frame -2- (-arrows- ).

  Fig 5: Securing Seat Wire Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

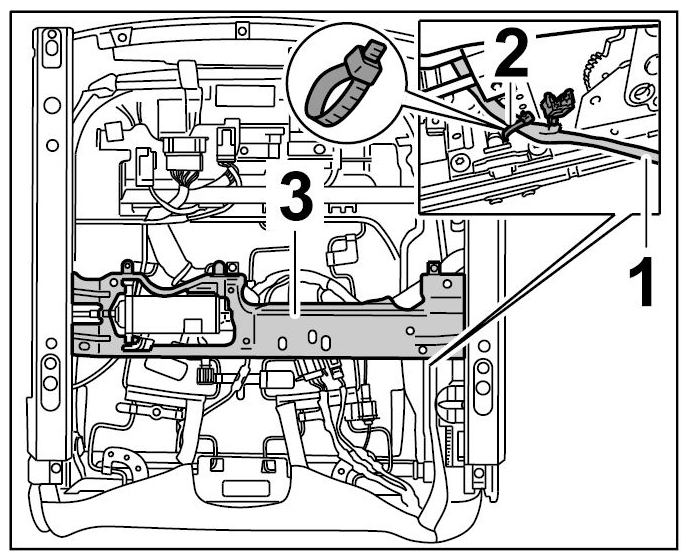

3. 4.3. Secure wire harness -1- with the tie-wrap -2- to the retaining frame -3- .

  Fig 6: Securing Wire Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  Only for vehicles with seat memory.

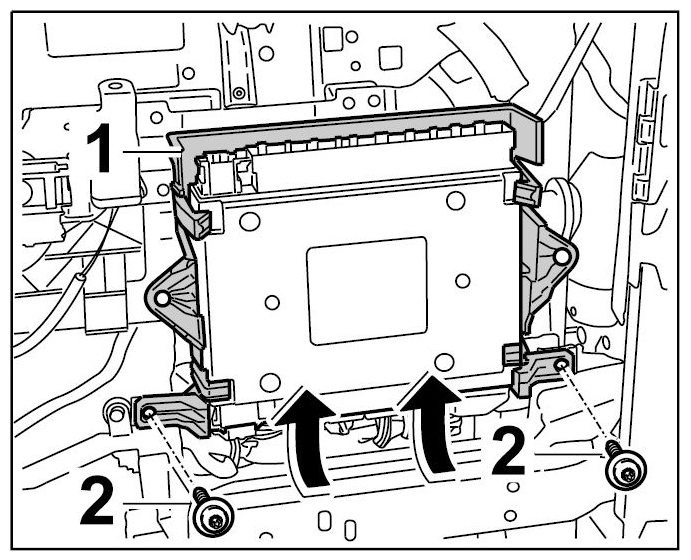

Align holder for seat memory control unit -1- (-arrows- ) and secure with the fastening screws -2- .

Fig 7: Securing Seat Memory Control Unit Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit seat on the mounting frame with the help of another person.
