Removing Switch For Seat Adjustment

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

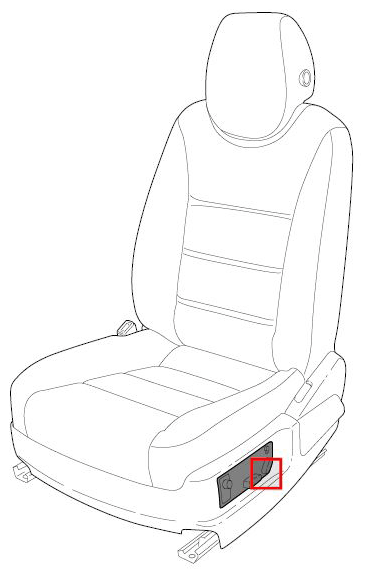

Fig 1: Overview Of Switch For Seat Adjustment
G09413817Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -Arrows A-  and remove switch for seat adjustment -Arrow B-  .

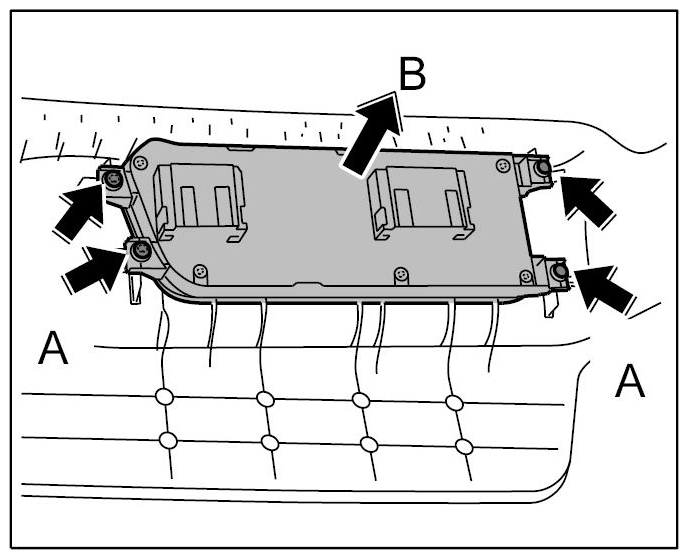

    Fig 2: Removing Switch For Seat Adjustment
    G09413818Courtesy of PORSCHE CARS NORTH AMERICA, INC.
