Removing Lock For 2/3-Split Folding Rear Backrest

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

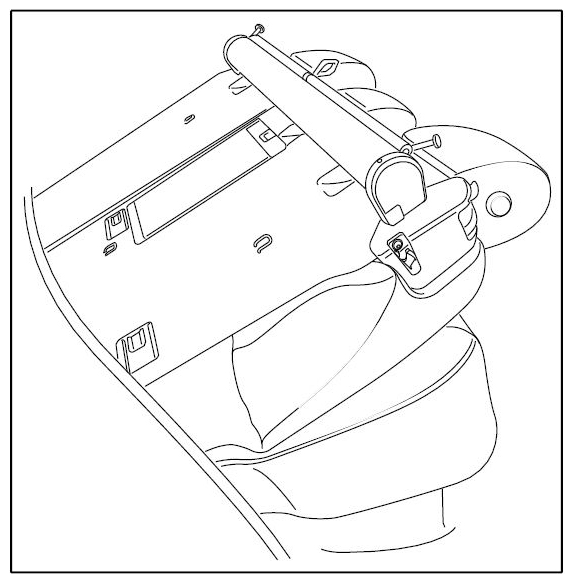

Fig 1: Identifying 2/3-Split Folding Rear Backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fold rear backrest forward.

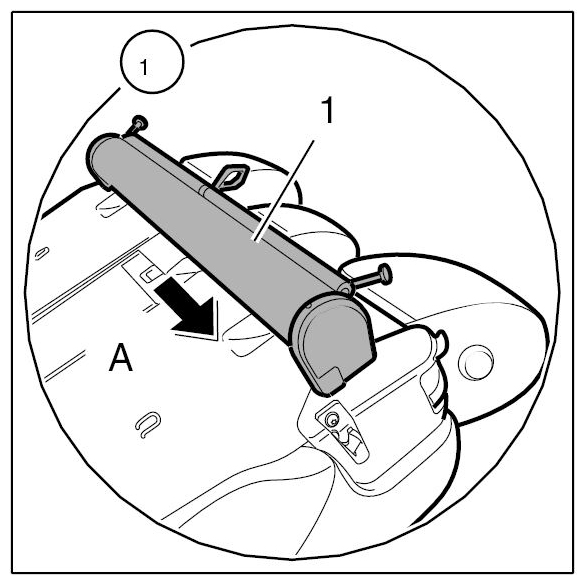

Remove net partition: Pull net partition -1- out to the right -Arrow A- .

Fig 2: Removing Rear Backrest Net Partition
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

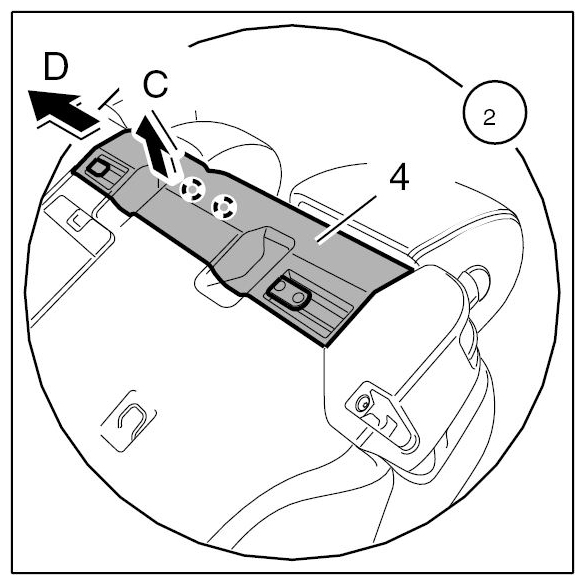

Unclip cover for rear backrest -4- at fastening clips -Arrow C- and pull out to the left -Arrow D- .

Fig 3: Unclipping Rear Backrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

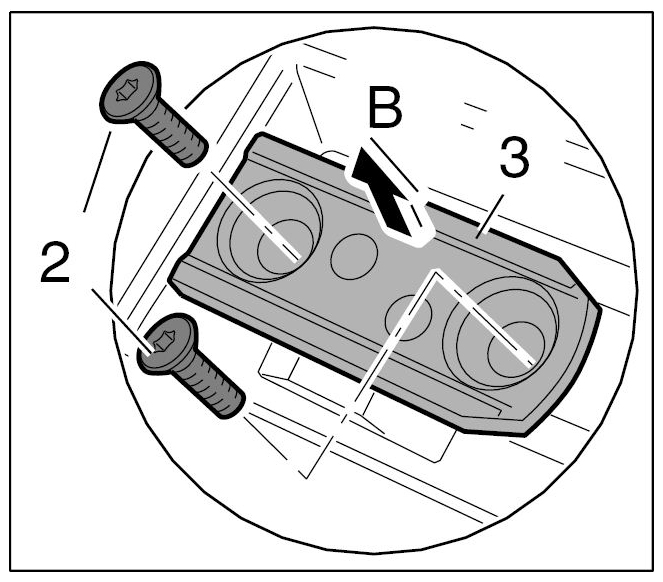

Undo fastening screws -2- .

Fig 4: Removing Rear Backrest Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

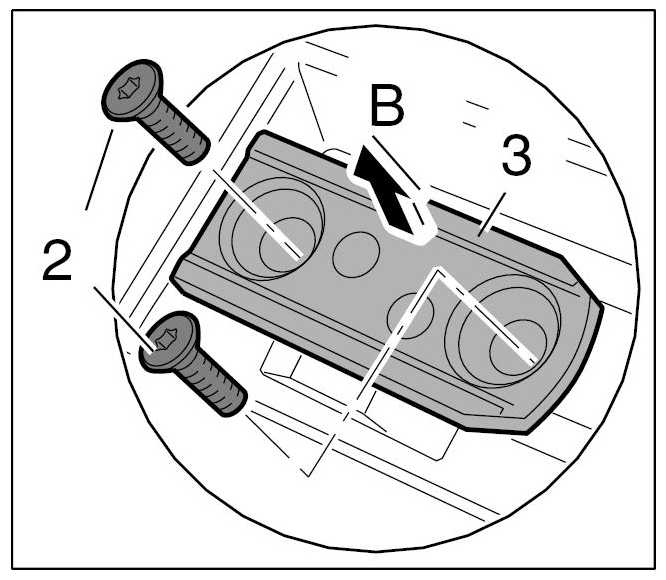

Remove sliding pads for net partition -3- -Arrow B- .

Fig 5: Removing Sliding Pads For Net Partition
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

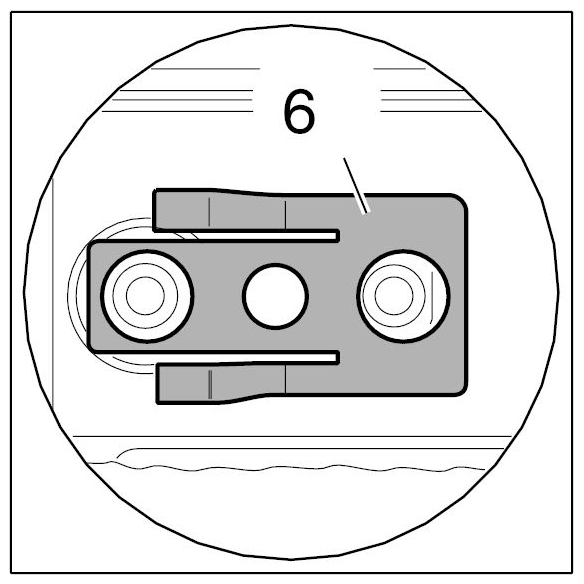

Remove retaining clips -6- .

Fig 6: Identifying Rear Backrest Retaining Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cover of lock for rear backrest.

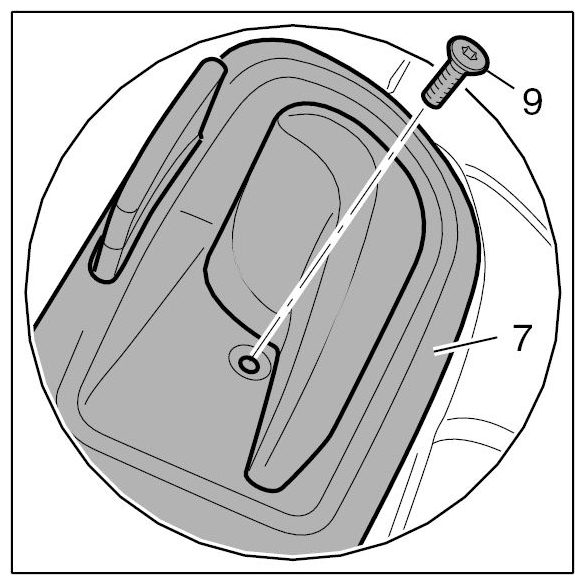

1. 7.1. Unscrew fastening screws -8- , -9- .

  Fig 7: Removing Rear Backrest Lock Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 8: Identifying Rear Backrest Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

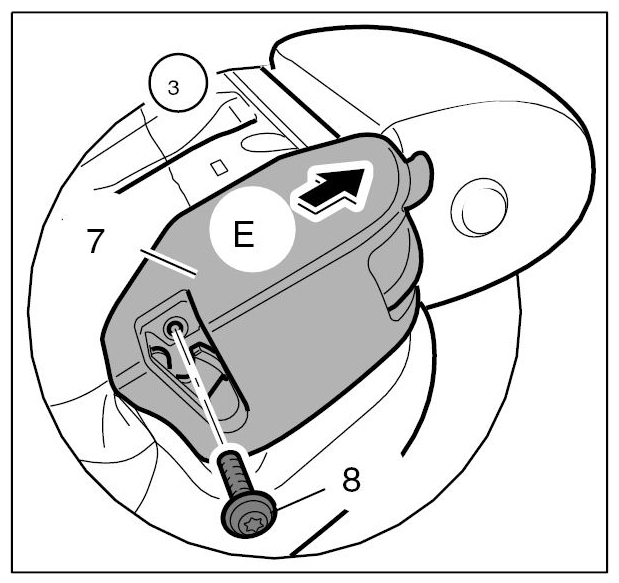

Pull out cover of lock for rear backrest -7- -Arrow E- .

Fig 9: Pulling Out Cover Of Lock For Rear Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

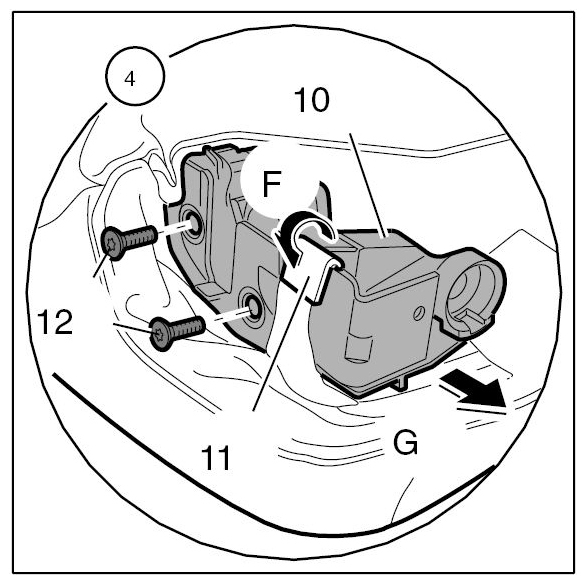

Disengage cover piping -11- -Arrow F- .

Fig 10: Disengaging Cover Piping
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Undo fastening screws -12- .

Fig 11: Removing Rear Backrest Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull out lock for backrest -10- -Arrow G- .

Fig 12: Removing Backrest Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
