Installing Lock For 2/3-Split Folding Rear Backrest

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

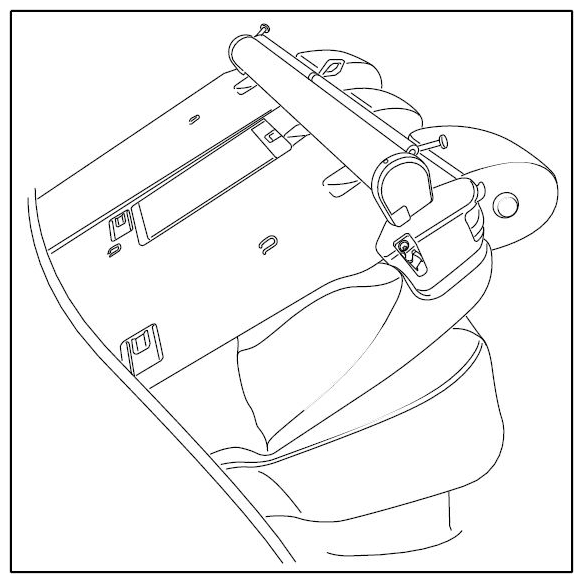

Fig 1: Identifying 2/3-Split Folding Rear Backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

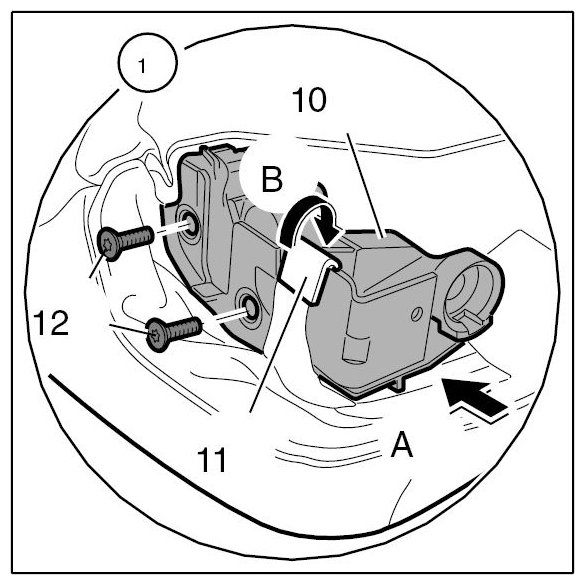

Install lock for rear backrest: Insert lock for backrest -10- -Arrow A- .

Fig 2: Installing Rear Backrest Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in and tighten fastening screws -12- . → Tightening torque: 20 Nm (15 ft lbs.)+/-2 Nm (+/-1.5 ft lbs.)

Fig 3: Installing Rear Backrest Lock Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engage cover piping -11- -Arrow B- .

Fig 4: Engaging Cover Piping
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install cover of lock for rear backrest.

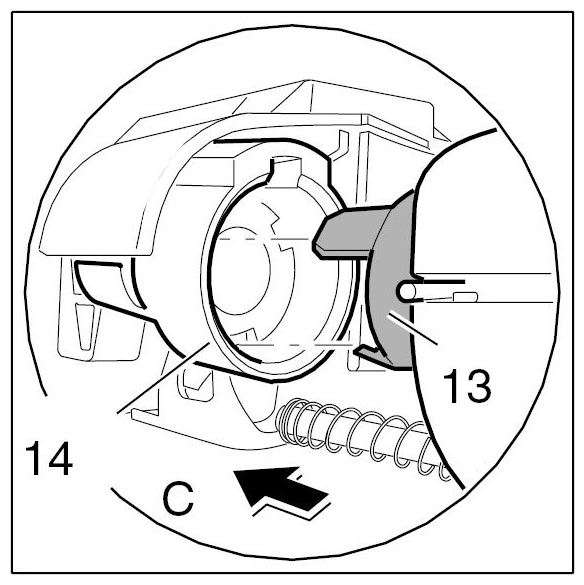

1. 4.1. Insert cover of lock for rear backrest -7- -Arrow C- . The release lever guides -13- must engage perfectly in the supports of the locking mechanism -14- .

  Fig 5: Identifying Rear Backrest Lock Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 6: Installing Release Lever Guide Into Locking Mechanism
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

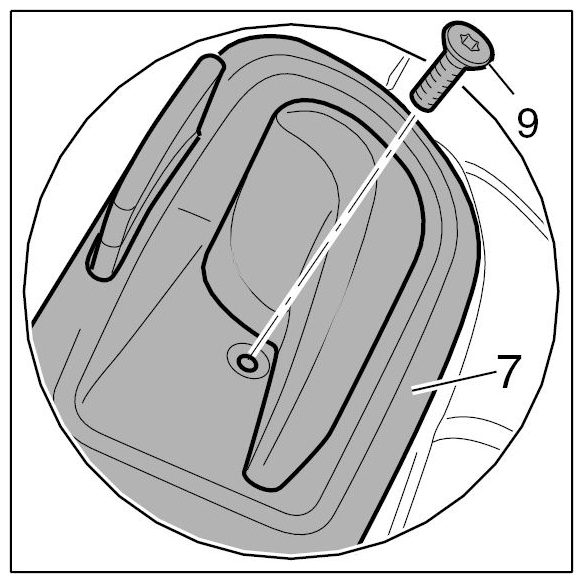

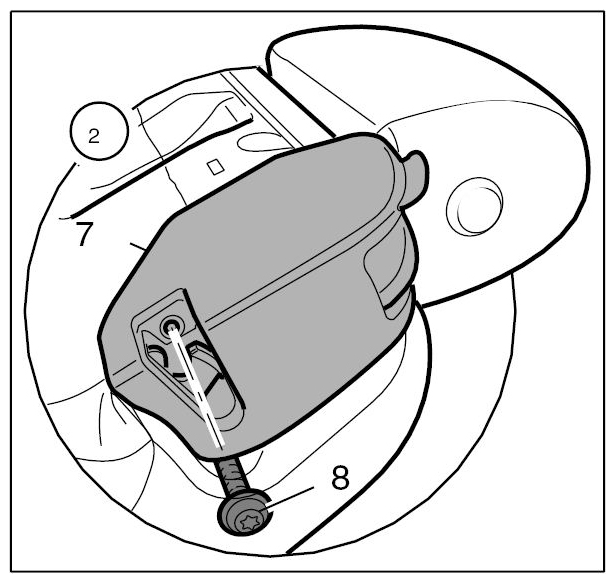

Screw in fastening screws -8- -9- and tighten to the specified torque. → Tightening torque: 4.5 Nm (3.5 ft lbs.)+/- 0.5 Nm (+/-0.5 ft lbs.) → Tightening torque: 2.5 Nm (2.0 ft lbs.)

Fig 7: Identifying Rear Backrest Lock Cover Fastening Screws (1 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 8: Identifying Rear Backrest Lock Cover Fastening Screws (2 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

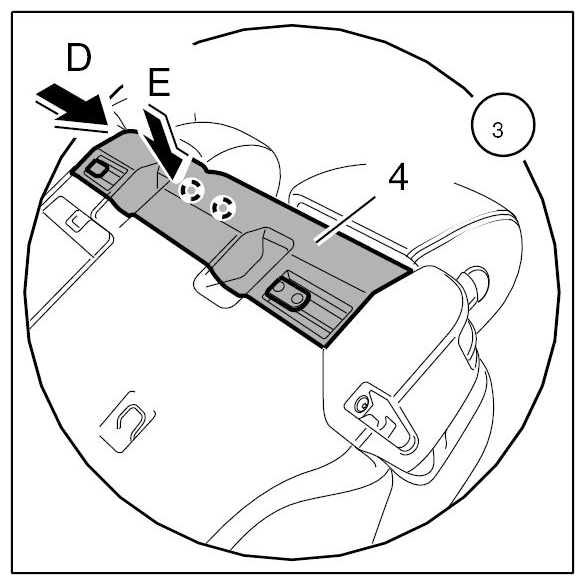

Insert cover for rear backrest -4- -Arrow D- and clip in at the fastening clips -Arrow E- .

Fig 9: Installing Rear Backrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

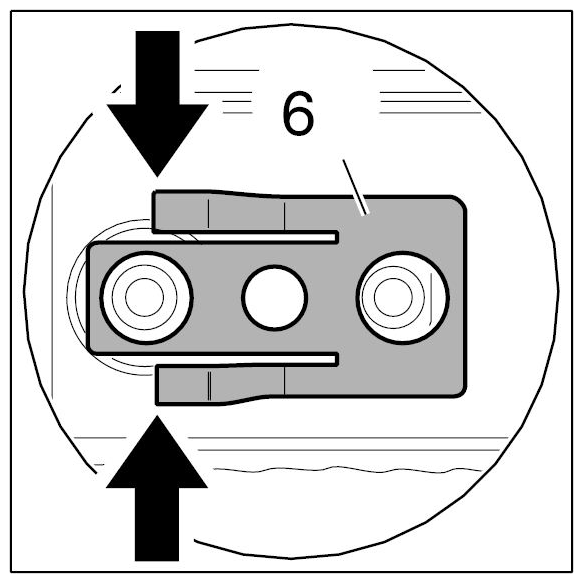

Push on retaining clips -6- - the springs -arrows- must be pointing left, to the centre of the vehicle.

Fig 10: Pushing Rear Backrest Retaining Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

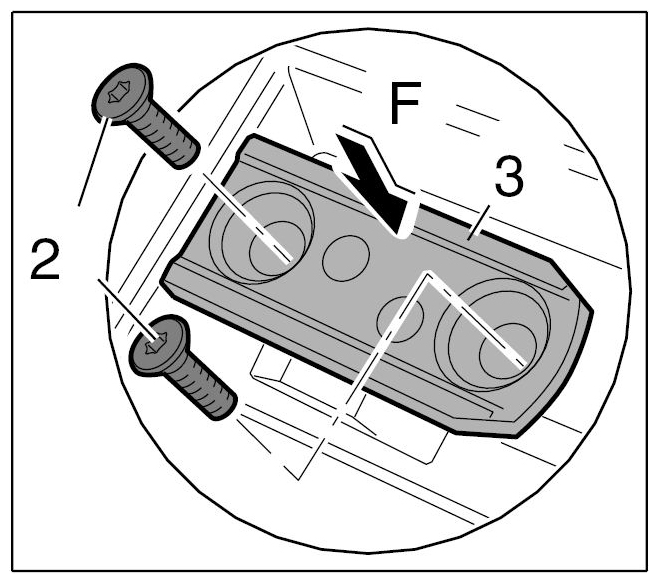

Insert sliding pads for net partition -3- -Arrow F- .

Fig 11: Inserting Sliding Pads For Net Partition
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in and tighten fastening screws -2- . → Tightening torque: 8 Nm (6 ft lbs.)+/-1 Nm (+/-0.5 ft lbs.)

Fig 12: Identifying Sliding Pads For Net Partition Mounting Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

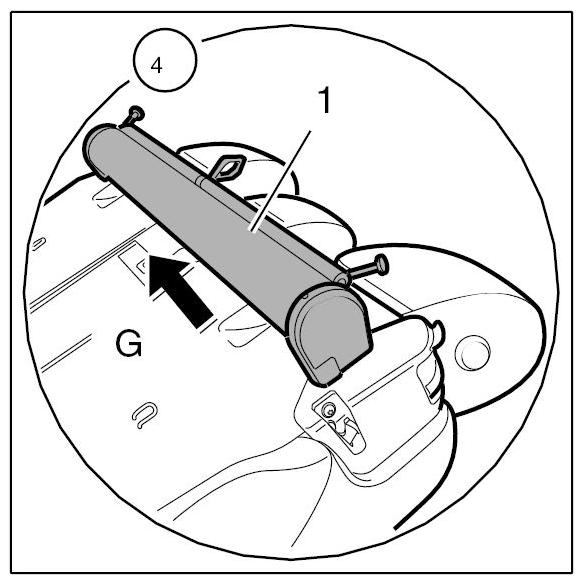

Insert net partition -1- to the left -Arrow G- .

Fig 13: Inserting Rear Backrest Net Partition
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold rear backrest back.
