Removing Rear Seat

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

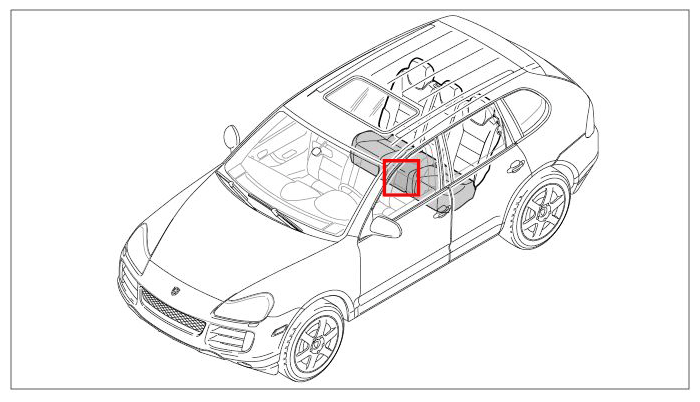

Fig 1: Identifying Rear Seat
G09413762Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release rear seats -1, 2-  and fold them up 90° -arrows-  .

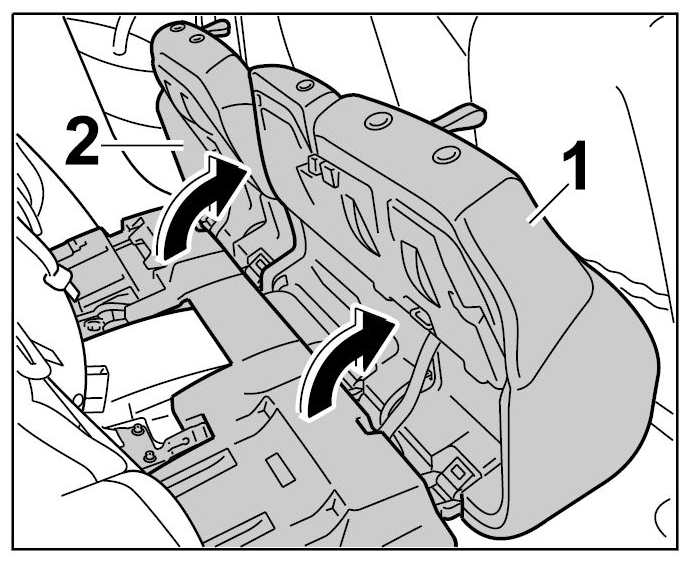

    Fig 2: Releasing Rear Seats
    G09413763Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release connector for heated seats -1-  (-arrows A-  ) and pull it off -arrow B-  .

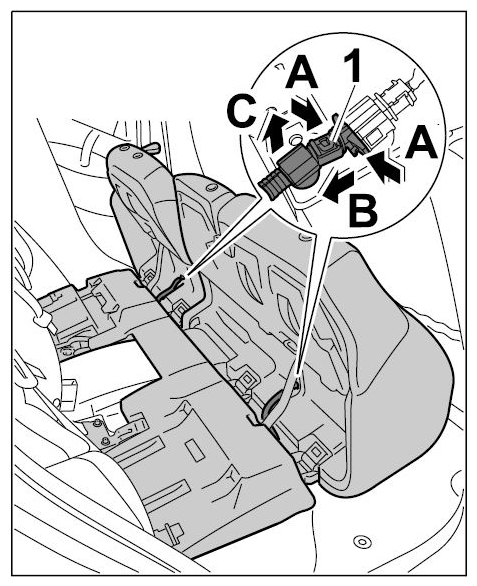

    Fig 3: Releasing Connector For Heated Seats
    G09413764Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unclip connector -1-  (-arrow C-  ).
  4. Unscrew fastening screws -3-  (-arrows-  ).

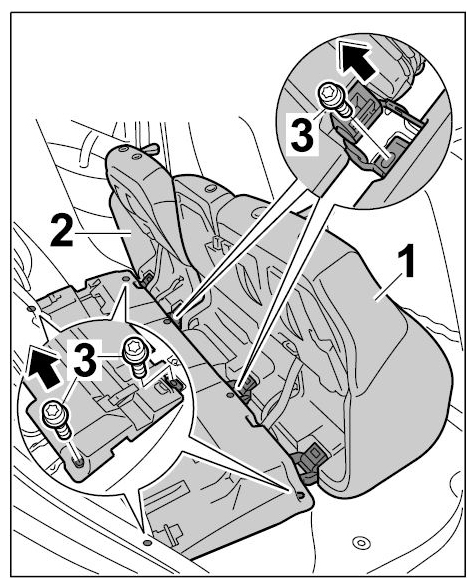

    Fig 4: Removing Rear Seat
    G09413765Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Fold rear seats -1, 2-  back and remove them sideways from the vehicle.
