Removing Bushing For Centre Bearing

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

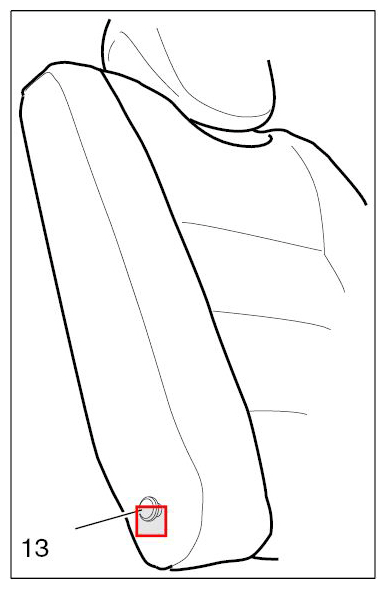

Fig 1: Identifying Centre Bearing Bushing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

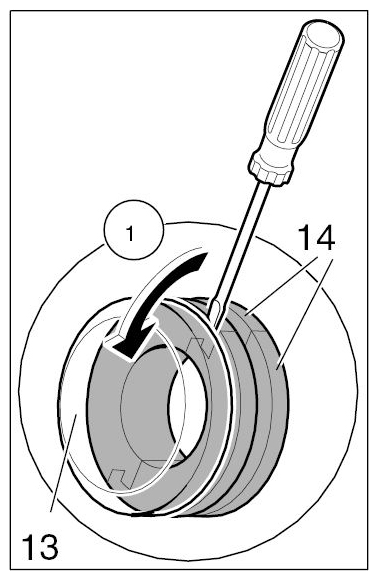

At the joint of bearing shells -14- , insert a screwdriver between shell and shaft bolt -13- .

Fig 2: Inserting Screwdriver Between Shell And Shaft Bolt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

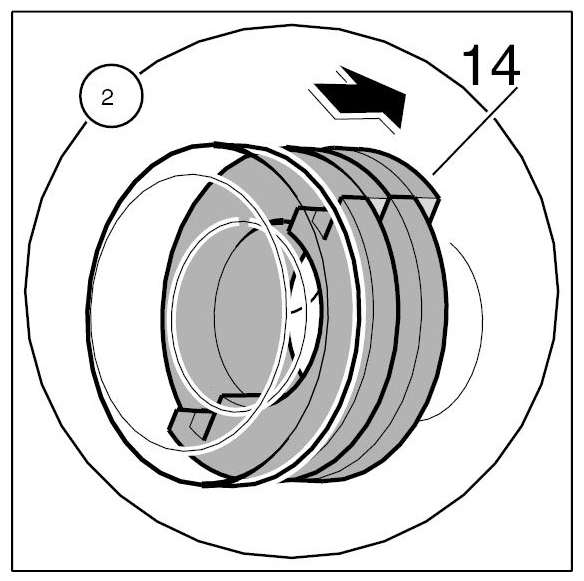

Gently push the bearing shell -14- sideways.

Fig 3: Pushing Bearing Shell
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

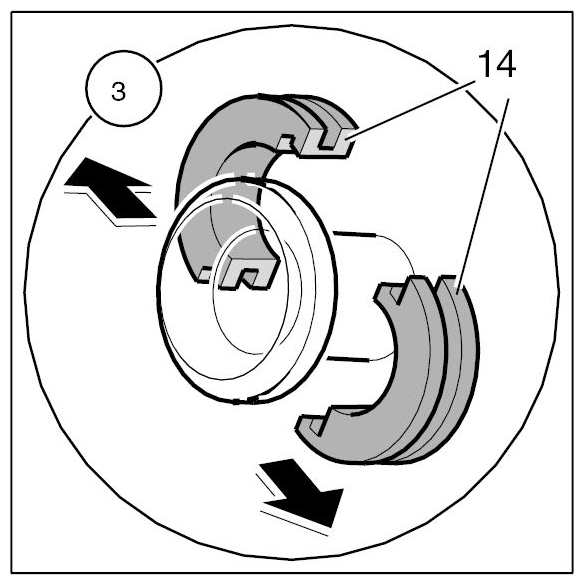

Pull bearing shells -14- apart and remove.

Fig 4: Removing Bearing Shells
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
