Removing Rear Backrest: Notes

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

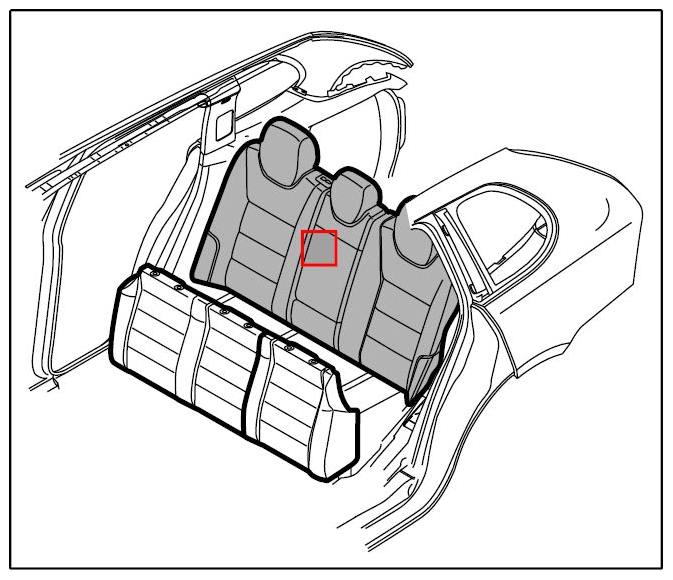

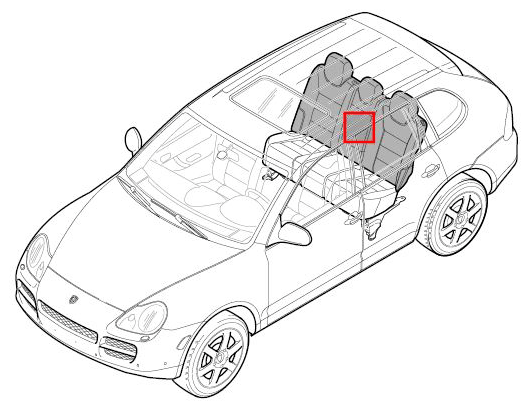

Fig 1: Identifying Rear Backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 2: Identifying Rear Backrest

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unlock back seats -3, 4- and fold forward by 90°.

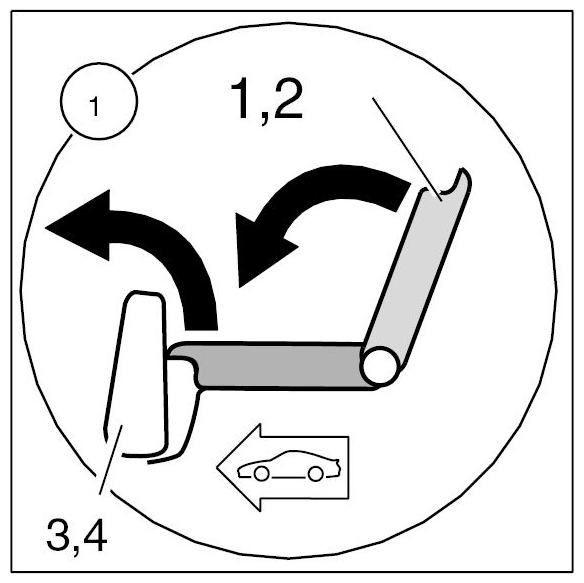

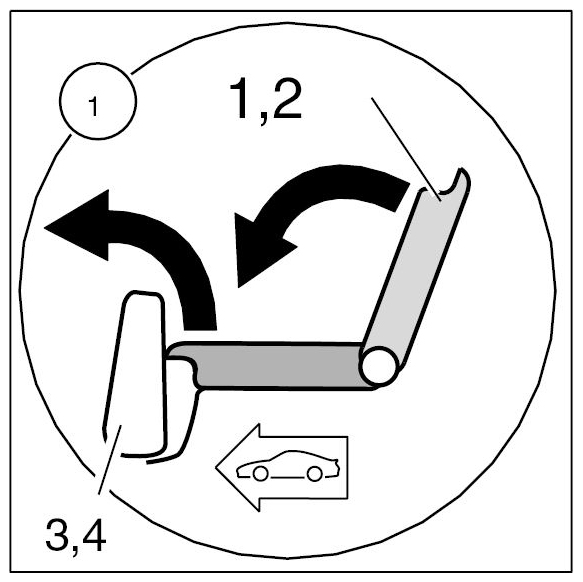

Fig 3: Unlocking Back Seats
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Only for 2/3-split folding backrest: To undo the belt fitting unscrew the fastening screw -5- and lay seat belt mount -6- to one side.

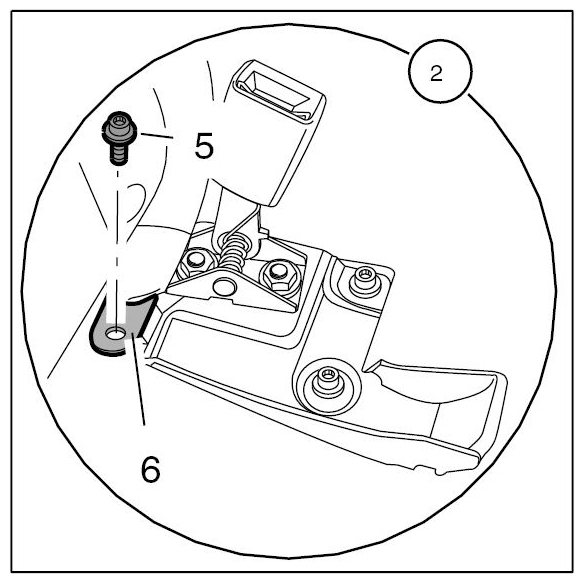

Fig 4: Identifying Lay Seat Belt Mount And Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Only for vehicles with heated seats: Release seat heating plug connection -7- -arrow A- and disconnect -arrows B- .

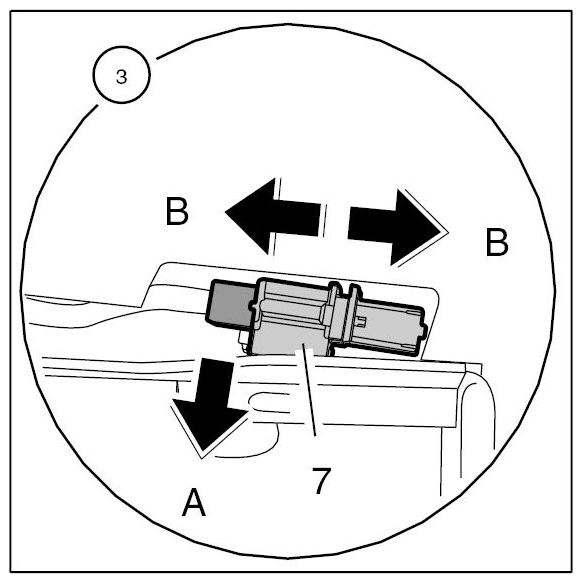

Fig 5: Releasing Seat Heating Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold backrest to the front.
1. 4.1. Remove rear headrests, unlock backrests -1, 2- and fold fully forward.

  Fig 6: Removing Rear Headrest
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove safety bracket.
1. 5.1. Unscrew fastening screw -8- for safety bracket -9- .
2. 5.2. Remove safety bracket -9- .

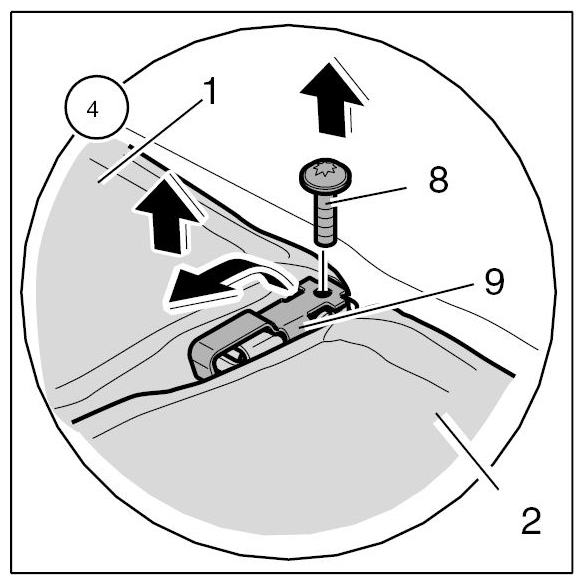

  Fig 7: Removing Safety Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold backrest -1, 2- upwards 45°.

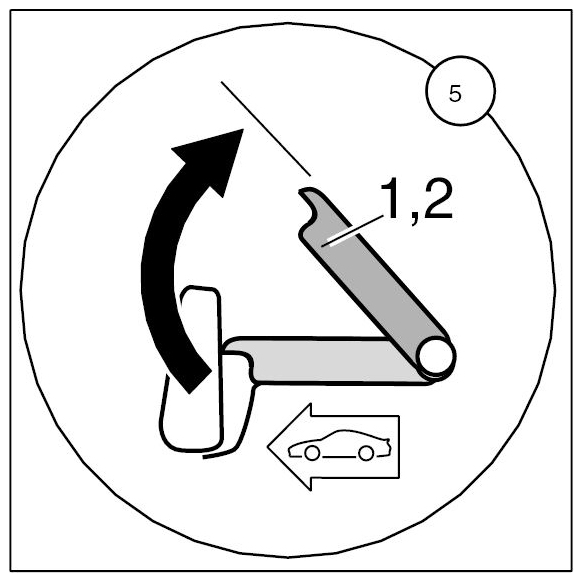

Fig 8: Folding Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disengage backrest -1, 2- from centre bearing in -direction of arrow- .

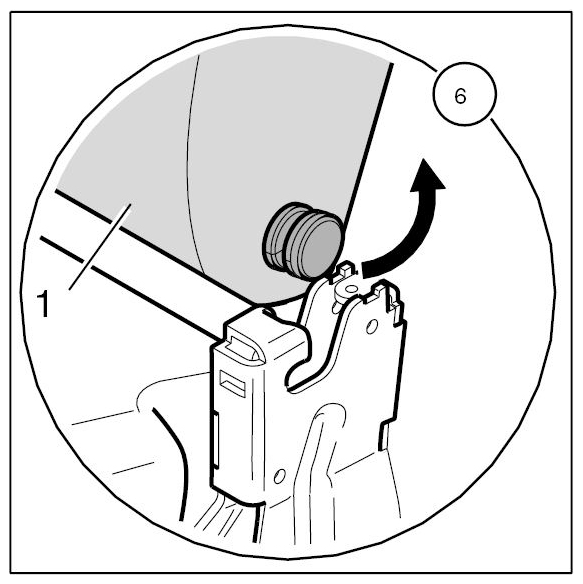

Fig 9: Disengaging Backrest From Center Bearing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove backrest -1, 2- at outer shaft bolt -10- .
Information

Make sure that the bearing sleeve -11- does not become loose and tilt.

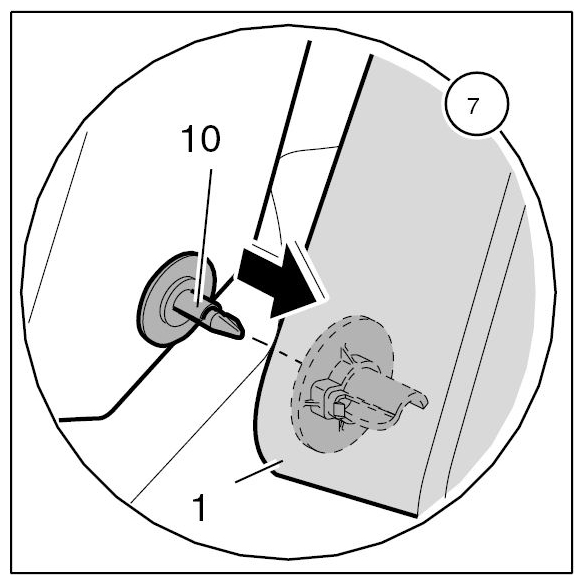

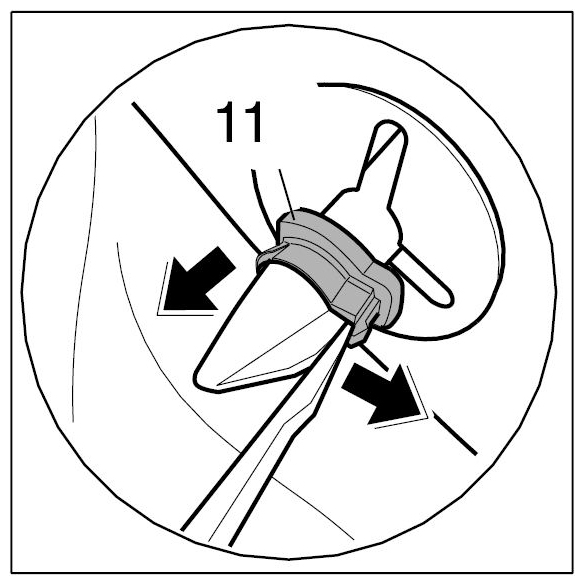

Fig 10: Removing Backrest At Outer Shaft Bolt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 11: Removing Backrest At Outer Shaft Bolt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
