Installing Bushing For Centre Bearing

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

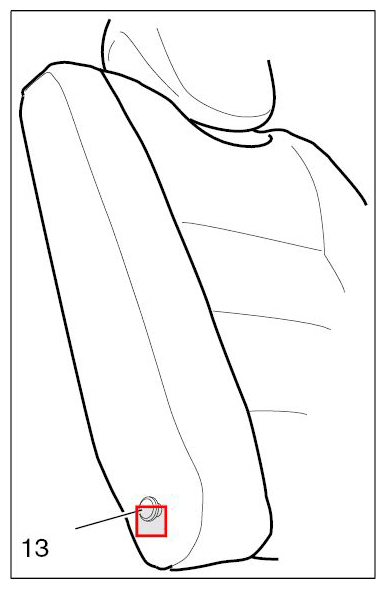

Fig 1: Identifying Rear Backrest Centre Bearing Bushing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clip in bearing shells. Place both bearing shells -14- on the shaft bolt -13- .

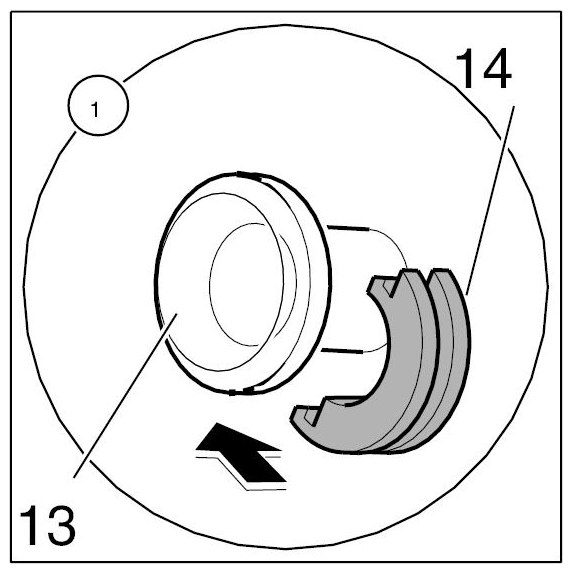

Fig 2: Installing Bearing Shells On Shaft Bolt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press together both bearing shells -14- until the locking lugs of the bearing shells are felt to snap together.

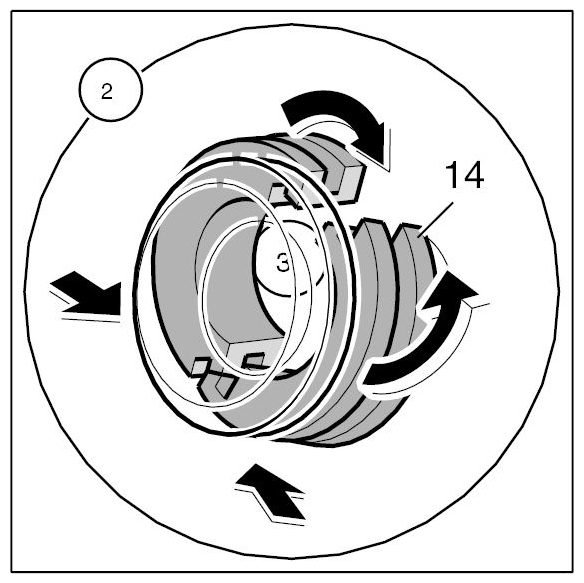

Fig 3: Pressing Bearing Shells
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
