Removing Cover For Backrest

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

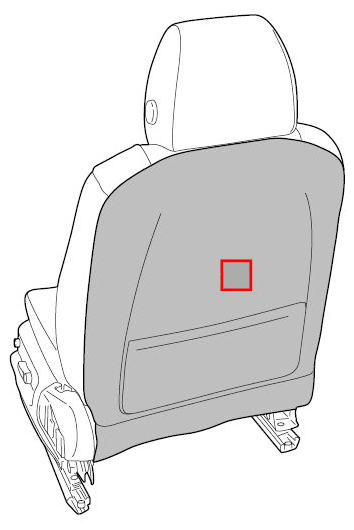

Fig 1: Identifying Backrest Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pull plastic strips on seat frame forwards and disengage -Arrow A- .

Fig 2: Disengaging Seat Frame Plastic Strips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disengage rubber strap on inside -Arrow B- of seat frame.

Fig 3: Disengaging Seat Frame Rubber Strap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Using a screwdriver -C- , lever out the clip -D- and remove rubber strap from clip.

Fig 4: Removing Rubber Strap From Clip Using Screwdriver
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

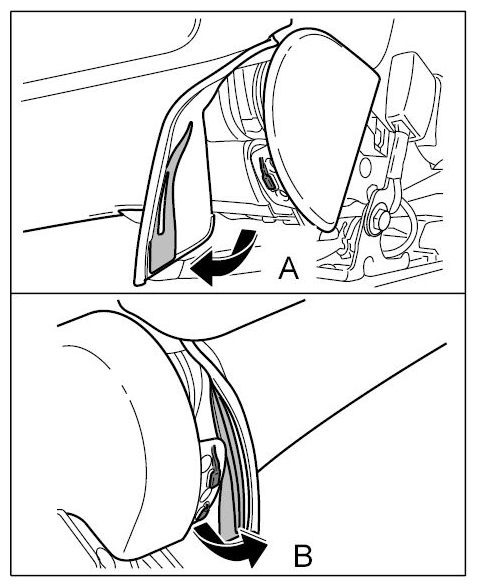

Disengage cover at side trim on inside -Arrow A- and outside -Arrow B- .

Fig 5: Disengaging Cover At Side Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

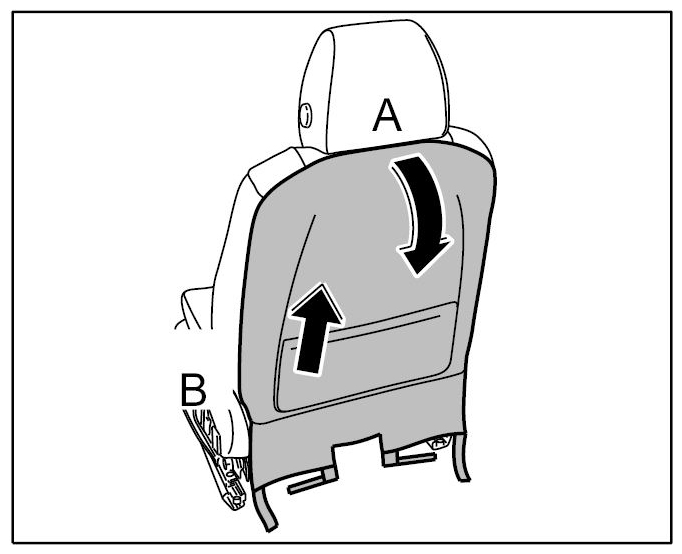

Pull cover rearward at the top to unclip it -Arrow A- and lift it up and out -Arrow B- .

Fig 6: Pulling Rearward Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
