Removing Front Seat Frame

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

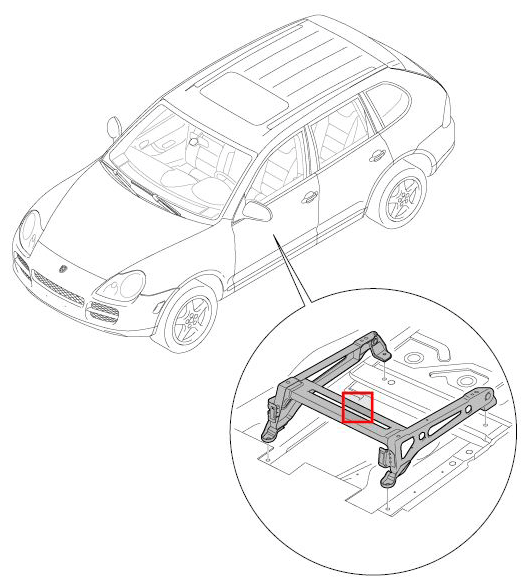

Fig 1: Identifying Seat Frame Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

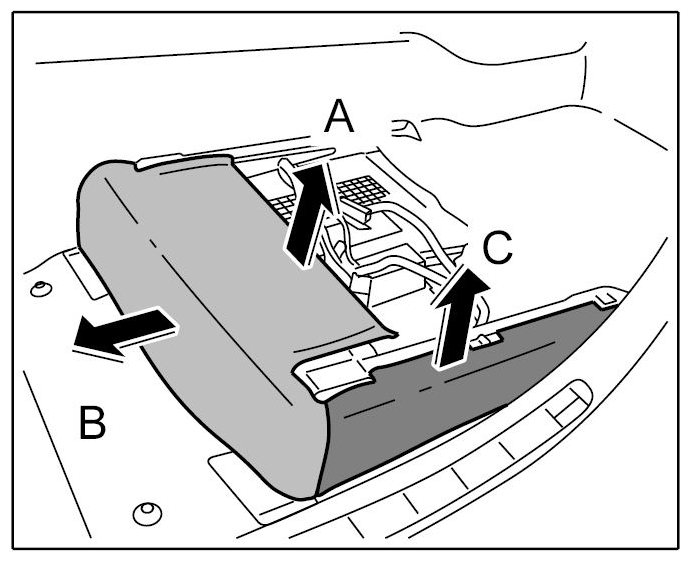

Lift front trim at the rear -arrow A- , then unclip and remove it -arrow B- .

Fig 2: Removing Seat Frame Trim Panels
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip and remove side trim -arrow C- .

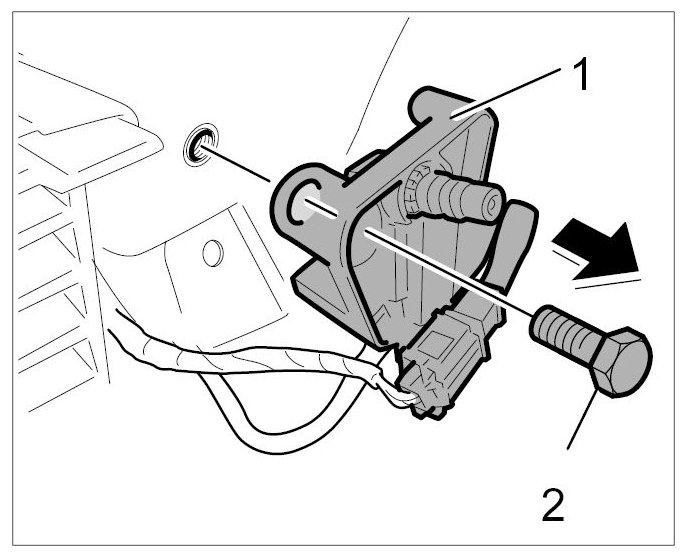

Remove compressor connection.

Fig 3: Removing Compressor Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

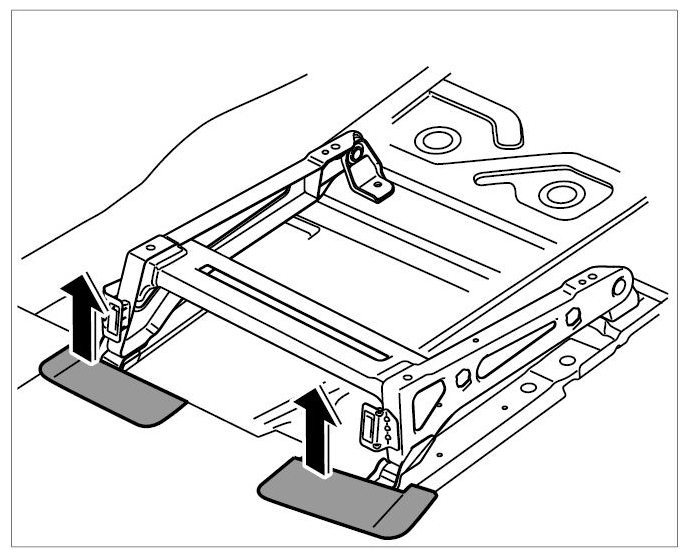

Unclip the two caps -arrows- .

Fig 4: Removing Caps On Threaded Joints For Seat Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

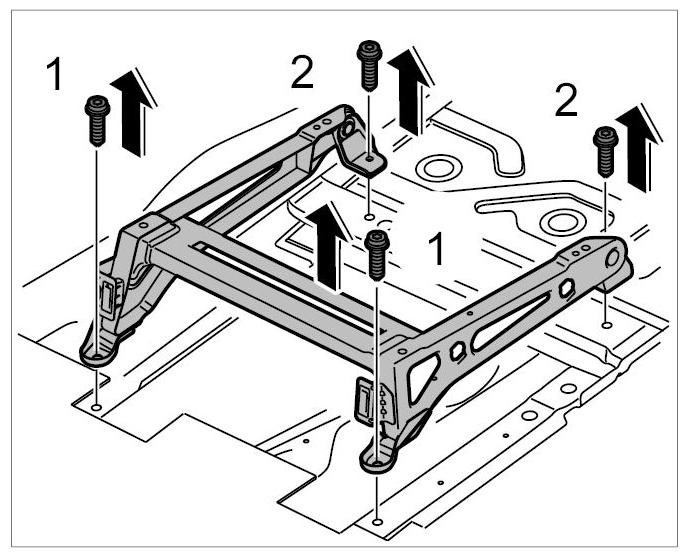

Unscrew front fastening screws -1- .

Fig 5: Removing Front Seat Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew rear fastening screws -2- .
Remove front seat frame.
