Installing Front Seat Frame

→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

→ Calibrate the AWS control unit if the passenger's seat was removed and re-installed, or if the seat bracket or AWS control unit was replaced.

→ Do not loosen the safety screws on the AWS sensors or seat frame.

→ Only replace retainer plate for seat adjustment motor on vehicles without AWS sensors.

→ Always replace the retainer plate together with the seat frame on vehicles with an AWS sensor.

Information

Calibration applies only for vehicles of MY '06 with country equipment (USA, Canada, Mexico).

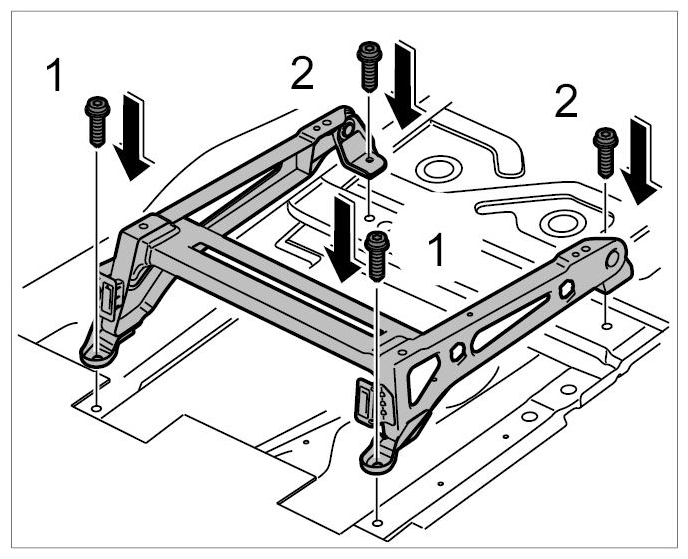

1. Place front seat frame into position.
2. Screw in rear fastening screws -2-  .
   Fig 1: Installing Front Seat Frame

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Screw in front fastening screws -1-  .
4. Tighten fastening screws -1 and 2-  to the specified tightening torque. → Tightening torque: 45 Nm (33 ft lbs.)  .

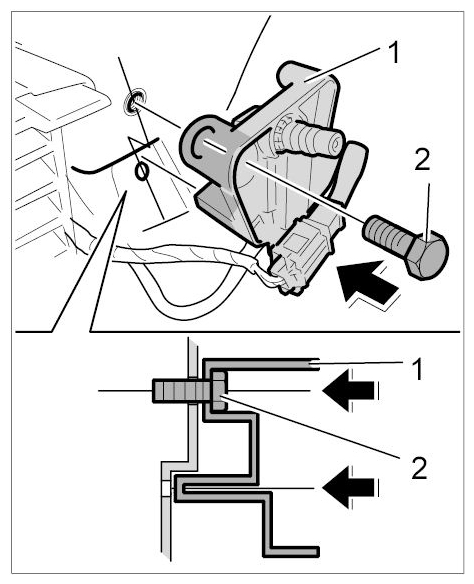

5. Position compressor connection -1-  and tighten fastening screw -2-  to the specified tightening torque. → Tightening torque: 20 Nm (15 ft lbs.)
   Fig 2: Installing Compressor Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

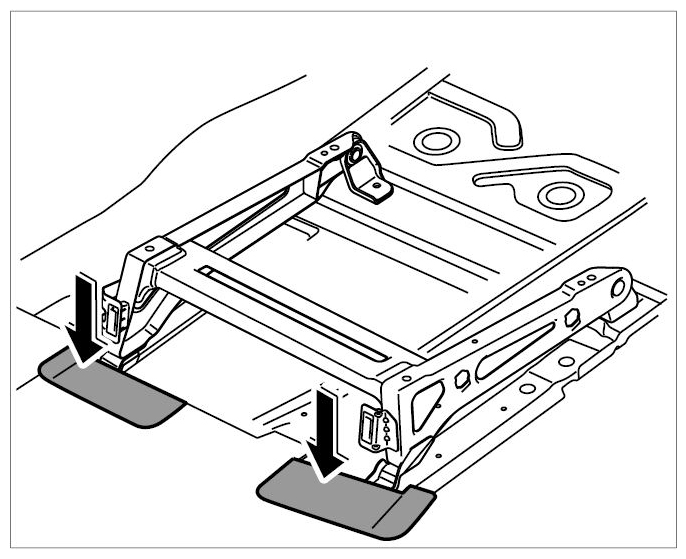

6. Clip in the two caps -arrows-  .
   Fig 3: Fitting Caps On Threaded Joints For Seat Frame

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

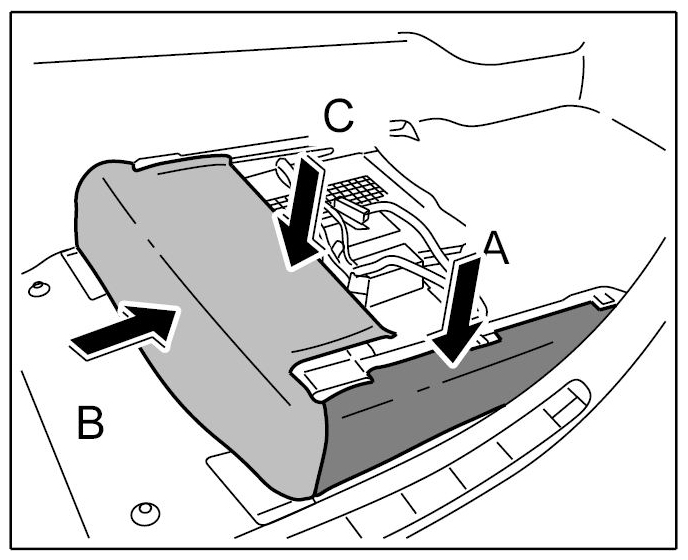

7. Insert side trim -arrow A-  .
   Fig 4: Installing Trim Panels For Front Seat Frame

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Clip front seat trim to the front of the seat frame and to the side trim -arrow B-  until it engages securely.
9. Press the front seat trim down -arrow C-  until the locking hooks engage securely on the seat frame.
