Subsequent Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

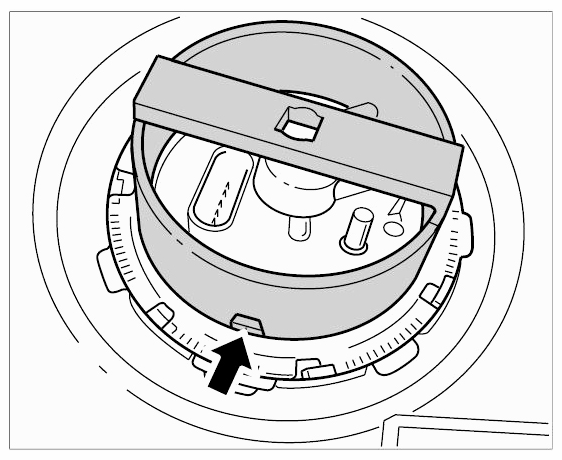

Close the fuel tank. To do so, fit the sheetmetal ring and tighten using the key T10202 . Caps → Tightening torque: 140 Nm

Fig 1: Locating Fuel Tank Caps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

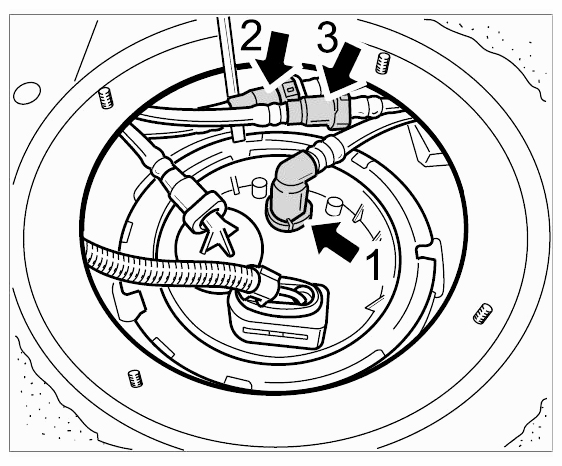

Fit all connections (fuel lines, ventilation tubes and electric connectors).

Fig 2: Locating Fuel Lines, Ventilation Tubes And Electric Plugs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

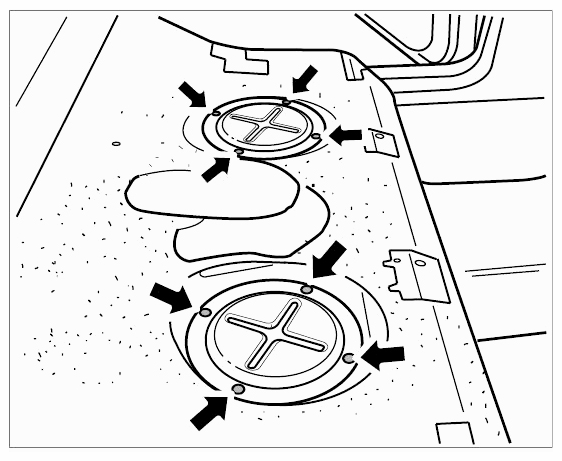

Fit the caps. Then tighten the fastening nuts on each cap. → Tightening torque: 10 Nm (7.5 ftlb.) Refit carpeted floor and fix in place with double-sided adhesive tape.

Fig 3: Locating Fastening Nuts On Caps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

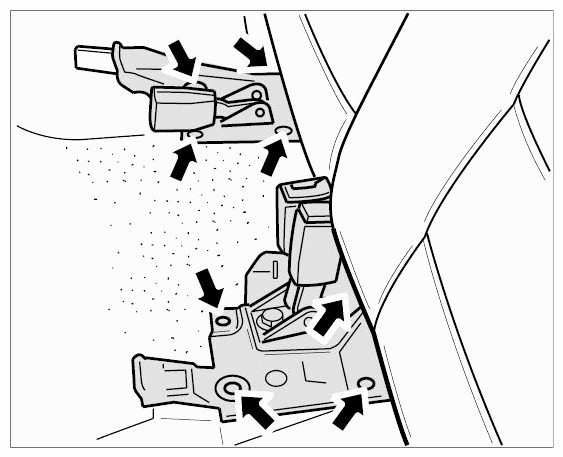

Tighten the mounting plates for the seat-belt buckles. Always use new fastening screws. For tightening torques, see → WM 692519 REMOVING AND INSTALLING REAR BELT LOCK

Fig 4: Locating Seat-Belt Buckles Retaining Brackets Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold rear seat down again.
