Removing Right Fuel Pump

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

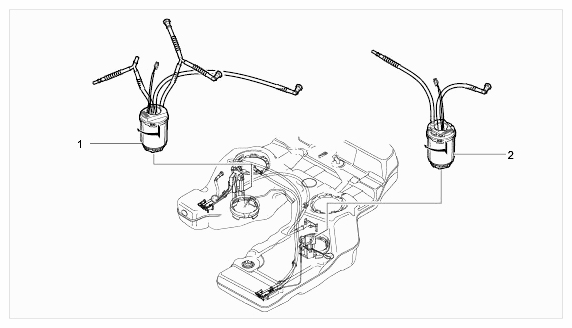

Fig 1: Identifying Right And Left Fuel Pump

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right fuel pump (arrow shows direction of rotation for fitting)
Left fuel pump (arrow shows direction of rotation for fitting)

Disconnect the electric connectors and plug connections for the fuel lines on the right connection unit -1- . Then remove the connection unit (pressure regulator).

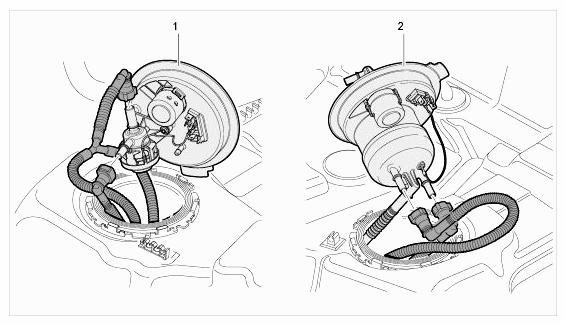

Fig 2: Identifying Left And Right Connection Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Right connection unit with pressure regulator
2. Left connection unit with fuel filter

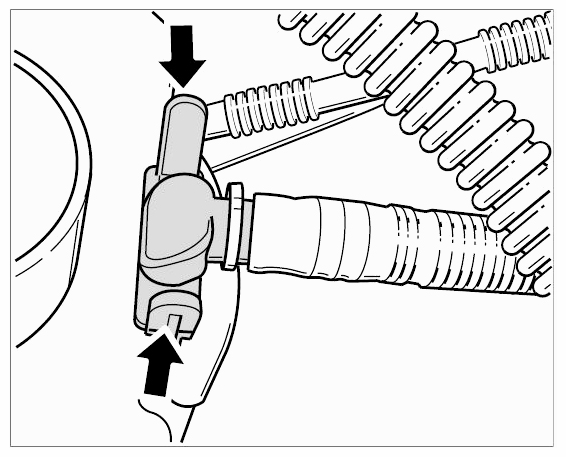

Disconnect the sucking jet pump at the fuel pump. To do this, press on the left and right and pull off the connection.

Fig 3: Disconnecting Sucking Jet Pump At Fuel Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect the hose for the right fuel pump at the Y-piece.

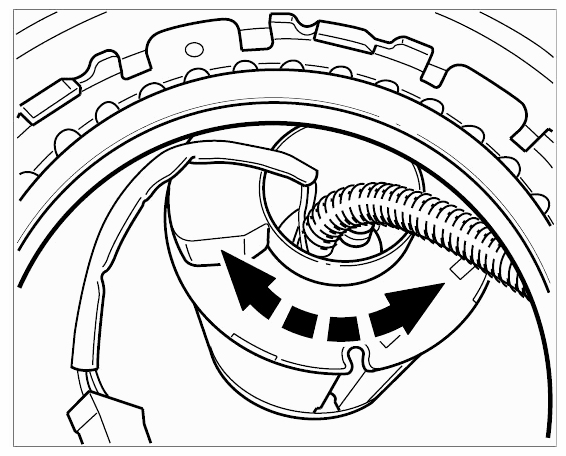

Turn the pump approx. 90° to the left until it disengages at the tank floor. Remove the fuel pump from the tank.

Fig 4: Turning Fuel Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
